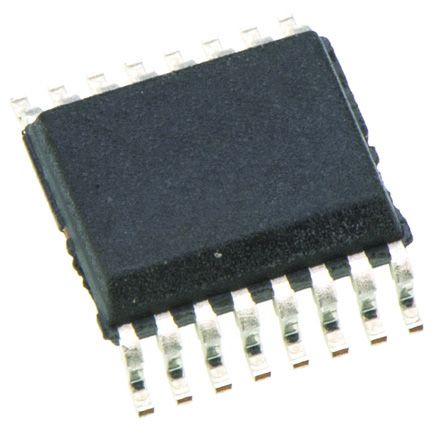

MAX3221EIDB
| Manufacturer | |
| Description | Single Transmitter/Receiver RS-232 16-Pin SSOP Tube IC RS232 3V-5.5V DRVR 16-SSOP RS-232 Interface IC RS-232 Line Driver/Receiver IC, RS232 3V-5.5V DRVR 16-SSOP 3-V to 5.5-V Single-Channel RS-232 Line Driver/Receiver Interface IC RS232 SSOP-16, MAX3221, MAX3221EIDB, Texas Instruments Texas Instruments 250kbps 线路收发器, RS-232接口, 3.3 V、5 V, 16针 SSOP封装 |
| Category |
商业参数
| 产品类别 | RS-232 Interface IC | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 80 | 标准封装名称 | SSOP |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 85423190 |
| 零件状态 | ACTIVE | 抗辐射加固 | No |
| IEC 61000-4-2 | IEC-61000-4-2 SUPPORT | ESD保护 | 15 |
电气参数
| 数据速率 | 250 Kbps | 接口 | EIA/TIA-232-F|RS-232|V.28 |
| 驱动类型 | 3-State | 输入信号 | Single-Ended |
| 信号类型 | Single-Ended | 输入功率 | Single |
| 数据速率（最大） | Point-to-Point | 输出电流 | 1 mA |
| 供电电压 | 3.3|5 V | 供电类型 | Single |
| 接收器迟滞 | 500mV | 输入偏置电流 | 1 |
| 最大额定电流 | Catalog | 逻辑电压 - VIL, VIH | 3.3 |
| 电源电压范围（典型） | Not Required V | 共模瞬态抗扰度（最小） | Industrial |
机械参数
| 宽度 | 5.6(Max) | 重量 | 0.004536 oz |
| 包装方式 | Tube | 封装体颜色 | :SSOP |
| 引脚样式 | Gull-wing | 端接方式 | :SMD |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :16 | 封装形式 | 16SSOP |
| 冷却的封装 | SSOP | 材料表面处理 | :MSL 1 - Unlimited |
| 总长度 | 6.5(Max) | 包装数量 | SSOP |
| 位数 | 16 | 外壳尺寸-插件 | 2(Max) - 0.05(Min) |
| 供应商器件封装 | 16-SSOP | ||
产品信息
| 类型 | Transceiver | 双工模式 | Full |
| 系列 | MAX3221E | 已删除 | Compliant |
| 功能 | Line Transmitter/Receiver | 协议 | RS232 |
| 软件 | SLLS686A | 基本单元 | :3221 |
| 通信接口 | RS-232 | 图案编号 | Y |
| 驱动器数量 | :1 | 使用的IC/零件 | View |
| 接收器数量 | 1 | 印刷电路板数量 | 16 |
| 发射器数量 | 1 | 驱动器/接收器数量 | 1/1 |
| 发射器/接收器数量 | 1 | ||
环境参数
| 测试温度 | -40 to 85 | 工作温度 | -40°C ~ 85°C |
| 温升功耗 | Auto-Powerdown | ||
