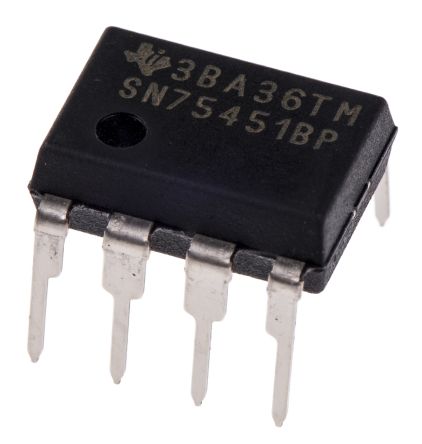

SN75451BP
| Manufacturer | |
| Description | Pref DRVR Dual 4.75V to 5.25V 1000mW 8-Pin PDIP Tube Peripheral Drivers & Components - PCIs Dual Hi Spd Periph IC DUAL PERIPHERAL DRIVER 8-DIP Dual peripheral driver,SN75451BP DIP8 IC, DRIVER, PERIPHERAL, 75451, DIP8 Dual Very-High Speed, High-Current Peripheral Drivers Driver IC DIL-8, SN75451, SN75451BP, Texas Instruments 双 设备驱动器, 8针 PDIP封装 Buffers & Line Drivers Dual Hi Spd Periph |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Peripheral Drivers & Components - PCIs | Standard Package | Rail / Tube |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85423190 | Part Status | ACTIVE |
| Rad Hardened | No | ||
Electrical
| Delay Time | 35ns | Input Type | AND |
| Power - Rated | 1 W | Voltage Rating | 5.5 V |
| Delay Time - ON | 8 ns | Current - Output | 65 mA |
| Current - Supply | 10 mA | Delay Time - OFF | 12 ns |
| Voltage - Supply | 4.75 to 5.25 V | Number of Outputs | 2 |
| Switching Voltage | 20 | Voltage - Output 4 | 250 |
| Current Rating (Max) | Catalog | Current - Peak Output | 500 |
| Voltage - Input (Min) | 5.5 V | Power Dissipation (Max) | 1000 mW |
| Delay Time - Propagation | 25 ns | Current - Off State (Max) | 100 |
| Current - Output / Channel | 400 | Current - Peak Pulse (10/1000us) | 500mA |
| Propagation Delay tpLH / tpHL (Max) | 25 ns | ||
Mechanical
| Width | 6.35mm | Height | 4.57mm |
| Length | 9.81mm | Weight | 0.015535 oz |
| Packaging | Tube | Case Color | :DIP |
| Termination | :Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :8 |
| Package / Case | 8PDIP | Package Cooled | PDIP |
| Material Finish | :- | Package Quantity | 50 | TUBE |
| Size / Dimension | 9.81 x 6.35 x 4.57mm | Number of Positions | 8 |
| Supplier Device Package | 8-PDIP | ||
Product Info
| Type | :Power | Series | SN75451B |
| DELETED | Compliant | Function | :Dual 2-Input AND Gate (Driver) |
| Software | SLRS021B | Base Unit | :75451 |
| Configuration | Low-Side | Number of Drivers | 2 |
| Utilized IC / Part | :SN75451BP | Number of Configurations | 2 |
Environmental
| Temperature Range | :Commercial | Temperature - Test | 0 to 70 |
| Operating Temperature | + 85 C | Operating Temperature - Junction | 70C |
