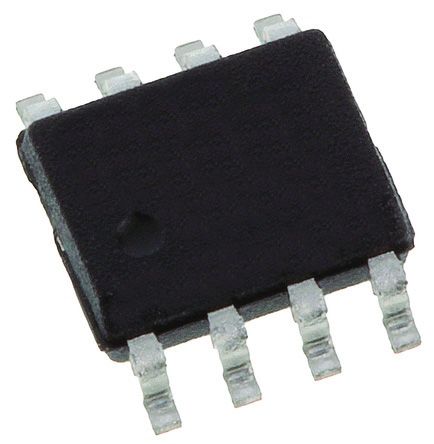

THS4500ID
| Manufacturer | |
| Description | SP Amp DIFF AMP Single ±7.5V/15V 8-Pin SOIC Tube IC OPAMP DIFF 300MHZ 8SOIC Special Purpose Amplifiers High-Speed Fully Differential +/-5 V SP Amp DIFF AMP Single �7.5V/15V 8-Pin SOIC Tube IC, AMP DIFF, SMD, 4500, SOIC8 High-Speed Fully Differential Amplifier, +/-5 V 差分放大器, 5 V, 300MHz, 8引脚 SOIC封装 Differential Amplifiers High-Speed Fully Differential +/-5 V |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-12935-5 | Product Category | Special Purpose Amplifiers |
| Standard Package | Rail / Tube | Factory Pack Quantity | 75 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423300 |
| Part Status | :4500 | Rad Hardened | No |
Electrical
| Gain | 54 dB | PSRR | 72 dB |
| Slew Rate | 2800 V/µs | Output Type | Differential |
| Power - Input | Single/Dual | Power - Rated | 1.02 W |
| Settling Time | 6.3 | Vn at Flatband | 7 |
| CMRR, PSRR (Typ) | 74 dB | Current - Output | 23mA |
| Voltage - Supply | 4.5 V | Power Supply Type | Single|Dual |
| Number of Channels | 1 | Number of Elements | 1 |
| Resistance - Input | 10 MOhm | Current - Input Bias | 4µA |
| Current Rating (Max) | Catalog | Offset Voltage Drift | 10 |
| Number of ADCs / DACs | :1 | Voltage - Input (Min) | 54(Typ) dB |
| Current - Output (Typ) | 120 mA | Gain Bandwidth Product | 300 MHz |
| Rail-to-Rail Operation | No | Power Dissipation (Max) | 1020 mW |
| Current - Quiescent (Iq) | 31 | Current - Input Bias (Max) | 5200 |
| Current - Output / Channel | 120mA | Voltage - Supply (Vcc/Vdd) | 15 |
| Voltage - Supply Span (Typ) | �5 V | Voltage - Input Offset (Max) | :-1mV |
Mechanical
| Width | 4(Max) | Weight | 0.002677 oz |
| Bandwidth | :370MHz | Packaging | Tube |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | -3db Bandwidth | 370MHz |
| Mounting Style | SMD/SMT | Number of Pins | :8 |
| Package / Case | 8SOIC | Package Cooled | SOIC |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 5(Max) |
| Package Quantity | SOIC | Number of Positions | 8 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 8-SOIC |
Product Info
| Type | Differential Amplifier | Series | THS4500 |
| Software | SLOS350F | Base Unit | :4500 |
| Architecture | Voltage Feedback Fully Differential | Amplifier Type | Differential |
| Functional Diagram | alt_slos350f.gif | Number of Circuits | 1 |
| Utilized IC / Part | View | Printed Circuit Board | 8 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
