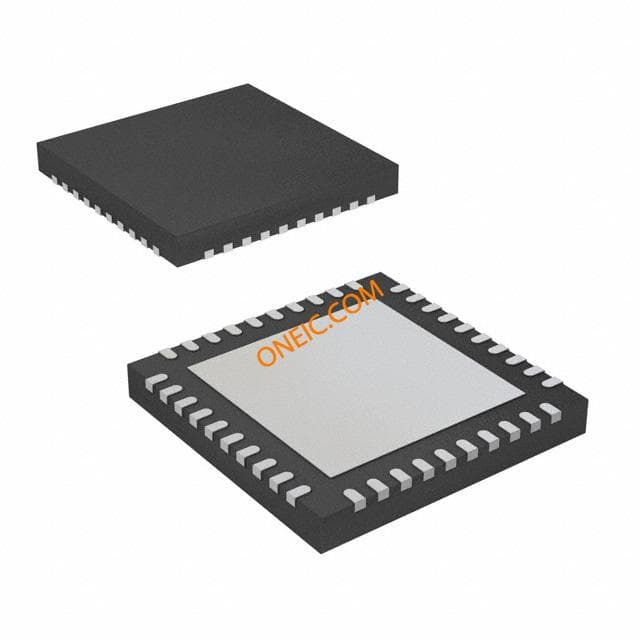

TLV320AIC3107IRSBT
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 296-32390-1 | Product Category | Interface - CODECs |
| Standard Package | 250 | Factory Pack Quantity | 250 |
| Standard Package Name | QFN | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Output | 1 | DAC Type | :Stereo Audio |
| Coil Type | :Stereo | Interface | Serial (I2C) |
| S/N Ratio | 97 | Output Fan | Yes |
| Resolution | 24 bit | Sigma Delta | Yes |
| Input Signal | L R I2S DSP TDM | Data Interface | I²C, Serial |
| Spectral Range | -88 | Voltage Rating | 1.1|1.525|2.7 |
| Data Rate (Max) | 96 kSPs | Number of DAC's | 2 |
| Number of Inputs | :7 | Voltage - Supply | 1.8/3.3/3.6 V |
| Distortion Rating | -84 | Power Supply Type | Analog|Digital |
| Resolution (Bits) | 24 b | Number of Channels | :6 |
| Power - Peak Pulse | 1 | Sampling Frequency | :96kSPS |
| Current Rating (Max) | Catalog | Number of ADCs / DACs | 2 |
| Voltage - Supply (Min) | 1.1/1.525/2.7 V | Power - Average Forward | 14 |
| Voltage - Supply, Analog | 2.7 V ~ 3.6 V | Voltage - Supply, Digital | 1.525 V ~ 1.95 V |
| Sampling Rate (Per Second) | 96 KSPS | S/N Ratio, ADCs / DACs (db) Typ | 92 / 96 |
| Dynamic Range, ADCs / DACs (db) Typ | 91 / 92 | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 5 | Weight | 0.001929 oz |
| Packaging | Tape and Reel | Lead Style | No Lead |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :40 |
| Package / Case | 40-WFQFN Exposed Pad | Package Cooled | WQFN EP |
| Material Finish | :MSL 2 - 1 year | Length - Overall | 5 |
| Package Quantity | WQFN EP | Number of Positions | 40 |
| Shell Size - Insert | 0.75 | Supplier Device Package | 40-WQFN (5x5) |
Product Info
| Type | PCM | Series | TLV320AIC3107 |
| Features | Mono 1W Class-D 3D EQ Matrix Mixing PLL HS detect and LP low-impedance Bypass | Software | SLOS545D |
| Amplifier Type | Class-D | Control Interface | I2C |
| Functional Diagram | fbd_slos545d.gif | Utilized IC / Part | View |
| Printed Circuit Board | 40 | Number of Inputs and Type | 7 / 6 |
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40°C ~ 85°C |
| Operating Temperature - Junction | 85C | ||
