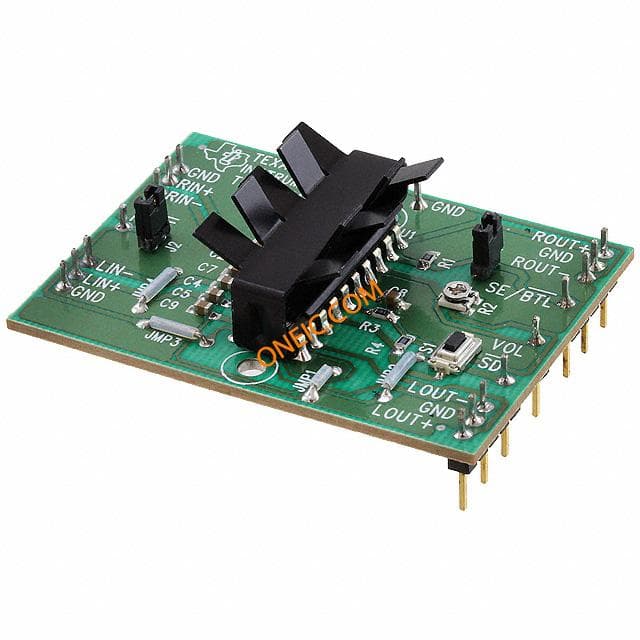

TPA6021A4N
| Manufacturer | |
| Description | Audio Amp Headphone/Speaker 2-CH Stereo 2W Class-AB 20-Pin PDIP Tube IC AMP AUDIO PWR 2W STER 20DIP Audio Amplifiers Stereo Class-AB w/Ster Hdphn Drive IC, AMP AUDIO PWR 2W STER 20DIP IC, AUDIO POWER AMP, CLASS AB, 2W, DIP20 Stereo, Class-AB Audio Amplifier with Volume Control and Stereo Headphone Drive |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Class-AB | Other Names | 296-18249-5 |
| Product Category | Audio Amplifiers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 20 | Standard Package Name | PDIP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| PSRR | 70 dB | Noise | 0.8@8Ohm@1W % |
| Channels | Stereo | Impedance | 4 Ohms |
| Output Type | 2-Channel Stereo | Input Signal | Differential |
| Output Power | 2 W | Output Signal | Differential|Single |
| Power - Input | Single | Power - Rated | 1.8 W |
| Power - Output | :2W | Current - Output | 7.5 mA |
| Current - Supply | 9 mA | Voltage - Supply | 4 V |
| Distortion Rating | 0.8 | Power Supply Type | Single |
| Number of Channels | :2 | Rail-to-Rail Operation | No |
| Power Dissipation (Max) | 1800 mW | Voltage - Supply Span (Typ) | Not Required V |
| Max Output Power x Channels @ Load | 2W x 2 @ 4 Ohm | ||
Mechanical
| Width | 6.6(Max) | Weight | 0.042297 oz |
| Packaging | Tube | Lead Style | Through Hole |
| Termination | :Through Hole | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Number of Pins | :20 |
| Package / Case | 20PDIP | Package Cooled | PDIP |
| Material Finish | :- | Length - Overall | 26.92(Max) |
| Package Quantity | PDIP | Number of Positions | 20 |
| Shell Size - Insert | 5.08(Max) - 0.51(Min) | Supplier Device Package | 20-PDIP |
| Load Side Wire/Stud Size | 4 Ohms | ||
Product Info
| Type | Class AB | Series | TPA6021A4 |
| Features | Differential Inputs, Mute, Shutdown, Thermal Protection, Volume Control | Function | Headphone/Speaker |
| Software | SLOS465 | Base Unit | :6021 |
| Amplifier Type | Class-AB | Utilized IC / Part | View |
| Channels per Circuit | Stereo | Control / Drive Type | DC Volume Control |
| Other Specifications | :0.8% @ 1W, 8ohm, VDD=5V | Output Configuration | 2-Channel Stereo |
| Printed Circuit Board | 20 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
Documents & Media
PDF Document
PDF Document
Online Document
PDF Document
Online Document
PDF Document
Online Document
