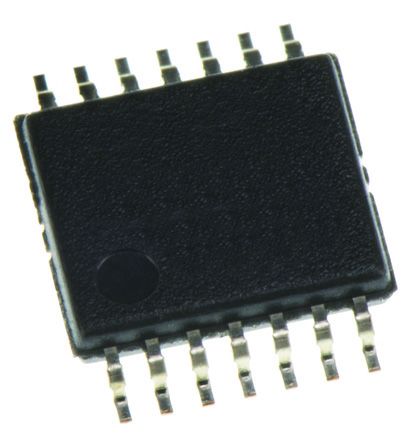

TPS23753PW
| Manufacturer | |
| Description | IEEE 802.3-2005 PoE Interface and Isolated Converter Controller 14-Pin TSSOP Tube POE Controller 0V 57V 13W 14-Pin TSSOP IC IEEE 802.3-2005 POE 14-TSSOP Hot Swap Voltage Controllers Interface and Iso Cnvrtr and Cntrlr IC, POE & DC/DC CONTROLLER 57V, 14-TSSOP POE, IEEE 802.3-2005, 12V, 14TSSOP IEEE 802.3-2005 PoE Interface and Isolated Converter and Controller 以太网控制器, 14针 TSSOP封装 Power Switch ICs - POE / LAN Interface and Iso Cnvrtr and Cntrlr |
| Category |
Business
| Product | PoE / LAN Solutions | Other Names | 296-23547-5 |
| Product Category | Hot Swap Voltage Controllers | Standard Package | Rail / Tube |
| Factory Pack Quantity | 90 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | IEEE802.3at |
| Tariff No | 85423190 | Part Status | ACTIVE |
| Rad Hardened | No | Fault Protection | Auto Retry |
Electrical
| Current | 405 | Frequency | :248kHz |
| PoE Ports | 140 | Duty Cycle | :81% |
| Power - Max | 13W | Power Level | 13W |
| Power - Rated | 13 W | Voltage Rating | :57V |
| Current - Output | 580µA | Voltage - Supply | 0 V ~ 57 V |
| Number of Channels | 1 | Current Rating (Max) | 450(Typ) |
| Must Release Voltage | :9V | Frequency - Switching | Programmable Synchronizable |
| Rds On (Max) @ Id, Vgs | 700 | Current - Short Circuit (Isc) | 0.405 A |
| Voltage - Gate Trigger (Vgt) (Max) | 35 | Common Mode Transient Immunity (Min) | Automotive |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 140 | ||
Mechanical
| Width | 4.5(Max) | Weight | 0.002018 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :14 |
| Package / Case | 14TSSOP | Package Cooled | TSSOP |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 5.1(Max) |
| Package Quantity | TSSOP | Number of Positions | 14 |
| Shell Size - Insert | 1.05(Max) | Supplier Device Package | 14-TSSOP |
Product Info
| Type | Controller (PD), DC/DC | Series | TPS23753 |
| Software | SLVS853C | Base Unit | :23753 |
| Pattern Number | Y | Auxiliary Sense | No |
| Functional Diagram | alt_slvs853c.gif | Internal Switch(s) | Both |
| Utilized IC / Part | View | DigiKey Programmable | Yes |
| Printed Circuit Board | 14 | ||
Environmental
| Temperature - Test | -40 to 125 | Operating Temperature | -40 to 125 °C |
| Operating Temperature - Junction | 125C | ||
Documents & Media
Similar Parts
744728
Wurth Electronics
Inductor Kits & Accessories TI Design Kit DESIGN KIT INDUCTORS FOR TI Wurth Elektronik Power Inductor Inductor Design Kit, 176 Pieces DESIGN-KIT SMD-POWER CHOKES FOR TI Wurth Elektronik 176件 电感器套件, 套件包含功率电感器
7445510
Wurth Electronics Inc

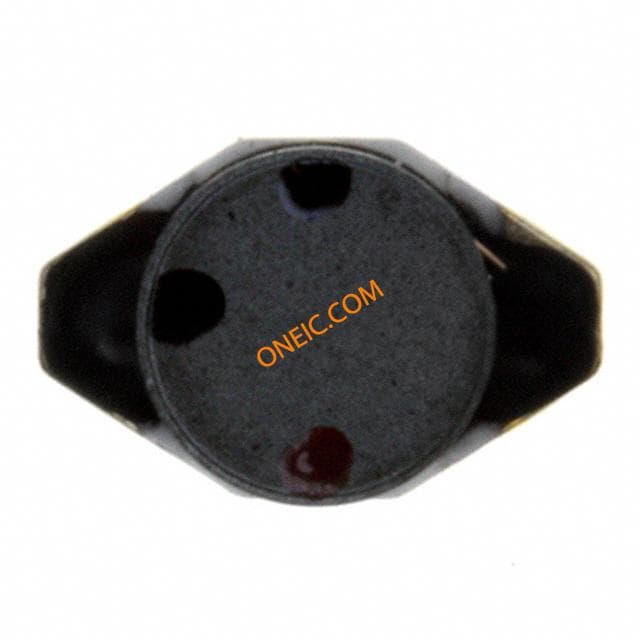

INDUCTOR POWER 10UH 1.2A SMD Power Inductor SMD WE-PD4 S 10.0uH 1.20A CHOKE, SMD, 10UH Wurth WE-PD4 系列 铁氧体芯材 绕线贴片电感器, 10 μH ±20%, 1.2A Idc
7445601
Wurth Electronics Inc

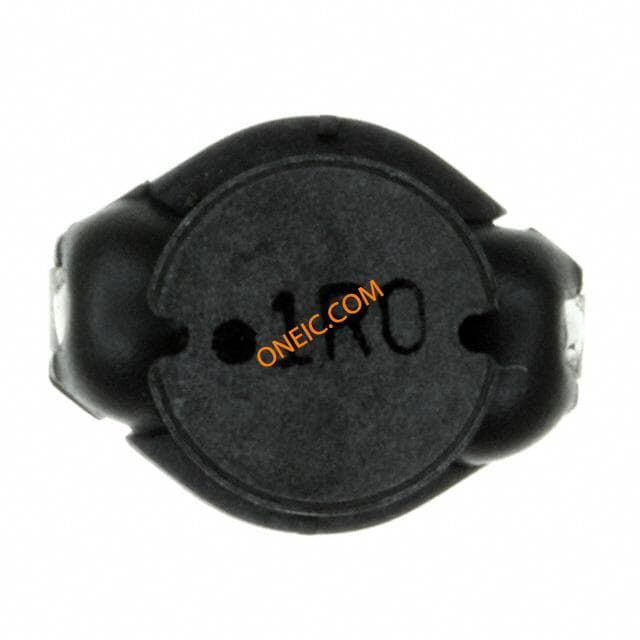

INDUCTOR POWER 1.0UH 8.6A SMD CHOKE, SMD, 1UH
