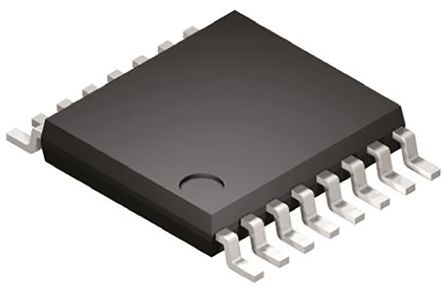

TPS61120PW
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Voltage Regulators | Other Names | 296-13518-5 |
| Product Category | Voltage Regulators - Switching Regulators | Standard Package | Rail / Tube |
| Factory Pack Quantity | 90 | Standard Package Name | TSSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Part Status | ACTIVE | Rad Hardened | No |
Electrical
| Output | 2 | Duty Cycle | 100 |
| Efficiency | 95 % | Output Type | Adjustable |
| Regulator Type | 是 | Voltage Rating | 2.5 to 5.5|0.9 to 5.5 V |
| Line Regulation | 0.6% | Load Regulation | 0.6 % |
| Current - Output | 1.1|0.2(Typ) A | Current - Supply | 40 uA |
| Voltage - Supply | 1.8 to 5.5 V | Number of Outputs | 2 |
| Current - Output 2 | 0.2 | Regulator Topology | Step Up |
| Current - Switching | 1.1 | Switching Regulator | Yes |
| Current Rating (Max) | Catalog | Frequency - Switching | 600 kHz |
| Voltage - Input (Min) | 5.5 V | Voltage - Output (Max) | 5.5 V |
| Current - Quiescent (Iq) | 0.04 | DC Voltage - Input (Min) | 1.8 V |
| Current - Off State (Max) | 0.2 | Voltage Regulation - Load | 0.6 % |
| Voltage - Output (Min/Fixed) | 2.5 V | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 4.4mm | Height | 1.15mm |
| Length | 5mm | Weight | 0.002222 oz |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 16 | Package / Case | 16TSSOP |
| Package Cooled | TSSOP | Length - Overall | 5.1(Max) |
| Package Quantity | TSSOP | Size / Dimension | 5 x 4.4 x 1.15mm |
| Number of Positions | 16 | Shell Size - Insert | 1.05(Max) |
| Supplier Device Package | 16-TSSOP | ||
Product Info
| Type | Step Up | Series | TPS61120 |
| Features | Enable Light Load Efficiency Load Disconnect Power Good | Software | SLVS427D |
| Topology | Boost | Applications | Handheld/Mobile Devices |
| Development Kit | TPS61120EVM-205 | Functional Diagram | fbd_slvs427d.gif |
| Utilized IC / Part | View | Function - Lighting | 上升 |
| Printed Circuit Board | 16 | ||
Environmental
| Temperature - Test | -40 to 85 | Operating Temperature | -40 to 85 °C |
Documents & Media
PDF Document
Similar Parts
Sourcing & traceability
- Datasheet
- TPS61120-22
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
