点击放大查看
TMT 50124C
| Manufacturer | |
| Description | Power Supply, Chassis mount,24Vdc 50W PSU, MODULE, 50W, 24V/2, 1A TRACOPOWER 50W 单输出 嵌入式开关模式电源 SMPS , 85 → 264 V ac, 85 → 370 V dc输入, 24V dc输出, 2.3A输出, 83%效能 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Tariff No | 85044082 | Approval Agency | :EN 60601, IEC 60601 |
Electrical
| Noise | 150mV Pk-Pk | Frequency | :63Hz |
| Efficiency | 83% | Output Type | :Fixed |
| Power - Max | :50W | Power - Rated | 50W |
| Voltage Rating | 85 → 264 V ac, 85 → 370 V dc | Line Regulation | 20mV |
| Load Regulation | 50mV | Current - Output | 2300mA |
| Voltage - Supply | :264V | Number of Outputs | 1 |
| Power Supply Type | :Switch Mode | Voltage - Input (Min) | :85V to 264V |
Mechanical
| Depth | 33.5mm | Width | 64mm |
| Height | :33.5mm | Length | 110mm |
| Weight | 295g | Mounting Type | :Chassis |
| Package Cooled | Encapsulated | ||
Product Info
| Applications | :General Purpose | ||
Environmental
| Operate Time | 180000h | Operating Temperature | -25°C |
| Maximum Temperature Limit | +50°C | ||
Documents & Media
PDF Document
Similar Parts

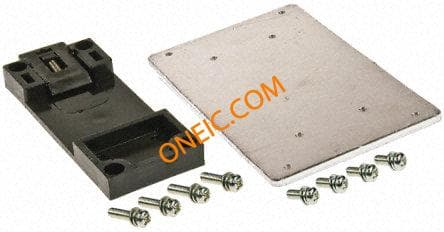

TMT-MK5
TRACOPOWER
DIN-Rail adapter for TMT50 series ADAPTER, TMT50XXXC, DIN TRACOPOWER DIN 导轨安装套件 , 使用于TMT 50xxxC
$126.8400
Details

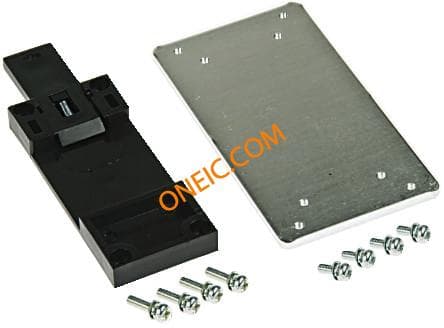

TMT-MK2
