CME375-6
| Manufacturer | |
| Description | Common Mode Filters / Chokes 43.6mH 1.75A E-CORE コモンモード フィルタ /チョーク 43.6mH 1.75A E-CORE INDUCTOR 43.6MH COMMON MODE Common Mode Chokes Dual 43.6mH 1.75A Thru-Hole |
| Category |
对参数有疑问？问 AI 助手
Business
| メーカ | Triad Magnetics | Product Category | Common Mode Filters / Chokes |
| Standard Package | 1 | Factory Pack Quantity | 126 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 1.75A | Tolerance | 10 % |
| Inductance | 43.6 mH | Filter Type | Power Line |
| Resistance - Input | 489 mOhms | DC Resistance (DCR) | 489 mOhm Max |
| Current Rating (Max) | 1.75 A | Resistance - Initial (Ri) (Min) | 0.489 Ohms |
| Current - Supply (Disable) (Max) | 1.75 A | ||
Mechanical

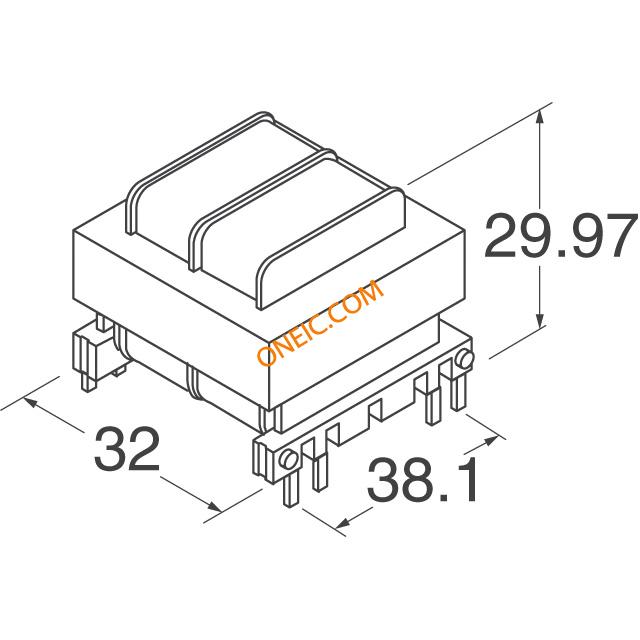

| Size | 32 mm W x 38.1 mm L x 15.24 mm H | Width | 32 mm |
| Weight | 2.560000 oz | Packaging | Bulk |
| End - Size | Radial | Size - Body | 38.1 mm |
| Height (Max) | 15.24 mm | Mounting Type | Through Hole |
| Package / Case | 15.24 mm | Size / Dimension | 32 mm W x 38.1 mm L x 15.24 mm H |
| Termination Style | Radial | ||
Product Info
| Card Standard | コモンモード フィルタ /チョーク | Number of Lines | 2 |
| Number of Units | 126 | ||
