CST306-3T
| Manufacturer | |
| Description | Current Transformers 55mH 25A SENSING CENTER TAPPED TRANSF 55MH CTAP CRNT SENSE Current Transformer 1:200CT 3.75Ohm Prim. DCR 55000uH Prim. 25000mA Prim. 3Term. PC Pin Thru-Hole |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Current Transformers | Factory Pack Quantity | 126 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Ethernet | 2000V µS | Inductance | 55 mH |
| DC Resistance (DCR) | 3.75 Ohm Max | Current Rating (Max) | 25A |
| Turns Ratio - Primary:Secondary | 1 : 200CT | ||
Mechanical

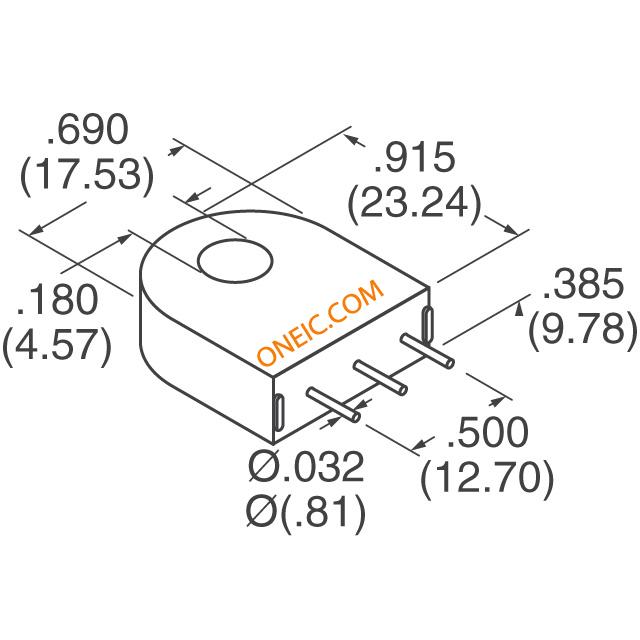

| Size | 17.53mm L x 9.78mm W | Width | 10.16 mm |
| Height | 31.11 mm | Length | 27.3 mm |
| Weight | 0.464000 oz | Mounting Style | Through Hole |
| Transformer Type | Frequency Gate Drive up to 200kHz, Dual Secondary Gate | Termination Style | Radial |
| Maximum Working Height | 23.24mm | ||
Product Info
| Series | CST306 | Output Configuration | Through Hole |
