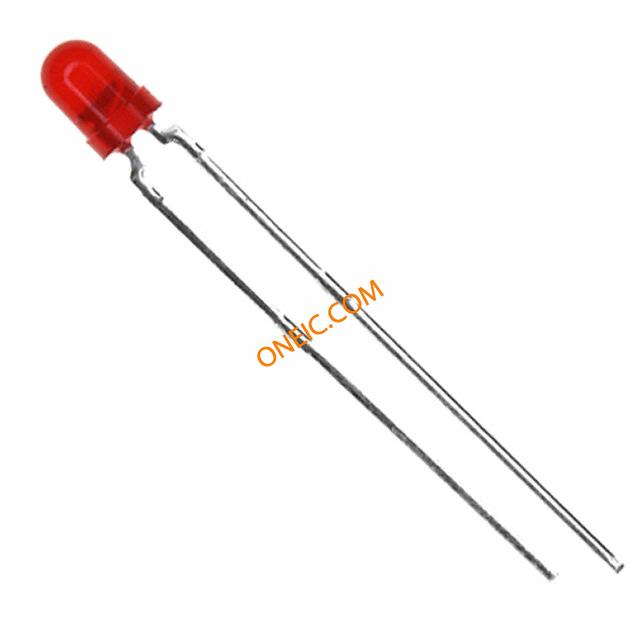

TLHR4400
| Manufacturer | |
| Description | LED Uni-Color Red 635nm 2-Pin T-1 T/R Standard LEDs - Through Hole Red Tinted Diffused LED Uni-Color Red 635nm 2-Pin T-1 3MM RED DIFFUSE 635NM 30° LED 3MM RED 13MCD GAASP ON GAP LED Uni-Color Red 635nm T-1 Lamp; LED;Red;3mcd;3mmDia.;T-1;30mA;2V;635nm;+/-30deg;GaAsP on GaP;15V;100mW LED, 3MM, RED LED;Red;3mcd;3mmDia.;T-1;30mA;2V;635nm;+/-30deg;GaAsPonGaP;15V;100mW Vishay 红色 (625 nm 主波长) LED, , 2 V, 13 mcd, 60 °视角 3mm (T-1) 通孔 |
| Category |
Business
| MOQ | 5000 | Unit Pack | 5000 |
| Other Names | 751-1127 | Product Category | Standard LEDs - Through Hole |
| Standard Package | Bulk | Factory Pack Quantity | 5000 |
| Standard Package Name | T-1 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366190 | Automotive | NO |
| Rad Hardened | No | Leadfree Defin | RoHS-conform |
Electrical
| Lamp Type | :T-1 (3mm) | Optic Size | T-1 |
| Lamp Output | No | Luminous Flux | 13 mcd |
| Power - Rated | 100 W | Sensing Angle | 30° |
| Viewing Angle | 60 ° | Current - Bias | 10mA |
| Current - Output | 10mA | Voltage - Supply | 2.1V |
| Flatness (Lambda) | 635nm | Wavelength - Peak | 635 nm |
| Number of Elements | 1 | Current - Trip (It) | 10 mA |
| LED Forward Current | 10 mA | LED Forward Voltage | 2 V |
| Millicandela Rating | 13mcd | Wavelength - Dominant | 625(Max)nm |
| Power Dissipation (Max) | 100 | Current - DC Forward (If) (Max) | :20mA |
| Current - Peak Pulse (10/1000us) | 30 | Voltage - Gate Trigger (Vgt) (Max) | 15 V |
Mechanical
| Color | Red | Depth | 3.2 mm |
| Shape | Circular | Height | 4.50mm |
| Weight | 0.001 | LED Color | Red |
| Packaging | Bulk | Lead Style | Through Hole |
| Lens Color | Tinted, Diffused | Lens Style | Circular |
| Light Color | Red | Lens Diameter | 2.9 mm x 2.9 mm x 3.5 mm |
| Mounting Type | Through Hole | Mounting Style | Top Mount |
| Number of Pins | 2 | Optic Material | :Through Hole |
| Package / Case | 2T-1 | Package Cooled | T-1 |
| Lens Style/Size | Round with Domed Top, 3mm, T-1 | Material - Core | GaAsP |
| Insulation Color | DIFFUSED | Length - Overall | 3.2 mm |
| Package Quantity | T-1 | Size / Dimension | :3mm / T-1 |
| Diameter - Outside | 3.2 | Illumination Color | Red |
| Number of Positions | 2 | Shell Size - Insert | 4.5 |
Product Info
| Type | Uni-Color | DELETED | Compliant |
| Lens Type | Colored Diffused | Matchcode | TLHR4400 |
| Main Purpose | Standard LED | Number of LEDs | 1 |
| Standard Leadtime | 5 weeks | Other Specifications | 635nm |
| Printed Circuit Board | 2 | ||
Environmental
| Operating Temperature | + 100 C | Luminous Flux @ Current/Temperature | 3 mcd |
