1513460000
| Manufacturer | |
| Description | Conn Shrouded Header HDR 10 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 10POS R/A 5.08MM Weidmuller SL Series 5.08mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination, 15A PIN HEADER, 10POS, 5.08MM |
| Category |
Business
| Other Names | SL5.08/90/10 PBT OG | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 00000000 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 300 V | Current Rating (Max) | 15A |
Mechanical
| Color | Orange | Pitch | 5.08 mm |
| Weight | 0.005 | Packaging | Bulk |
| Termination | Solder | Mounting Type | Through Hole |
| Connector Type | :PCB Terminal Block | Contact Finish | :- |
| Number of Rows | 1 | Contact Material | :- |
| Header Orientation | 90°, Right Angle | Number of Contacts | 10 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 10 |
| Terminal Block Type | Header, Male Pins, Shrouded (2 Side) | 1st Connector Mounting Type | :PCB |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | SL | Number of Levels | 1 |
| Positions Per Level | 10 | ||
Documents & Media
Similar Parts
1689240000
weidmuller
BLZF 5.08/10 BK -EA TERM BLOCK PLUG 10POS STR 5.08MM
1502660000
weidmuller
Conn Terminal Block SKT 10 POS 5.08mm Screw ST Cable Mount 10A Box TERM BLOCK PLUG 10POS STR 5.08MM
1708380000
weidmuller
Conn Terminal Block SKT 10 POS 5.08mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 10POS STR 5.08MM
1708610000
weidmuller
Conn Terminal Block SKT 10 POS 5.08mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 10POS STR 5.08MM
BL117MYYBW
3m interconnect solutions
STRIPS (MED) Y BLACK ON WH 10 STRIPS IN 15 BOXES Wire Identification GRAFOPLAST WIRE/CABLE I.D. MARKING ELEMENT STRIPS CABLE MARKER, GREEN, Y, PK10
1982970000
Weidmuller
CONN TERM BLOCK 5.08MM 10POS TERM BLOCK PLUG 10POS 5.08MM
1983160000
Weidmuller
CONN TERM BLOCK 5.08MM 10POS TERM BLOCK PLUG 10POS 5.08MM
1983350000
Weidmuller
CONN TERM BLOCK 5.08MM 10POS TERM BLOCK PLUG 10POS 5.08MM
1982200000
Weidmuller
CONN TERM BLOCK 5.08MM 10POS BLK TERM BLOCK PLUG 10POS 5.08MM
1982390000
Weidmuller
CONN TERM BLOCK 5.08MM 10POS BLK TERM BLOCK PLUG 10POS 5.08MM

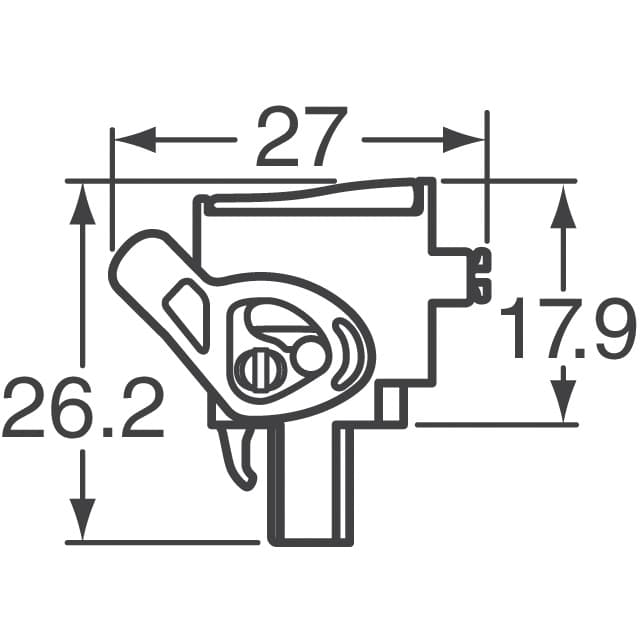

1982590000
Weidmuller
CONN TERM BLOCK 5.08MM 10POS BLK TERM BLOCK PLUG 10POS 5.08MM
1982780000
Weidmuller
CONN TERM BLOCK 5.08MM 10POS TERM BLOCK PLUG 10POS 5.08MM
1013770000
Weidmuller
CONN TERM BLOCK 5.08MM 10POS TERM BLOCK PLUG 10POS STR 5.08MM

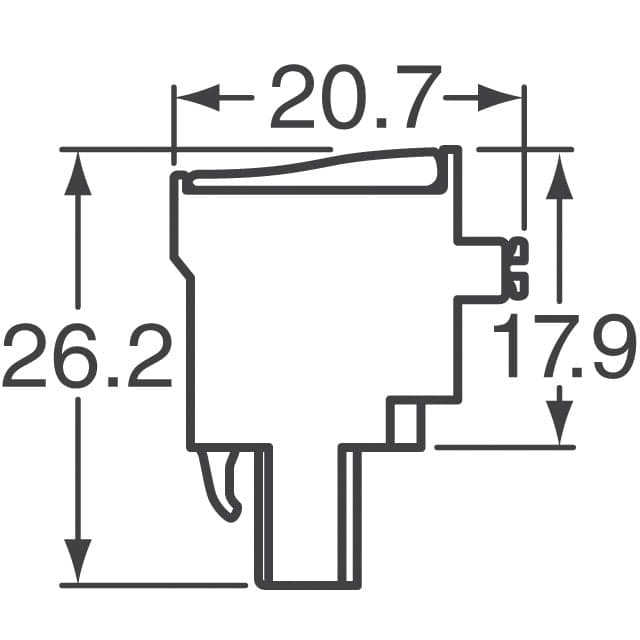

1982010000
