点击放大查看

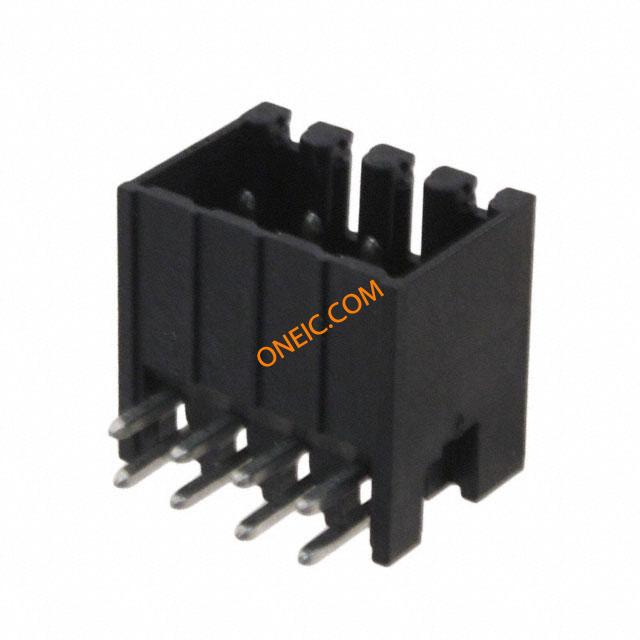

1794220000
| Manufacturer | |
| Description | Conn Shrouded Header HDR 8 POS 3.5mm Solder RA Thru-Hole Box TERM BLOCK HDR 8POS R/A 3.5MM TERM BLOCK HEADER, 8 POLES, 3.5 PITCH |
| Category |
商业参数
| 其他名称 | 1794220000-ND | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
电气参数
| 电流 | 10A | 电压 | 150V |
机械参数
| 颜色 | Black | 间距 | 3.5 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 端接方式 | Solder | 安装类型 | Through Hole |
| 连接器类型 | :PCB Terminal Block | 接触镀层 | Tin |
| 排数 | 2 | 触头材料 | :Copper Alloy |
| 排针方向 | 90°, Right Angle | 触点数 | 8 |
| 位数 | 8 | 接线端子类型 | Header, Male Pins, Shrouded (4 Side) |
| 第一连接器安装类型 | :PCB | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | :Minimate S2L-SMT 3.5 | 层数 | 2 |
| 每层位数 | 4 | ||
Documents & Media
相关型号

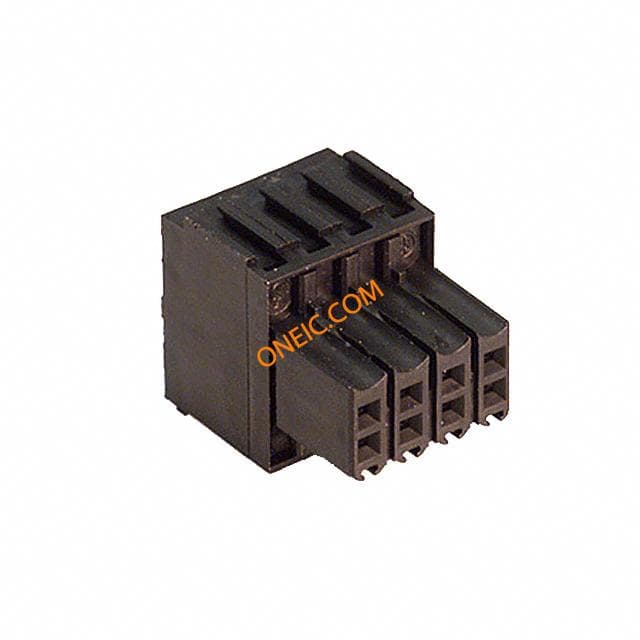

1727650000
weidmuller
Conn Terminal Block SKT 8 POS 3.5mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 8POS STR 3.5MM

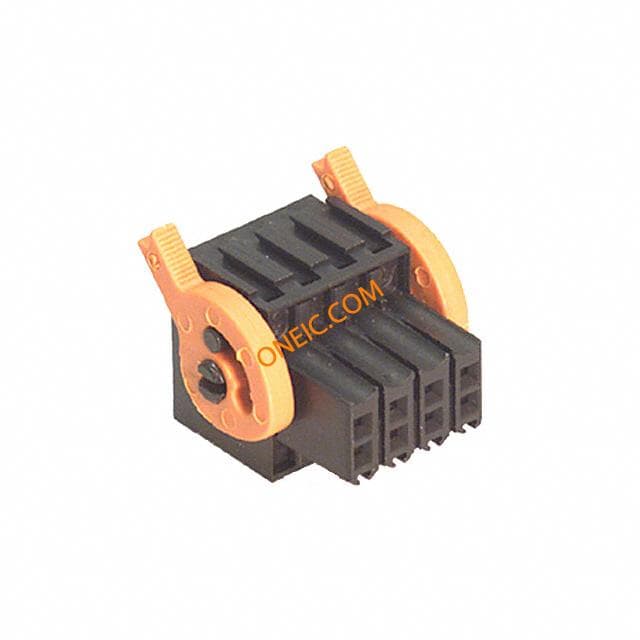

1748500000
weidmuller
Conn Terminal Block SKT 8 POS 3.5mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 8POS STR 3.5MM
1757500000
weidmuller
Conn Terminal Block SKT 8 POS 3.5mm Crimp ST Panel Mount 10A Box TERM BLOCK PLUG 8POS STR 3.5MM
1748020000
weidmuller
Conn Terminal Block SKT 8 POS 3.5mm Crimp ST Panel Mount 10A Box TERM BLOCK PLUG 8POS STR 3.5MM
1748340000
weidmuller
Conn Terminal Block SKT 8 POS 3.5mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 8POS STR 3.5MM
1757700000
weidmuller
Conn Terminal Block SKT 8 POS 3.5mm Crimp ST Cable Mount 10A Box TERM BLOCK PLUG 8POS STR 3.5MM

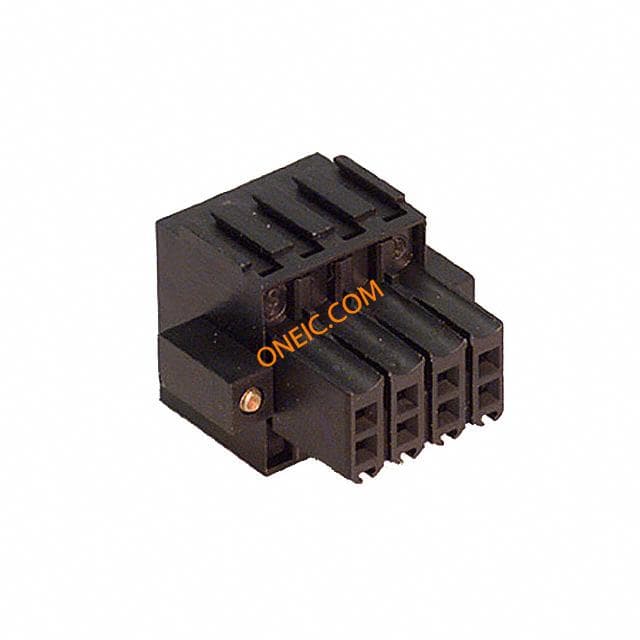

1748180000
