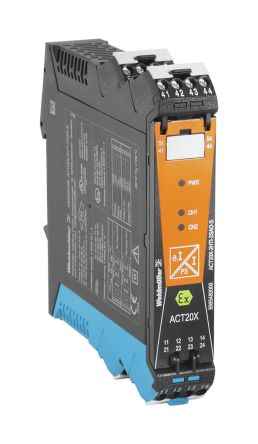

点击放大查看
8965430000
| Manufacturer | |
| Description | SIGNAL CONVERTER/DISCONNECTOR Weidmuller ACT20X 模拟到模拟 信号调节器, IECEx 认证, 模拟输入, USB 电缆接口, 19.2 → 31.2 V 电源电压 |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | IEC 61000-4-2 | DIN EN 61326, NE 21 |
| 资质认证 | 11ATEX0131X.pdf | 认证机构 | CE，cUL，EAC，Ex，GOSTEX，RoHS，TUV |
| 安全类别 | SIL 2 | 标准编号 | 30-21-18-01 |
| 保护特性 | IP20 | 符合性声明 | Declaration of Conformity |
电气参数
| 传感器 | > 15 V DC at 20 mA | 电流 | Current loop 93 mA / externally 10 mA |
| 电压 | Current loop 28 V / externally 10 V | 精度 | < 0.1% span |
| 频率 | 27-21-01-07 | 容差 | 5 Years |
| 输入类型 | 模拟 | 电阻 | ≤ (Vs - 3.5 V) / 23 mA (current loop) |
| 输入范围 | 4 → 20 mA | 输出类型 | 模拟 |
| 最大功率 | Current loop 0.65 W / externally 0.1 W | 量程（°/s） | 0.5 mm² |
| 电流 - UL | E337701.pdf | 负载电流 | ≤ 600 Ω |
| 电流 - IEC | IECEx certification | 输出信号 | < 28 mA |
| 额定功率 | ≤ 62.5 VA / 32 W (safe area)≤ 16 VA / 32 W (Zone 2) | 响应时间 | ≤ 5 ms |
| 测试电流 | ≤ 0.5 A AC / 0.3 A DC (safe zone), ≤ 0.5 A AC / 1 A DC ( Zone 2) | 稳压器类型 | 模拟到模拟 |
| 额定电压 | 300 V | 输出电流 | 4...20 mA |
| 供电电压 | ≤ 26 V DC | 开关电压 | ≤ 125 V AC / 110 V DC (safe area)≤ 32 V AC / 32 V DC (Zone 2) |
| 通道数量 | 1 | 输入电阻 | ≤ 0.01% of span / 100 Ω |
| 频率稳定度 | ≤ 0.01 % of end value / 100 Ω | 击穿电压 | 2.6 kV (input / output) |
| 输入偏置电流 | 4…20mA | 频率 - 输出3 | 0.5…2.5 kHz @ 3.5…23 mA bi-directional HART® signal |
| 平均正向功率 | ≤ 3 W (2 channels) | 传播速度（VoP） | 4.1 x 10-8 h-1 |
| 低频纹波电流 | < 7.5 mVeff | ||
机械参数
| 深度 | 113.6 mm | 锥度 | SIL certificate |
| 宽度 | 22.5 mm | 高度 | 117.2 mm |
| 重量 | 189 g | 端接方式 | 螺钉 |
| 最小扭矩 | 0.4 Nm | 安装类型 | DIN 导轨 |
| 连接器类型 | Screw connection, Removable terminal block | 深度（英寸） | 4.472 inch |
| 宽度（英寸） | 0.886 inch | 连接器用途 | USB 电缆 |
| 高度（英寸） | 4.614 inch | 包装数量 | instruction sheet.pdf |
| 最大瞬时扭矩（oz-in / mNm） | 0.6 Nm | ||
产品信息
| 类型 | Relay, 1 NC (voltage-free) | 系列 | * |
| ETIM 6*0 | EC002479 | 产品特性 | 集成警报触点在发生故障时发出警报 |
| 软件 | WI-Manager + DTM-Library for online installation | GTIN（EAN） | 4032248785049 |
| 外形规格 | 80 % | 配置 | With FDT/DTM software |
| 图例（文字） | CBX200 USB configuration adapter - 8978580000 | 规格说明 | Ex supply isolator for standard DC current signals, 2-channel, HART transparent2-channel supply isolator in 22.5 mm width with external power supply,for transmitting and isolating 4...20 mA standard signals from Ex Zones 0,1,2 to the safezones. The component has an active and passive input. External sensors can be supplied with > 15 VDC. The 4...20 mA output circuit can be operated either passively or actively. Status and error messages are available via a relay contact (NO).The component can be configured using standard FDT/DTM software.Add-on housing for TS35 rail mountingDimensions: L/W/H 119.2/ 22.5/ 113.6Screw connection/ Nominal cross-section 2.5 mm2Protection degree: IP 20 Input 4...20 mA > 15 V DC sensor supply Output active 4...20 mA passive 4...20 mA current loop max. 26 V DCLoad < 600 OhmAccuracy < 0,1 % v.ETemperature coefficient < 0,01% v.E./°C (Tu) Alarm output relay 1 NO contact 250 V AC / 30 V DC @ 2A safe zone 32 V AC @ 0.5 A/ 32 VDC @ 1 A Zone 2Auxiliary power 19...31.2 V DCPower loss approx. 1.8 WAmbient temperature range -20 °C...+60 °CSecure isolation EN 61010, 3-way isolation up to 2.6 kV AC/DC of all circuits against each otherWorking voltage 300 V AC/DC at overvoltage category II and pollution degree 2Approvals cULus, ATEX IECEX, FMATEX marking II 3 G ExnA nC IIC T4ATEX characteristic data U0 = 28 V DC I0 = 93 mA DC P0 = 650 mWType ACT20X-HAI-SAO-S |
| 手动超控 | Manual "functional safety" | 工程数据 | EPLAN |
| 固件版本 | ACT20X, EX signal isolating converter, 1-channel version | ||
环境参数
| 动作时间 | 177 Years | ET（伏秒积） | EC002479 |
| 防护等级 | 27-21-01-07 | 工作温度 | -20 °C...60 °C |
| 温度系数 | < 0.01% of span/°C (TU) | ||
