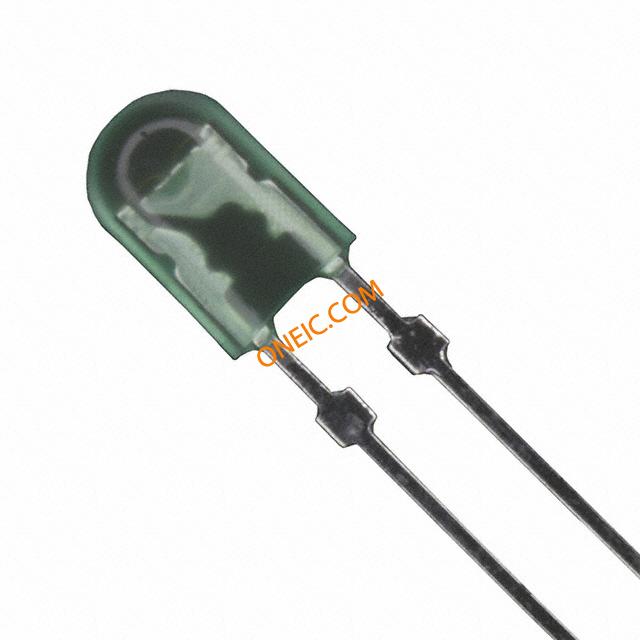

C4SMF-GJS-CV0Y0792
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | C4SMF-GJS-CV0Y0792CT | Standard Package | 3,000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85414010 |
Electrical
| Lamp Type | :4mm | Optic Size | 4 mm |
| Viewing Angle | 105 deg | Current - Output | 20mA |
| Voltage - Supply | 3.4V | Wavelength - Peak | :535nm |
| LED Forward Current | 20 mA | LED Forward Voltage | :3.4V |
| Millicandela Rating | 5165mcd | Wavelength - Dominant | 527 nm |
| Current - DC Forward (If) (Max) | :20mA | ||
Mechanical

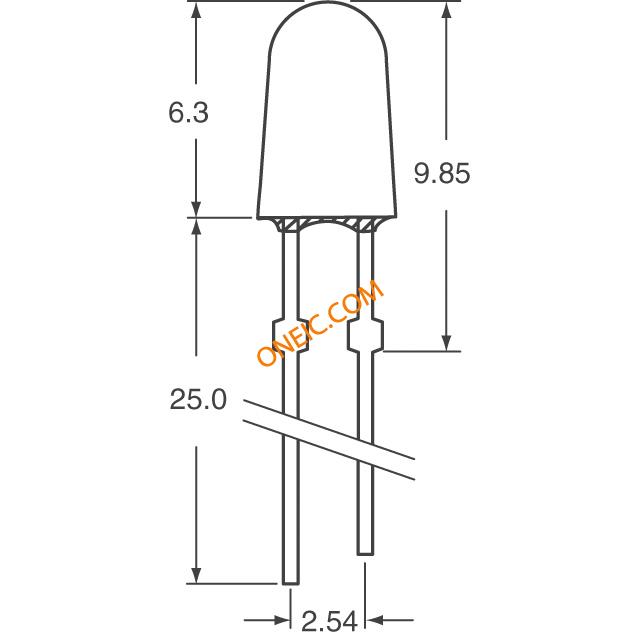

| Color | Green | Height | 6.30mm |
| Weight | 0.01 | LED Color | :Green |
| Packaging | Ammo | Lens Color | Water Clear |
| Lens Style | Oval | Lens Diameter | 4 mm |
| Mounting Type | Through Hole | Mounting Style | Through Hole |

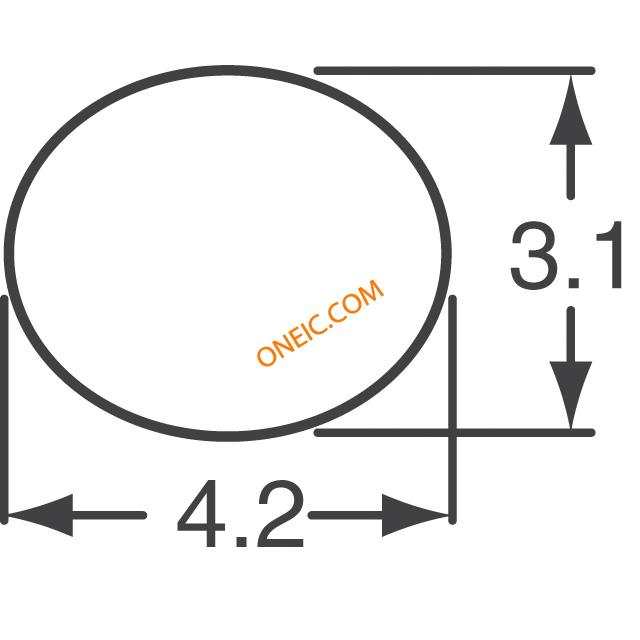

| Package / Case | Radial | Lens Style/Size | Oval with Domed Top, 4.2mm x 3.1mm |
| Illumination Color | Green | ||
Product Info
| Type | Screen Master 4-mm Oval Color LEDs | Series | Screen Master |
| Lens Type | Diffused, Tinted | ||
Environmental
| Operating Temperature | + 95 C | Luminous Flux @ Current/Temperature | 4000 mcd |
