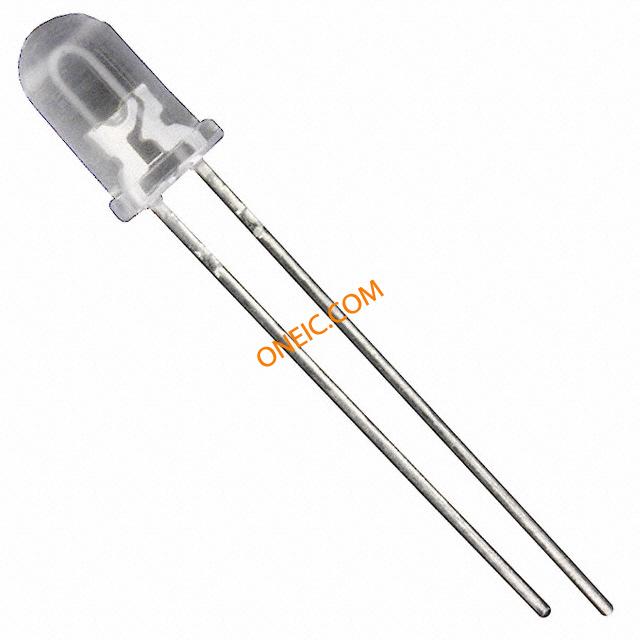

C503B-BAN-CY0C0461
| Manufacturer | |
| Description | Standard LEDs - Through Hole Blue Round LED LED Uni-Color Blue 2-Pin T-1 3/4 Bulk LED 5MM BLUE CLEAR 470NM 15DEG LED, 5MM, 11CD, 490NM |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 500 | Standard Package Name | T-1 3/4 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85414010 | ||
Electrical
| Lamp Type | :T-1 3/4 (5mm) | Optic Size | 5 mm |
| Lamp Output | Yes | Luminous Flux | 1100mcd |
| Viewing Angle | 15 deg | Current - Output | 20mA |
| Voltage - Supply | 3.2V | Wavelength - Peak | :490nm |
| LED Forward Current | 20 mA | LED Forward Voltage | 3.2 V |
| Millicandela Rating | 19380mcd | Wavelength - Dominant | 470 nm |
| Power Dissipation (Max) | 120 | Current - DC Forward (If) (Max) | :20mA |
| Current - Peak Pulse (10/1000us) | 30 | Voltage - Gate Trigger (Vgt) (Max) | 5 |
Mechanical
| Color | Blue | Height | 8.80mm |
| Weight | 0.01 | LED Color | :Bleu |
| Packaging | Bulk | Lead Style | Through Hole |
| Lens Color | Clear | Lens Style | Dome |
| Lens Diameter | 5 mm | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | Radial |
| Lens Style/Size | Round with Domed Top, 5mm, T-1 3/4 | Package Quantity | T-1 3/4 |
| Diameter - Outside | 5.8 | Illumination Color | Blue |
| Number of Positions | 2 | Shell Size - Insert | 8.8 |
Product Info
| Type | Uni-Color | Lens Type | Clear |
| Number of LEDs | 1 | Printed Circuit Board | 2 |
Environmental
| Operating Temperature | + 95 C | Luminous Flux @ Current/Temperature | 11000 mcd |
