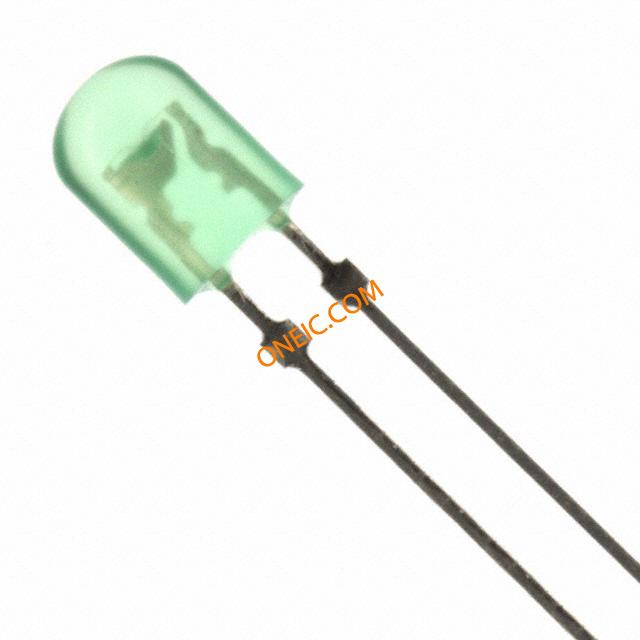

C5SMF-GJS-CV0Y0792
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | C5SMF-GJS-CV0Y0792CT | Standard Package | 2,500 |
| Standard Package Name | T-1 3/4 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85414010 | ||
Electrical
| Lamp Type | :T-1 3/4 (5mm) | Optic Size | 5 mm |
| Lamp Output | Yes | Luminous Flux | 4400mcd |
| Viewing Angle | 100 deg | Current - Output | 20mA |
| Voltage - Supply | 3.4V | Wavelength - Peak | :535nm |
| LED Forward Current | 20 mA | LED Forward Voltage | 3.4 V |
| Millicandela Rating | 5165mcd | Wavelength - Dominant | 527 nm |
| Power Dissipation (Max) | 140 | Current - DC Forward (If) (Max) | :20mA |
| Current - Peak Pulse (10/1000us) | 35 | Voltage - Gate Trigger (Vgt) (Max) | 5 |
Mechanical
| Color | Green | Width | 3.7 |
| Height | 7.00mm | Weight | 0.01 |
| LED Color | :Green | Packaging | Ammo |
| Lens Color | Green Clear | Lens Style | Oval |
| Lens Diameter | 5 mm | Mounting Type | Through Hole |
| Mounting Style | Through Hole | Package / Case | Radial |
| Lens Style/Size | Oval with Domed Top, 5.1mm x 3.7mm | Length - Overall | 5.1 |
| Package Quantity | T-1 3/4 | Illumination Color | Green |
| Number of Positions | 2 | Shell Size - Insert | 7 |
Product Info
| Type | Uni-Color | Lens Type | Diffused, Tinted |
| Number of LEDs | 1 | Printed Circuit Board | 2 |
Environmental
| Operating Temperature | + 95 C | Luminous Flux @ Current/Temperature | 4400 mcd |
