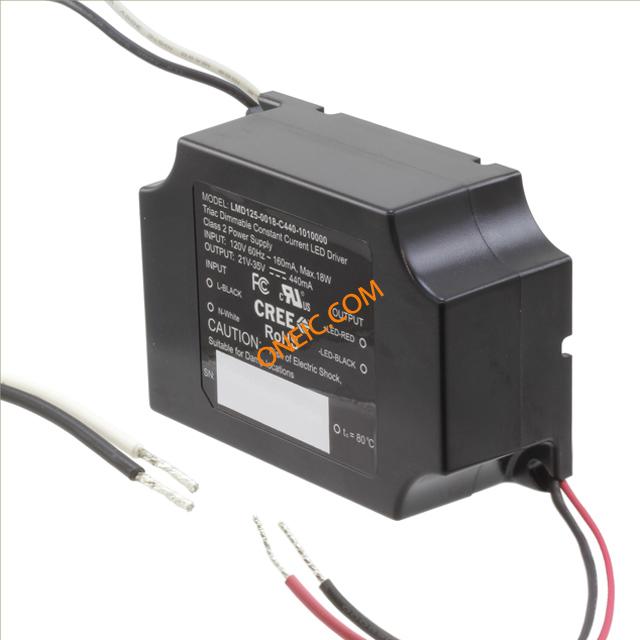

LMD125-0018-C440-1010000
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 10 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85044090 | Rad Hardened | No |
| Approval Agency | CE, CQC, cULus | ||
Electrical
| Dimming | TRIAC | Efficiency | 81% |
| Power Level | 5 % | Power (Watts) | 15W |
| Power - Input | :Panel | Voltage Rating | 120 VAC |
| Current - Output | 440mA | Number of Outputs | 1 |
| Number of Channels | :1 | Voltage - Input (Min) | :120V |
| Voltage - Supply (Min) | 120 | Current - Output / Channel | 440 mA |
Mechanical
| Depth | :29.5mm | Width | :56mm |
| Length | :81mm | Weight | 0 |
| Packaging | Bulk | Mounting Type | Chassis Mount |
| Length - Overall | 81 | Size / Dimension | 81 mm L x 56 mm W x 29.5 mm H |
| Termination Style | :Wire Leaded | Shell Size - Insert | 29.5 |
Product Info
| Type | Constant Current | Topology | AC DC Converter |
| For Use With/Related Products | LMH2-850, 1250 | ||
Environmental
| Ratings | IP20, NEMA 410 | Operating Temperature | Commercial |
| Operating Temperature - Junction | 70C | ||
