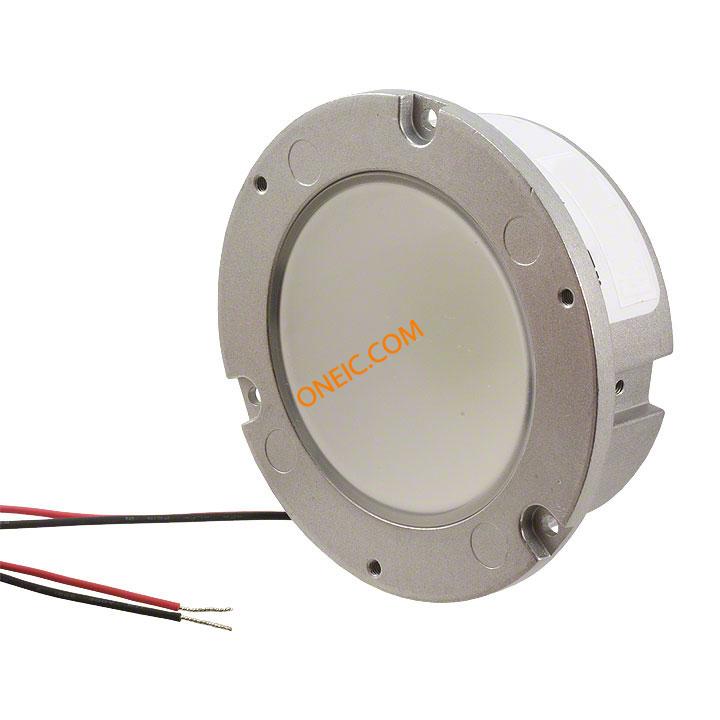

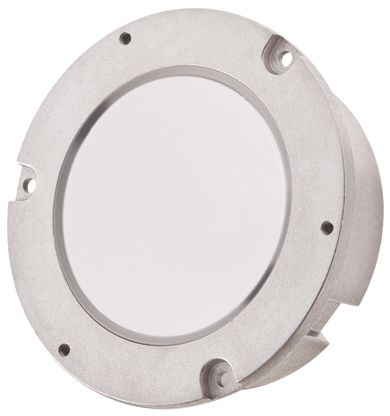

LMH020-0850-27G9-00000SS
| Manufacturer | |
| Description | LED MOD 850LM WHITE 2700K FLAT LED Lighting Modules 2700 K, 850lm, Flat Sunset Dimming LMH020-0850-27G9-00000SS Cree LMH2 系列 白色 LED 模块, 2700K色温, 850 lm, 88.2 直径 x 30mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | LED Modules, Circular | Standard Package | 10 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| LED | 白色 | Dimming | Sunset Dimming |
| Beam Angle | 82 deg | Wavelength | 2700K |
| Luminous Flux | 850 lm | Viewing Angle | 82° |
| Current - Output | 440mA | Driver Circuitry | No |
| Voltage - Supply | 19.9V | LED Forward Current | 440 mA |
| LED Forward Voltage | 19.9 V | Current Rating (Max) | 440mA |
| Wavelength - Dominant | 2700 K | Light Emitting Surface (LES) | 68.00mm Diameter |
| Lumens/Watt @ Current - Test | 97 lm/W | Flux @ 85degC, Current - Test | 850 lm (790 lm ~ 909 lm) |
Mechanical
| Size | 88.2 mm x 30 mm | Color | White, Warm |
| Width | 30mm | Height | 30 mm |
| Diameter | 88.2 mm | Packaging | Bulk |
| Lens Style | Flat Round | Connector Usage | No |
| Size / Dimension | 88.20mm Diameter | Illumination Color | Warm White |
| CRI (Color Rendering Index) | 90 | ||
Product Info
| Type | LED Module | Series | LMH2 |
| CCT (K) | 2700K | Features | Dimming - Sunset, Lens - Flat |
| Configuration | Circular | Number of LEDs | 1 |
Environmental
| Luminous Flux @ Current/Temperature | 850 lm | ||
