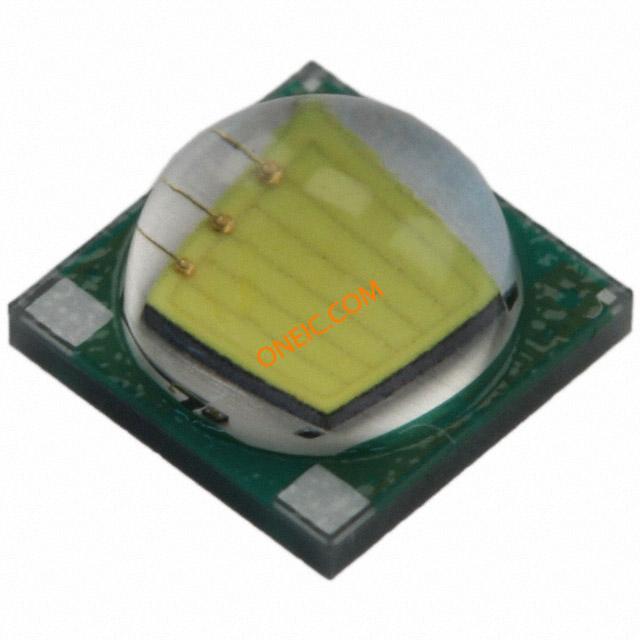

点击放大查看
XMLAWT-00-0000-000LT50E4
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | XMLAWT-00-0000-000LT50E4CT | Standard Package | 1,000 |
| Standard Package Name | SMD | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85414010 | Rad Hardened | No |
Electrical
| Lamp Output | Yes | Luminous Flux | 260 lm |
| Viewing Angle | 125 deg | Current - Output | 700mA |
| Voltage - Supply | 2.9V | Wavelength - Peak | Not Required nm |
| Number of Elements | 1 | Current - Trip (It) | 700 mA |
| LED Forward Current | 700 mA | LED Forward Voltage | 2.9 V |
| Current Rating (Max) | 3A | Wavelength - Dominant | Not Required nm |
| Lumens/Watt @ Current - Test | 133 lm/W | Flux @ 25degC, Current - Test | 270 lm (260 lm ~ 280 lm) |
| Flux @ 85degC, Current - Test | 230 lm | Current - DC Forward (If) (Max) | :3A |
Mechanical
| Color | White | Depth | 5 mm |
| Shape | Circular | Width | 5 mm |
| Height | 3.02 mm | Length | 5 mm |
| Weight | 0.001 | LED Color | :Neutral White |
| Packaging | Reel | Lamp Color | 4500 K |
| Lead Style | No Lead | Lens Color | Clear |
| Lens Style | Circular | Light Color | Neutral White |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :2 | Optic Material | :- |
| Package / Case | 2-SMD, No Lead | Package Cooled | SMD |
| Length - Overall | 5 mm | Package Quantity | SMD |
| Illumination Color | Neutral White | Number of Positions | 2 |
| CRI (Color Rendering Index) | 75 | ||
Product Info
| Type | Uni-Color | Series | :XLamp XM-L |
| CCT (K) | 4500K (4250K ~ 4750K) | DELETED | Compliant |
| Main Purpose | Chip LED | Number of LEDs | 1 |
| Printed Circuit Board | 2 | ||
Environmental
| Mechanical Life | New Product: New from this manufacturer. | Thermal Resistance of Package | 2.5° |
| Luminous Flux @ Current/Temperature | 878 lm | ||
