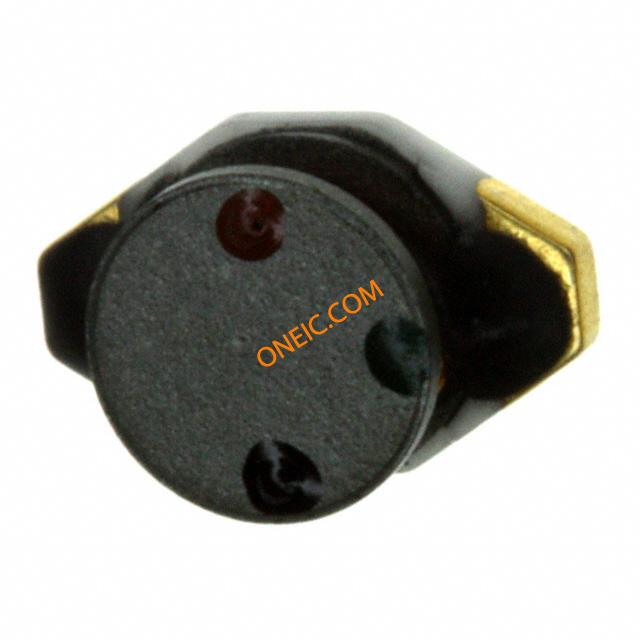

点击放大查看
74455115
| Manufacturer | |
| Description | INDUCTOR POWER 15UH 1.1A SMD INDUCTOR SMD 15UH CHOKE, SMD, 15UH Wurth WE-PD4 系列 铁氧体芯材 绕线贴片电感器, 15 μH ±20%, 1.1A Idc |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 732-1336-2 | Standard Package | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Core Type | :Unshielded | Tolerance | ±20% |
| Inductance | 15µH | Range deg/s | :WURTH ELEKTRONIK - WE-PD4 Series |
| Test Frequency | 100kHz | Inductance Range | :± 20% |
| DC Resistance (DCR) | 230 mOhm Max | Current Rating (Max) | 1.1A |
| DC Resistance (DCR) (Max) | :0.23ohm | Frequency - Self Resonant | 30MHz |
| Current - Saturation (Isat) | :900mA | Current Saturation - Series | 900mA |
| Resistance - Initial (Ri) (Min) | 230mΩ | Current - On State (It (RMS)) (Max) | :1.1A |
Mechanical
| Depth | 4.45mm | Height | 2.92mm |
| Length | 6.6mm | Weight | 0.0002 |
| Packaging | Tape & Reel (TR) | Shielding | Unshielded |
| Core Material | Ferrite | Mounting Type | Surface Mount |
| Number of Pins | :2 | Package / Case | Non Standard |
| Material - Core | Ferrite | Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Dimensions - Overall | :6.6mm x 4.45mm x 2.92mm | Height - Seated (Max) | 0.115" (2.92mm) |
Product Info
| Type | Wirewound | Series | :WE-PD4 |
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
Online Document
Online Document
Online Document
PDF Document
PDF Document
