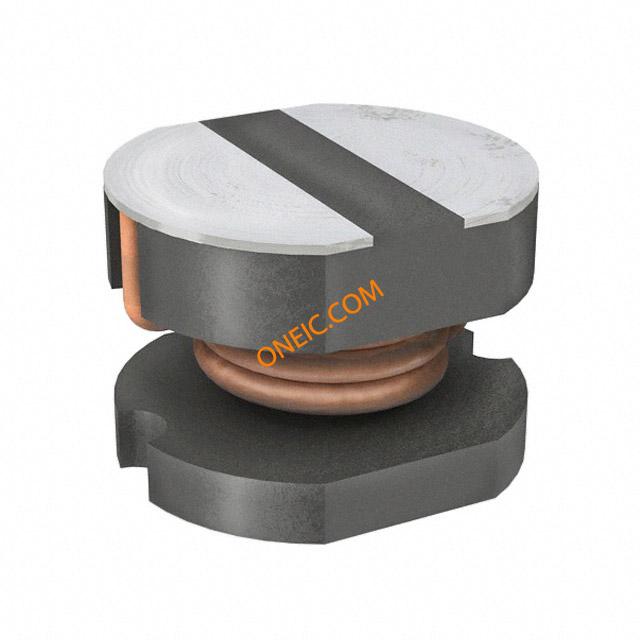

744773115
| Manufacturer | |
| Description | INDUCTOR POWER 15UH 1.2A SMD Fixed Inductors WE-PD2 Inductor 15uH1.2A 0.235ohm CHOKE, SMD, 15UH Wurth 屏蔽 绕线贴片电感器, 15 μH ±20%, 1.2A Idc |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | SMD Power Inductors | Other Names | 732-4143-2 |
| Product Category | Fixed Inductors | Standard Package | 1,500 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Core Type | :Unshielded | Tolerance | ±20% |
| Inductance | 15µH | Range deg/s | :WURTH ELEKTRONIK - WE-PD2 Series |
| Test Frequency | 10kHz | Inductance Range | :± 20% |
| DC Resistance (DCR) | 235 mOhm Max | Current Rating (Max) | 1.2A |
| DC Resistance (DCR) (Max) | :0.235ohm | Frequency - Self Resonant | 27MHz |
| Current - Saturation (Isat) | :1.46A | Current Saturation - Series | 1.46A |
| Resistance - Initial (Ri) (Min) | 235 mOhms | Current - On State (It (RMS)) (Max) | :1.2A |
Mechanical
| Width | 4.5 mm | Weight | 0.0002 |
| Packaging | Tape & Reel (TR) | Shielding | Unshielded |
| Mounting Type | Surface Mount | Number of Pins | :2 |
| Package / Case | Non Standard | Material - Core | Ferrite |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Termination Style | SMD/SMT |
| Dimensions - Overall | :4.5mm x 4mm x 3.2mm | Height - Seated (Max) | 0.138" (3.50mm) |
Product Info
| Type | Wirewound | Series | WE-PD2 |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
