742792510
| Manufacturer | |
| Description | EMIフィルタ ビーズ、チョーク、アレイ WE-CBF Bead 100MHz 70ohm 6000mA FERRITE BEAD 70 OHM 6.0A 1812 EMI Filter Beads, Chips & Arrays WE-CBF Bead 100MHz 70ohm 6000mA FERRITE BEAD, 0.03OHM, 6A, 1812 |
| Category |
Business
| Product | Ferrite Chip Beads | メーカ | Wurth Electronics |
| Other Names | 732-1640-2 | Product Category | EMI Filter Beads, Chips & Arrays |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | RoHS 認証 | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045020 | ||
Electrical
| Impedance | 30 Ohms | Tolerance | 25 % |
| Resistance | :0.03ohm | Filter Type | Differential Mode - Single |
| Test Frequency | 100 MHz | Resistance - Input | 50 mOhms |
| Current Rating - DC | :6A | DC Resistance (DCR) | 30 mOhm Max |
| Current Rating (Max) | 6A | Impedance @ Frequency | 70 Ohm @ 100MHz |
| DC Resistance (DCR) (Max) | :0.03ohm | Resistance - Initial (Ri) (Min) | 50 mOhms |
| Current - Supply (Disable) (Max) | 3 mA | ||
Mechanical
| Size | 3.2 mm W x 4.5 mm L x 1.5 mm H | Width | 3.2 mm |
| Weight | 0.003951 oz | Packaging | Tape & Reel (TR) |
| End - Size | SMD/SMT | Size - Body | 4.5 mm |
| Height (Max) | 1.5 mm | Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 metric) | Mounting Feature | :SMD |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | Termination Style | SMD/SMT |
Product Info
| Series | WE-CBF | Product Type | Chip Ferrite Beads |
| Card Standard | EMIフィルタ ビーズ、チョーク、アレイ | Number of Units | 1000 |
Environmental
| Operating Temperature | - 55 C to + 125 C | Operating Temperature - Junction | - 55 C to + 125 C |
Documents & Media
Similar Parts
TPA3110D2PWP
texas instruments
Audio Amp Speaker 2-CH Stereo 15W Class-D 28-Pin HTSSOP EP Tube IC AMP AUD PWR 15W STER 28HTSSOP Audio Amplifiers 15W Class D Stereo Amplifier IC, AMP AUD PWR 15W STER 28HTSSOP 15W Filter-Free Class D Stereo Amplifier with SpeakerGuard™ (TPA3110) Texas Instruments D 类 立体声 音频放大器 IC, +85 °C, 28引脚 HTSSOP封装
TPA3112D1PWP
texas instruments
Audio Amp Speaker 1-CH Mono 25W Class-D 28-Pin HTSSOP EP Tube IC AMP AUD PWR 25W MONO 28HTSSOP Audio Amplifiers 25W Filter-Free Mono Class-D Aud Amp AUDIO AMP, CLASS D, 25W, 28HTSSOP 25-W Filter-Free Mono Class-D Audio Amplifier with SpeakerGuard™ (TPA3112) Texas Instruments D 类 单声道 音频放大器 IC, +85 °C, 28引脚 HTSSOP封装
TPA3111D1PWP
texas instruments
Audio Amp Speaker 1-CH Mono 10W Class-D 28-Pin HTSSOP EP Tube IC AMP AUD PWR 10W MONO 28HTSSOP Audio Amplifiers 10W Mono Class-D Audio Power Amp AMPLIFIER, AUDIO, CLASS D, 10W, HTSSOP28 10-W Mono Class-D Audio Power Amplifier with SpeakerGuard™ (TPA3111)
TPA3113D2PWP
texas instruments
Audio Amp Speaker 2-CH Stereo 6W Class-D 28-Pin HTSSOP EP IC AMP AUDIO 6W STEREO 28HTSSOP Audio Amplifiers 6W Stereo Class-D Audio Power Amp IC, AMP AUD PWR 6W STEREO 28HTSSOP 6-W Stereo Class-D Audio Power Amplifier with SpeakerGuard™ (TPA3113) Audio Power Amplifier IC HTSSOP-28, TPA3113, TPA3113D2PWP, Texas Instruments Texas Instruments D 类 立体声 音频放大器 IC, +85 °C, 28引脚 HTSSOP封装
TPA3112D1EVM
texas instruments
25-W Filter-Free Mono Class-D Audio Power Amplifier With Speaker Guard Audio IC Development Tools TPA3112D1 Eval Mod EVAL MODULE FOR TPA3112D1 TPA3112D1, AUDIO AMPLIFIER, EVAL MODULE
TPA3110D2EVM
texas instruments
Evaluation Board For Filter-Free Class D Stereo Amplifier Audio IC Development Tools TPA3110D2 Eval Mod EVAL MODULE FOR TPA3100D2 TPA3110D2, AUDIO POWER AMPLIFIER, EVAL MODULE

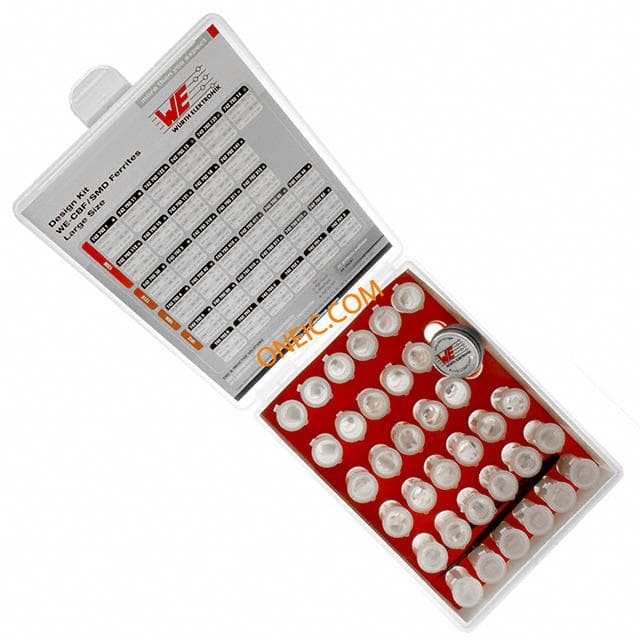

742791
