点击放大查看

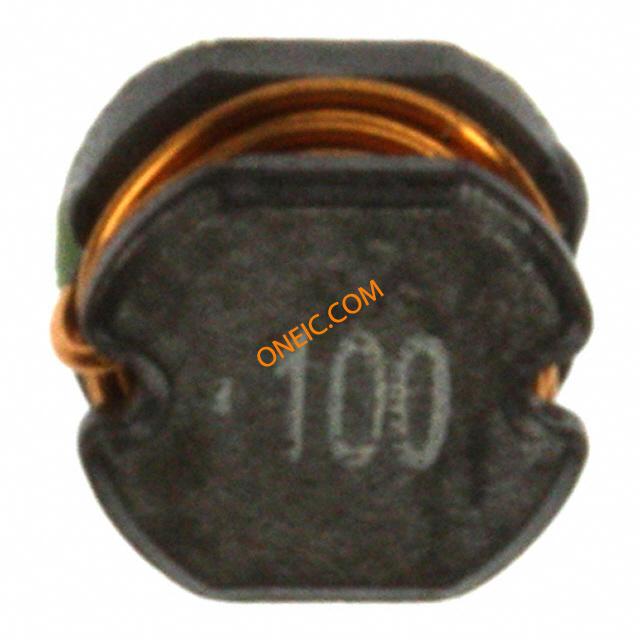

74477310
| Manufacturer | |
| Description | Fixed Inductors WE-PD2 Inductor 10kHz 10uH 1.45A Ind Power Choke Wirewound 10uH 20% 1KHz Ferrite 1.45A T/R INDUCTOR POWER 10UH 1.45A SMD Inductor SMD WE-PD2 4532 10uH 1.74A CHOKE, SMD, 10UH Wurth WE-PD2 系列 铁氧体芯材 绕线贴片电感器, 10 μH ±20%, 1.45A Idc |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | SMD Power Inductors | Other Names | 732-1255-2 |
| Standard Package | 1,500 | Factory Pack Quantity | 1500 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045095 |
Electrical
| Core Type | :Unshielded | Tolerance | 20% |
| Inductance | 10u | Range deg/s | :WURTH ELEKTRONIK - WE-PD2 Series |
| Test Frequency | 1kHz | Inductance Range | :± 20% |
| DC Resistance (DCR) | 182 mOhm Max | Current Rating (Max) | 1.45A |
| DC Resistance (DCR) (Max) | :0.182ohm | Frequency - Self Resonant | 30MHz |
| Current - Saturation (Isat) | :1.74A | Current Saturation - Series | 1.74A |
| Resistance - Initial (Ri) (Min) | 182mΩ | Current - On State (It (RMS)) (Max) | :1.45A |
Mechanical
| Depth | 4mm | Width | 4 mm |

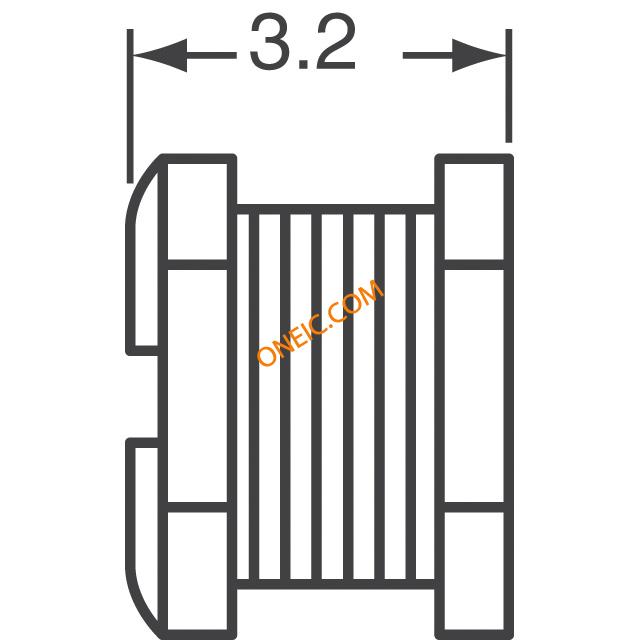

| Height | 3.2mm | Length | 4.5mm |
| Weight | 0.0002 | Packaging | Tape and Reel |
| Shielding | Unshielded | Core Material | Ferrite |
| Mounting Type | Surface Mount | Number of Pins | :2 |
| Package / Case | Non Standard | Material - Core | Ferrite |

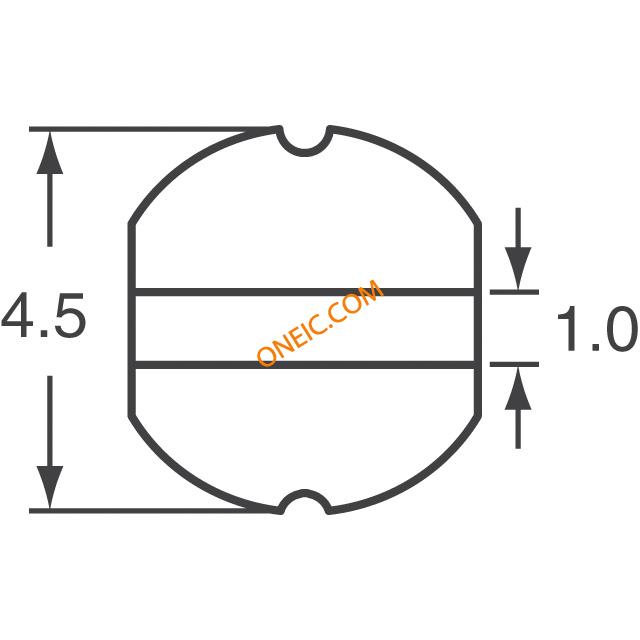

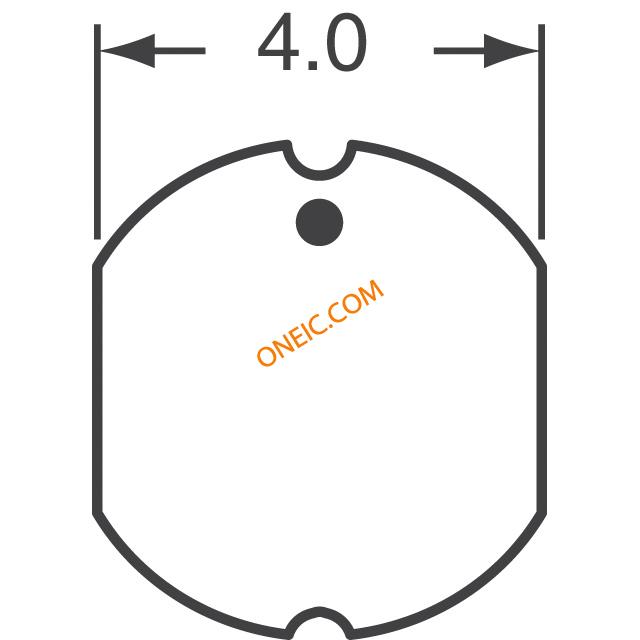

| Length - Overall | 4.8 | Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) |
| Termination Style | SMD/SMT | Dimensions - Overall | :4.5mm x 4mm x 3.2mm |
| Height - Seated (Max) | 0.138" (3.50mm) | ||
Product Info
| Type | Power Choke | Series | WE-PD2 |
| Technology | Wirewound | ||
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Online Document
Online Document
Online Document
PDF Document
PDF Document
PDF Document
