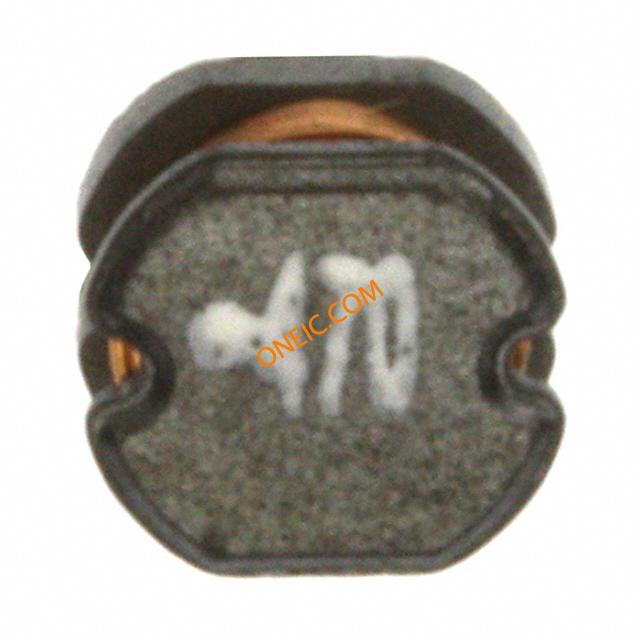

744773147
| Manufacturer | |
| Description | 固定インダクタ WE-PD2 Inductor 47uH 10kHz 0.68A INDUCTOR POWER 47UH .68A SMD Inductor SMD WE-PD2 4532 47uH 0.77A Fixed Inductors WE-PD2 Inductor 47uH 10kHz 0.68A CHOKE, SMD, 47UH Wurth WE-PD2 系列 铁氧体芯材 绕线贴片电感器, 47 μH ±10%, 680mA Idc |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | SMD Power Inductors | メーカ | Wurth Electronics |
| Other Names | 732-1261-2 | Standard Package | 1,500 |
| Factory Pack Quantity | 1500 | ||
Compliance
| RoHS | RoHS 認証 | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Core Type | :Unshielded | Tolerance | 10 % |
| Inductance | 47 uH | Range deg/s | :WURTH ELEKTRONIK - WE-PD2 Series |
| Test Frequency | 1 kHz | Inductance Range | :± 10% |
| Resistance - Input | 844 mOhms | DC Resistance (DCR) | 844 mOhm Max |
| Current Rating (Max) | 680mA | Center / Cutoff Frequency | 12 MHz |
| DC Resistance (DCR) (Max) | :0.844ohm | Frequency - Self Resonant | 12MHz |
| Current - Saturation (Isat) | :770mA | Current Saturation - Series | 770mA |
| Resistance - Initial (Ri) (Min) | 844mΩ | Current - Supply (Disable) (Max) | 0.68 A |
| Current - On State (It (RMS)) (Max) | :680mA | ||
Mechanical
| Size | 4 mm W x 4.5 mm L x 3.2 mm H | Depth | 4mm |
| Width | 4 mm | Height | 3.2mm |
| Length | 4.5mm | Weight | 0.0002 |
| Packaging | Tape & Reel (TR) | Shielding | Unshielded |
| End - Size | SMD/SMT | Size - Body | 4.5 mm |
| Height (Max) | 3.2 mm | Core Material | Ferrite |
| Mounting Type | Surface Mount | Number of Pins | :2 |
| Package / Case | Reel | Material - Core | Ferrite |
| Size / Dimension | 0.177" L x 0.157" W (4.50mm x 4.00mm) | Termination Style | SMD/SMT |
| Dimensions - Overall | :4.5mm x 4mm x 3.2mm | Height - Seated (Max) | 0.138" (3.50mm) |
Product Info
| Type | SMD Power Inductor | Series | WE-PD2 |
| Product Type | SMD Power Inductors | Number of Units | 1500 |
Environmental
| Operating Temperature | -40°C ~ 125°C | Operating Temperature - Junction | - 40 C to + 125 C |
Documents & Media
Online Document
Online Document
Online Document
PDF Document
PDF Document
PDF Document
