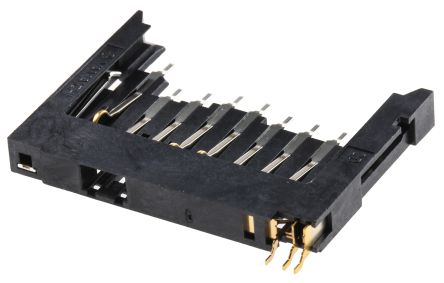

点击放大查看
FPS009-3202-BL
| Manufacturer | |
| Description | Yamaichi manual SD card & MMC connector Memory Card Connectors SD CARD STANDARD MNT MANUAL Yamaichi 9针(1行) 直角 表面安装 母 SD 卡连接器, 焊接端接 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Card Connectors | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 5 V | Current Rating (Max) | 500 mA |
| Insulation Resistance | 1000 MOhms | ||
Mechanical
| Depth | 20.3mm | Width | 3.1mm |
| Length | 27.4mm | Packaging | Reel |
| Orientation | 直角 | Termination | Solder |
| Mounting Type | Right Angle | Connector Type | SD 卡 |
| Contact Finish | Gold over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Size / Dimension | 27.4 x 3.1 x 20.3mm | Termination Rows | 焊接 |
| Termination Style | SMD | Number of Contacts | 9 |
| Insertion, Removal Method | Push-Push | ||
Product Info
| Gender | Female | Series | FPS |
| Card Type | SD Card | ||
Environmental
| Operating Temperature | +85°C | ||
