Apex Microtechnology, Inc.- Amplifiers & Comparators

Apex Microtechnology, Inc. is a leading provider of precision power analog and mixed-signal integrated circuits. Founded in 1984, the company is headquartered in Tucson, Arizona, USA. Its core business focuses on high-voltage, high-current analog solutions for demanding applications in industrial, medical, aerospace, and defense markets. The product portfolio includes power operational amplifiers (PA series), PWM amplifiers (SA series), voltage references (VRE series), and linear amplifiers. Notable products like the PA107 and PA341 deliver high current and high voltage capabilities for actuator and motor control. Apex also manufactures hybrid and monolithic devices that combine precision and power. The company is recognized as a niche leader in power analog technology, holding a strong reputation for reliable, high-performance components. Its components are widely used in instrumentation, sonar, robotics, and semiconductor test equipment. Apex Microtechnology maintains a competitive edge through continuous innovation in thermal management and precision analog design. It is considered a premier supplier for applications requiring extreme power levels and precision simultaneously.

Amplifiers & Comparators - 型号列表

25 parts in total

Mfr Part #	Quantity Available	Price	Slew Rate	Voltage - Supply	Power Supply Type	Number of Channels	Gain Bandwidth Product	Voltage - Output Difference (Typ) @ Distance	Height	Mounting Type	Package Cooled	Number of Positions	Amplifier Type	Operating Temperature	Width	Length	Size / Dimension	Power - Input	Conversion Type	Number of Elements	Typical Voltage Gain	Number of Pins	Package Quantity	Voltage - Supply, Dual (V+/-)	Function	Frequency	Voltage - Input (Min)

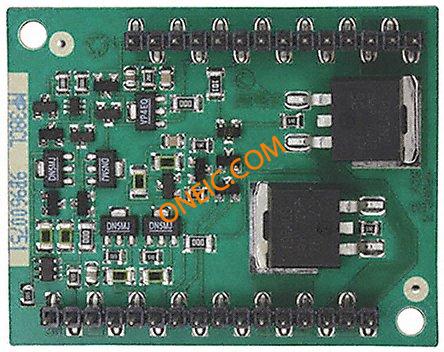

2 MP38CL MP38CL, Operational Amplifier Linear 2MHz, 30-Pin DIP Apex 线性放大器运算放大器, 2MHz, 30针 PDIP Apex	10	1: ¥659.60	63V/µs	±75V	Dual	1	2MHz	113 dB	6.6mm	Through Hole	DIP	30	Linear Amplifier	+85 °C	41.5mm	52.32mm	52.32 x 41.5 x 6.6mm	双	63V/µs	1	113 dB	30	PDIP	±75V	Y	-	-

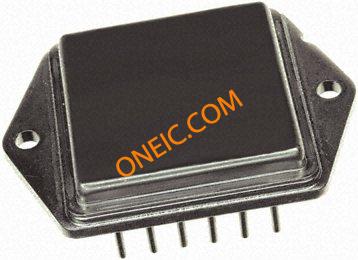

PA03 PA03, Operational Amplifier High Voltage, 1MHz, 12-Pin DIP Apex	10	1: ¥3,604.00	8V/µs	±50V	Dual	1	1MHz	102 dB	8.3mm	Through Hole	DIP	12	High Voltage	+85 °C	41.4mm	58.65mm	58.65 x 41.4 x 8.3mm	-	-	-	-	-	-	-	-	-	-
PA91 PA91, Operational Amplifier Linear 100MHz, 12-Pin SIP Apex	10	1: ¥1,183.20	300V/µs	±150V	Dual	1	100MHz	111 dB	21.84mm	Through Hole	SIP	12	Linear Amplifier	+85 °C	-	-	-	-	-	-	-	-	-	-	-	-	-
2 PA75CD PA75CD, Dual Operational Amplifier High Power, 1.4MHz, 30V, 7-Pin TO-220 Apex 双高功率运算放大器, 1.4MHz, 30 V, 7针 TO-220 Apex	10	1: ¥197.13	1.4V/µs	±15V	Dual, Single	2	1.4MHz	100 dB	14.98mm	Through Hole	TO-220	7	High Power	+85 °C	4.83mm	10.54mm	10.54 x 4.83 x 14.98mm	双，单	1.4V/µs	2	100 dB	7	TO-220	±15V	-	22nV/√Hz	22nV/√Hz
2 PA10 PA10, Operational Amplifier High Voltage, 4MHz, 8-Pin TO-3 Apex 高电压运算放大器, 4MHz, 8针 TO-3 Apex	10	1: ¥952.82	3V/µs	±40V	Dual	1	4MHz	110 dB	6.4mm	Through Hole	TO-3	8	High Voltage	+85 °C	25.4mm	38.9mm	38.9 x 25.4 x 6.4mm	双	3V/µs	1	110 dB	8	TO-3	±40V	-	-	-
2 PA85 PA85, Operational Amplifier Linear 100MHz, 8-Pin TO-3 Apex 运算放大器, 100MHz, 8针 TO-3 Apex	39	1: ¥1,785.00	1000V/µs	±150V	Dual	1	100MHz	111 dB	6.4mm	Through Hole	TO-3	8	Linear Amplifier	+85 °C	25.4mm	38.9mm	38.9 x 25.4 x 6.4mm	双	1000V/µs	1	111 dB	8	TO-3	±150V	-	-	-
2 PA75CC PA75CC, Dual Operational Amplifier High Power, 1.4MHz, 30V, 7-Pin DDPAK Apex 双高功率运算放大器, 1.4MHz, 30 V, 7针 D2PAK Apex	10	1: ¥153.00	1.4V/µs	±15V	Dual, Single	2	1.4MHz	100 dB	4.57mm	Surface Mount	DDPAK	7	High Power	+85 °C	10.19mm	10.31mm	10.31 x 10.19 x 4.57mm	双，单	1.4V/µs	2	100 dB	7	D2PAK	±15V	-	22nV/√Hz	22nV/√Hz
2 PA119CE PA119CE, Operational Amplifier High Voltage, 100MHz, 8-Pin TO-3 Apex 高电压运算放大器, 100MHz, 8针 TO-3 Apex	10	1: ¥2,856.01	900V/µs	±35V	Dual	1	100MHz	111 dB	6.4mm	Through Hole	TO-3	8	High Voltage	+85 °C	25.4mm	38.9mm	38.9 x 25.4 x 6.4mm	双	900V/µs	1	111 dB	8	TO-3	±35V	-	-	-
2 PA07 PA07, Operational Amplifier High Voltage, 1.3MHz, 8-Pin TO-3 Apex 高电压运算放大器, 1.3MHz, 8针 TO-3 Apex	10	1: ¥1,319.59	5V/µs	±35V	Dual	1	1.3MHz	95 dB	6.4mm	Through Hole	TO-3	8	High Voltage	+85 °C	25.4mm	38.9mm	38.9 x 25.4 x 6.4mm	双	5V/µs	1	95 dB	8	TO-3	±35V	-	-	-
PA02 PA02, Operational Amplifier High Current, 4.5MHz, 8-Pin TO-3 Apex	10	1: ¥785.40	20V/µs	±15V	Dual	1	4.5MHz	103 dB	6.4mm	Through Hole	TO-3	8	High Current	+85 °C	25.4mm	38.9mm	38.9 x 25.4 x 6.4mm	-	-	-	-	-	-	-	-	-	-
2 PA02A PA02A, Operational Amplifier High Current, 4.5MHz, 8-Pin TO-3 Apex 高电流运算放大器, 4.5MHz, 8针 TO-3 Apex	10	1: ¥744.60	20V/µs	±15V	Dual	1	4.5MHz	103 dB	6.4mm	Through Hole	TO-3	8	High Current	+125 °C	25.4mm	38.9mm	38.9 x 25.4 x 6.4mm	双	20V/µs	1	103 dB	8	TO-3	±15V	Y	-	-
2 PA92 PA92, Operational Amplifier Linear 18MHz, 12-Pin SIP Apex 运算放大器, 18MHz, 12针 SIP Apex	25	1: ¥1,750.58	50V/µs	±150V	Dual	1	18MHz	111 dB	21.84mm	Through Hole	SIP	12	Linear Amplifier	+85 °C	-	-	-	双	50V/µs	1	111 dB	12	SIP	±200V	-	-	-
2 PA09 PA09, Operational Amplifier High Voltage, 150MHz, 8-Pin TO-3 Apex 高电压运算放大器, 150MHz, 8针 TO-3 Apex	10	1: ¥2,253.27	225V/µs	±35V	Dual	1	150MHz	98 dB	6.4mm	Through Hole	TO-3	8	High Voltage	+85 °C	25.4mm	38.9mm	38.9 x 25.4 x 6.4mm	双	225V/µs	1	98 dB	8	TO-3	±35V	-	-	-
2 PA01 PA01, Operational Amplifier High Voltage, 1MHz, 8-Pin TO-3 Apex 高电压运算放大器, 1MHz, 8针 TO-3 Apex	10	1: ¥1,072.98	2.6V/µs	±28V	Dual	1	1MHz	113 dB	6.4mm	Through Hole	TO-3	8	High Voltage	+85 °C	25.4mm	38.9mm	38.9 x 25.4 x 6.4mm	双	2.6V/µs	1	113 dB	8	TO-3	±28V	-	-	-
2 PA04 PA04, Operational Amplifier High Voltage, 2MHz, 12-Pin DIP Apex 高电压运算放大器, 2MHz, 12针 PDIP Apex	10	1: ¥3,332.56	50V/µs	±75V	Dual	1	2MHz	102 dB	6.8mm	Through Hole	DIP	12	High Voltage	+85 °C	41.4mm	58.65mm	58.65 x 41.4 x 6.8mm	双	50V/µs	1	102 dB	12	PDIP	±75V	-	-	-
2 PA08 PA08, Operational Amplifier High Voltage, 5MHz, 8-Pin TO-3 Apex 高电压运算放大器, 5MHz, 8针 TO-3 Apex	10	1: ¥1,405.62	30V/µs	±100V	Dual	1	5MHz	118 dB	6.4mm	Through Hole	TO-3	8	High Voltage	+85 °C	25.4mm	38.9mm	38.9 x 25.4 x 6.4mm	双	30V/µs	1	118 dB	8	TO-3	±100V	-	-	-

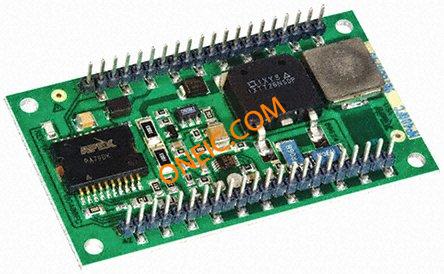

2 MP400FC MP400FC, Operational Amplifier High Voltage, 1MHz, 10 to 50V, 42-Pin DIP Apex 高电压运算放大器, 1MHz, 10 → 50 V, 42针 PDIP Apex	10	1: ¥1,371.58	350V/µs	10 → 50 V	Single	1	1MHz	120 dB	6.6mm	Through Hole	DIP	42	High Voltage	+70 °C	41.4mm	73.4mm	73.4 x 41.4 x 6.6mm	单	350V/µs	1	120 dB	42	PDIP	-	Y	-	-
PA12A PA12A, Operational Amplifier High Voltage, 4MHz, 8-Pin TO-3 Apex	10	1: ¥890.80	4V/µs	±40V	Dual	1	4MHz	110 dB	6.4mm	Through Hole	TO-3	8	High Voltage	+85 °C	25.4mm	38.9mm	38.9 x 25.4 x 6.4mm	-	-	-	-	-	-	-	-	-	-

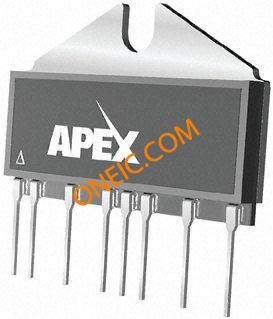

2 PA94 PA94, Operational Amplifier Linear 140MHz, 8-Pin SIP Apex 运算放大器, 140MHz, 8针 SIP Apex	10	1: ¥1,530.00	700V/µs	±300V	Dual	1	140MHz	115 dB	21.84mm	Through Hole	SIP	8	Linear Amplifier	+85 °C	-	-	-	双	700V/µs	1	115 dB	8	SIP	±300V	-	-	-

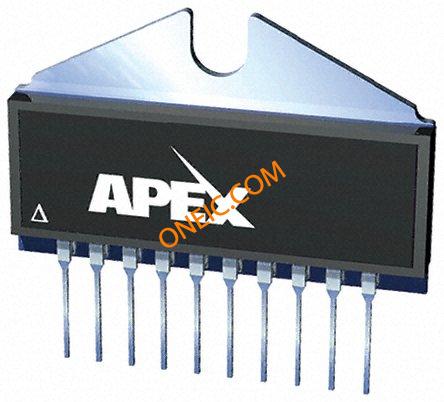

2 PA15FL PA15FL, Operational Amplifier High Voltage, 5.8MHz, 10-Pin SIP Apex 高电压运算放大器, 5.8MHz, 10针 SIP Apex	24	1: ¥1,511.28	20V/µs	±150V	Dual	1	5.8MHz	111 dB	22.35mm	Through Hole	SIP	10	High Voltage	+85 °C	6.86mm	30.99mm	30.99 x 6.86 x 22.35mm	双	20V/µs	1	111 dB	10	SIP	±150V	Y	-	-
