Printed Circuit Boards
cif- Printed Circuit Boards
Printed Circuit Boards - 型号列表
83 parts in total| Mfr Part # | Quantity Available | Price | Width | Length | Thickness | Primary Material | Size / Dimension | Number of Positions | Copper Ports | Material Flammability Rating | SVHC | Tariff No | Weight | Material | Footprint | Height (Max) | Material - Body | Board Thickness | Height | Number of Positions Loaded | Pitch | Hole Diameter | Pitch - Post | Material Finish | Material Thickness | Number of Layers | Mounting Hole Diameter | Type | Active Area |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

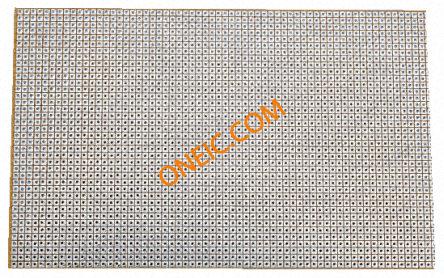

 AJP20 AJP20, Single Sided Matrix Board FR2 With 1mm Holes 2.54 x 2.54mm Pitch, 220 x 100 x 1.6mm TINNER COPPER BAKELITE PADS 1 SIDE CIF | 838 | 1: ¥70.006 | 100mm | 220mm | 1.6mm | Synthetic Resin Bonded Paper | 220 x 100 x 1.6mm | 1 | 35µm | FR2 | :No SVHC (20-Jun-2013) | 85340090 | 0.037 | :Bakelite 35µm | :- | :200mm | :Bakelite | - | :200mm | - | 2.54 x 2.54mm | 1mm | - | - | - | - | :1mm | :Prototype Board | - |
 | 117 | 1: ¥499.902 | 100mm | 160mm | 1.6mm | Epoxy Glass Fabric Laminate | 160 x 100 x 1.6mm | 1 | 35µm | FR4 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 AA20 AA20, Single Sided Photoresist Board FR4 35μm Copper Thick, 300 x 200 x 1.6mm PCB, PRESENSITIZED, EPOXY, 1F, 200X300 CIF 单面 感光保护膜板, FR4, FR4, 35μm铜, 300 x 200 x 1.6mm CIF | 56 | 1: ¥119.18 | 200mm | 300mm | 1.6mm | Epoxy Glass Fabric Laminate | 300 x 200 x 1.6mm | 1 | 35µm | FR4 | :No SVHC (20-Jun-2013) | 85340011 | 0.22 | :Epoxy Single Sided | :- | :200mm | :Epoxy Single Sided | :Prototype Board | :200mm | :1 | - | - | - | :- | - | - | - | - | - |
AA760 AA760, Single Sided Photoresist Board FR4 35μm Copper Thick, 600 x 300 x 1.6mm PCB, PRESENSITSD, EPOXY, 1S, 300X600 CIF 单面 感光保护膜板, FR4, FR4, 70μm铜, 600 x 300 x 1.6mm CIF | 10 | 1: ¥342.06 | 300mm | 600mm | 1.6mm | Epoxy Glass Fabric Laminate | 600 x 300 x 1.6mm | 1 | 35µm | FR4 | :No SVHC (20-Jun-2013) | 85340011 | 7.8 | :Epoxy | :- | :300mm | :Epoxy | :Prototype Board | - | - | - | - | - | - | - | - | - | - | - |
AJP58 AJP58, Single Sided Matrix Board FR2 With 1mm Holes 2.54 x 2.54mm Pitch, 580 x 100 x 1.6mm RPB PAD, PROTOBOARD, 100X580 CIF 单面 矩阵板, FR2, 1mm孔直径, 2.54 x 2.54mm孔间距, 580 x 100 x 1.6mm CIF | 12 | 1: ¥153.75 | 100mm | 580mm | 1.6mm | Synthetic Resin Bonded Paper | 580 x 100 x 1.6mm | 1 | 35µm | FR2 | :No SVHC (20-Jun-2013) | 85340019 | 0.12 | :Resin Bonded Paper | :- | :100mm | :Bakelite | :Prototype Board | :100mm | :1 | 2.54 x 2.54mm | 1mm | :2.54mm | - | - | - | - | - | :2 |
AA720 AA720, Single Sided Photoresist Board FR4 70μm Copper Thick, 300 x 200 x 1.6mm PCB, PRESENSITSD, EPOXY, 1S, 200X300 CIF 单面 感光保护膜板, FR4, FR4, 70μm铜, 300 x 200 x 1.6mm CIF | 16 | 1: ¥177.42 | 200mm | 300mm | 1.6mm | Epoxy Glass Fabric Laminate | 300 x 200 x 1.6mm | 1 | 70µm | FR4 | :No SVHC (20-Jun-2013) | 85340011 | 2.2 | :Epoxy | :- | :200mm | :Epoxy | :Prototype Board | - | - | - | - | - | - | - | - | - | - | - |
AA60 AA60, Single Sided Photoresist Board FR4 35μm Copper Thick, 600 x 300 x 1.6mm PCB, PRESENSITIZED, EPOXY, 1F, 300X600 CIF 单面 感光保护膜板, FR4, FR4, 35μm铜, 600 x 300 x 1.6mm CIF | 10 | 1: ¥391.84 | 300mm | 600mm | 1.6mm | Epoxy Glass Fabric Laminate | 600 x 300 x 1.6mm | 1 | 35µm | FR4 | :No SVHC (20-Jun-2013) | 85340011 | 0.052 | :Epoxy Single Sided | :- | :300mm | :Epoxy Single Sided | :Prototype Board | :300mm | :1 | - | - | - | - | - | - | - | - | - |
| 10 | 1: ¥5,921.10 | 300mm | 600mm | 1.6mm | Epoxy Glass Fabric Laminate | 600 x 300 x 1.6mm | 2 | 35µm | FR4 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 AJB16 AJB16, Single-Sided Stripboard Thermoplastic 160 x 100 x 1.5mm PCB,PROTOTYPE BOARD, 100X160 CIF , 单面 连孔万能板, 热塑塑料基体材质, 160 x 100 x 1.5mm CIF | 298 | 1: ¥55.89 | 100mm | 160mm | 1.5mm | Thermoplastic | 160 x 100 x 1.5mm | 1 | 35µm | - | :No SVHC (20-Jun-2013) | 85340019 | 0.02 | :Resin Bonded Paper | :- | :100mm | :Tinned Copper | :Prototype Board | :100mm | :1 | 2.54 x 2.54mm | 1mm | :2.54mm | - | - | - | - | - | - |
 | 113 | 1: ¥518.534 | 160mm | 510mm | 1.6mm | Epoxy Glass Fabric Laminate | 510 x 160 x 1.6mm | 1 | 35µm | FR4 | - | - | - | - | - | - | - | - | - | - | 2.54 x 2.54mm | 1mm | - | - | - | - | - | - | - |

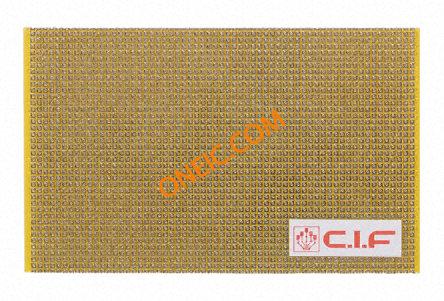

 AGP30 AGP30, Single Sided Matrix Board FR4 With 1mm Holes 2.54 x 2.54mm Pitch, 300 x 160 x 1.6mm PAD, PROTOBOARD, 160X300, 1F CIF 单面 矩阵板, FR4, 1mm孔直径, 2.54 x 2.54mm孔间距, 300 x 160 x 1.6mm CIF | 95 | 1: ¥287.64 | 160mm | 300mm | 1.6mm | Epoxy Glass Fabric Laminate | 300 x 160 x 1.6mm | 1 | 35µm | FR4 | :No SVHC (20-Jun-2013) | 39235090 | 0.052 | :Fibreglass Epoxy | :- | :160mm | :Epoxy Fibreglass | :Prototype Board | - | :1 | 2.54 x 2.54mm | 1mm | :0.54mm | - | - | - | - | - | - |
AA716 AA716, Single Sided Photoresist Board FR4 35μm Copper Thick, 160 x 100 x 1.6mm PCB, PRESENSITSD, EPOXY, 1S, 100X160 CIF 单面 感光保护膜板, FR4, FR4, 70μm铜, 160 x 100 x 1.6mm CIF | 14 | 1: ¥73.01 | 100mm | 160mm | 1.6mm | Epoxy Glass Fabric Laminate | 160 x 100 x 1.6mm | 1 | 35µm | FR4 | :No SVHC (20-Jun-2013) | 85340011 | 0.6 | :Epoxy | :- | :100mm | :Epoxy | :Prototype Board | - | - | - | - | - | - | - | - | - | - | - |
AB16 AB16, Double Sided Photoresist Board FR4 35μm Copper Thick, 160 x 100 x 1.6mm PCB, PRESENSITIZED, EPOXY, 2F, 100X160 CIF | 348 | 1: ¥433.772 | 100mm | 160mm | 1.6mm | Epoxy Glass Fabric Laminate | 160 x 100 x 1.6mm | 2 | 35µm | FR4 | :No SVHC (20-Jun-2013) | 85423190 | 0.052 | :Epoxy Double Sided | :- | :100mm | :Epoxy Double Sided | :Prototype Board | :100mm | :2 | - | - | - | :- | - | - | - | - | - |
 AE16 AE16, Double-Sided Plain Copper Ink Resist Board FR4 With 35μm Copper Thick, 100 x 160 x 1.6mm CIF 双面 纯铜耐油墨板, FR4, 35μm铜, 100 x 160 x 1.6mm CIF | 69 | 1: ¥32.01 | 160mm | 100mm | 1.6mm | Epoxy Glass Fabric Laminate | 100 x 160 x 1.6mm | 2 | 35µm | FR4 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 35µm | 2 | - | - | - |
AB60 AB60, Double Sided Photoresist Board FR4 35μm Copper Thick, 600 x 300 x 1.6mm PCB, PRESENSITIZED, EPOXY, 2F, 300X600 CIF | 28 | 1: ¥3,752.784 | 300mm | 600mm | 1.6mm | Epoxy Glass Fabric Laminate | 600 x 300 x 1.6mm | 2 | 35µm | FR4 | :No SVHC (20-Jun-2013) | 85340011 | 0.052 | :Epoxy Double Sided | :- | :300mm | :Epoxy Double Sided | :Prototype Board | :300mm | :2 | - | - | - | - | - | - | - | - | - |
AJB22 AJB22, Single-Sided Stripboard Thermoplastic 100 x 220 x 1.5mm RBP STRIP, PROTOBOARD, 100X220 CIF , 单面 连孔万能板, 热塑塑料基体材质, 100 x 220 x 1.5mm CIF | 334 | 1: ¥84.71 | 220mm | 100mm | 1.5mm | Thermoplastic | 100 x 220 x 1.5mm | 1 | 35µm | - | :No SVHC (20-Jun-2013) | 85340019 | 0.04 | :Resin Bonded Paper | :- | :100mm | :Resin Bonded Paper | :Prototype Board | :100mm | :1 | 2.54 x 2.54mm | 1mm | :2.54mm | - | - | - | - | - | - |
AA16 AA16, Single Sided Photoresist Board FR4 35μm Copper Thick, 160 x 100 x 1.6mm CIF 单面 感光保护膜板, FR4, FR4, 35μm铜, 160 x 100 x 1.6mm CIF | 99 | 1: ¥39.54 | 100mm | 160mm | 1.6mm | Epoxy Glass Fabric Laminate | 160 x 100 x 1.6mm | 1 | 35µm | FR4 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 35µm | 1 | - | - | - |
| 10 | 1: ¥4,839.084 | 160mm | 510mm | 1.6mm | Epoxy Glass Fabric Laminate | 510 x 160 x 1.6mm | 1 | 35µm | FR4 | - | - | - | - | - | - | - | - | - | - | 2.54 x 2.54mm | 1mm | - | - | - | - | - | - | - |
AB720 AB720, Double Sided Photoresist Board FR4 35μm Copper Thick, 300 x 200 x 1.6mm PCB, PRESENSITSD, EPOXY, 2S, 200X300 CIF 双面 感光保护膜板, FR4, FR4, 70μm铜, 300 x 200 x 1.6mm CIF | 12 | 1: ¥255.27 | 200mm | 300mm | 1.6mm | Epoxy Glass Fabric Laminate | 300 x 200 x 1.6mm | 2 | 35µm | FR4 | :No SVHC (20-Jun-2013) | 85340011 | 2.6 | :Epoxy | :- | :200mm | :Epoxy | :Prototype Board | - | - | - | - | - | - | - | - | - | - | - |
| 100 | 1: ¥602.548 | 100mm | 220mm | 1.6mm | Epoxy Glass Fabric Laminate | 220 x 100 x 1.6mm | 2 | 35µm | FR4 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
