10226-2200PE
| Manufacturer | |
| Description | D-Sub Micro-D Connectors 26P BDMNT RECEP VERT SMT Boardmount Receptacle, Surface Mount, Vertical, Shielded CONN MINI-D 26POS VERT RECPT Receptacle MDR PCB SMT straight 26 pin RECEPTACLE, VERT, SMT, 26WAY RECEPTACLE, MINI D RIBBON, SMT, 26WAY MatingConnector,26positionMDRSocket,Straight,SurfaceMount 3M MDR 102 系列 1.27mm 节距 26 路 直向 表面安装 Micro-D 印刷电路板连接器 插座 |
| Category |
Business
| Part # Aliases | 54745250804 JE150343711 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 1 A |
Mechanical
| Depth | 10.1mm | Pitch | 1.27mm |
| Width | 11mm | Length | 37.21mm |
| Weight | 0.03 | Termination | Solder |
| Mounting Type | Straight | Shell Plating | Nickel |
| Connector Type | Receptacle | Contact Finish | Gold |
| Flange Feature | Insert, Threaded (M2.6); Latchblocks | Mounting Style | SMD/SMT |
| Number of Rows | 2 | Plating - Body | :Nickel |
| Shell Material | Zinc Alloy | Connector Style | Outer Shroud Contacts |
| Contact Material | Copper Alloy | Housing Material | Zinc Alloy |
| Size / Dimension | 37.21 x 11 x 10.1mm | Termination Style | Solder |
| Color - Connectors | :Beige | Number of Contacts | 26 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 26 |
| Contact Finish Thickness | 20µin (0.51µm) | 1st Connector Mounting Type | :PCB |
Product Info
| Gender | Female | Series | 102 |
| Features | Board Guide, Shielded | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts

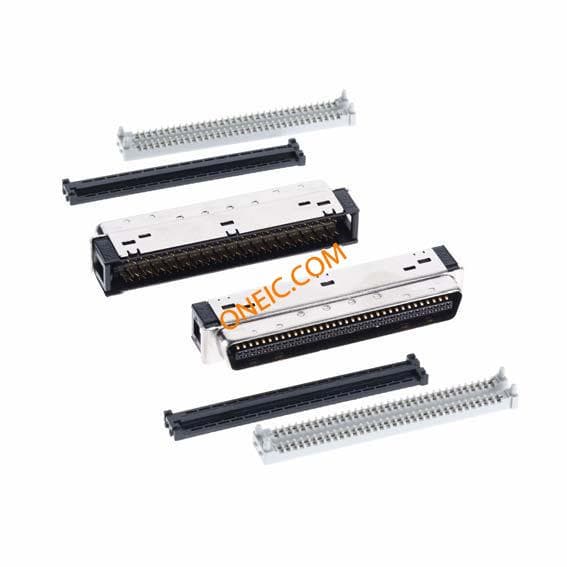

10126-6000EC
