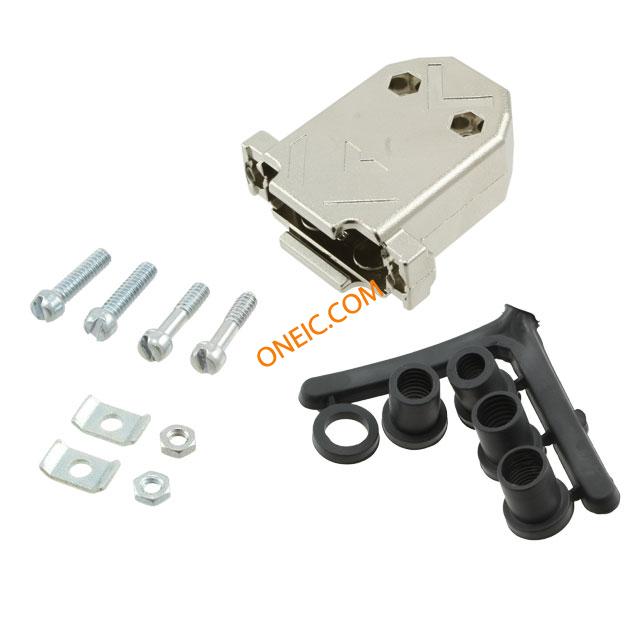

3357-6215-1C
| Manufacturer | |
| Description | D-Sub Backshells 15P EMI JNCTN SHELL MTALIZD PLASTIC EMI Junction Shell, Metalized Plastic CONN D-SUB SHELL 15POS PLASTIC BACKSHELL, D, SHIELDED, 15WAY D-Sub metallized hood 15P, 3357-6215-1C, 3M |
| Category |
商业参数
| 零件号别名 | 05111164520 80400058329 | 产品类别 | D-Sub Backshells |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 HB | ||
机械参数
| 颜色 | Silver | 重量 | 5 lbs |
| 镀层 | Nickel over Copper | 材料（通用） | ABS |
| 屏蔽 | Shielded | 出线方向 | 180° |
| 电缆类型 | Round | 外壳镀层 | Nickel over Copper |
| 电缆直径 | 8.9 mm | 电缆端类型 | Straight |
| 外壳材料（壳体） | Acrylonitrile Butadiene Styrene (ABS) | 本体材料 | :ABS (Acrylonitrile Butadiene Styrene) |
| 位数 | 15 | 外壳尺寸-插件 | :D15 |
| 电缆对数 | 1 | ||
产品信息
| 类型 | EMI/RFI Shielded Backshell | 系列 | 3357 |
| 产品特性 | Mating Screws 4-40 | 硬件配件 | Assembly Hardware, Strain Relief |
| 附件类型 | Two Piece Backshell | 适用产品/相关产品 | :D-Subminiature Connector |
环境参数
| 工作温度 | :75°C | ||
