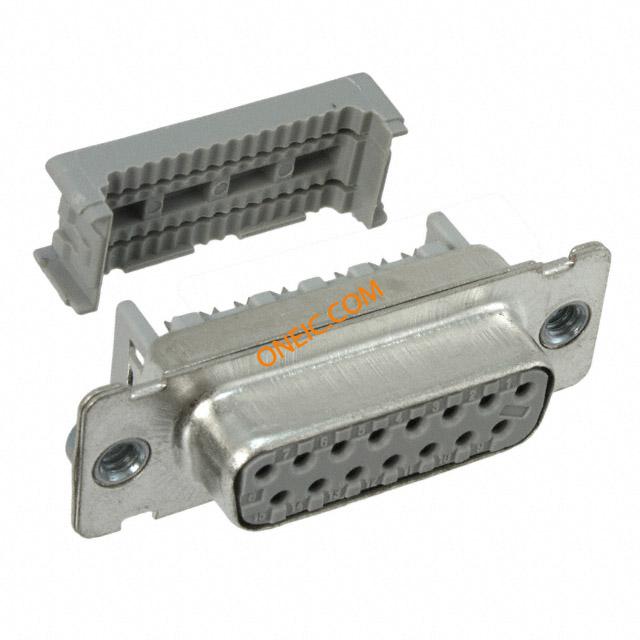

8315-7003
| Manufacturer | |
| Description | D-Sub Standard Connectors 15P CLOSD CVR SOCKET LOW PROFILE Socket Connector CONN D-SUB RCPT 15POS IDC GOLD |
| Category |
商业参数
| 零件号别名 | 05111165738 80610186225 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 最大额定电流 | 1A | ||
机械参数
| 颜色 | Gray | 包装方式 | Bulk |
| 端接方式 | IDC, Ribbon Cable | 触头类型 | Signal |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (4-40) |
| 排数 | 2 | 连接器样式 | D-Sub |
| 壳体材料 | Polyester, Glass Filled | 位数 | 15 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | 30µin (0.76µm) |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
环境参数
| 机械寿命 | Obsolete | 工作温度 | -55°C ~ 105°C |
