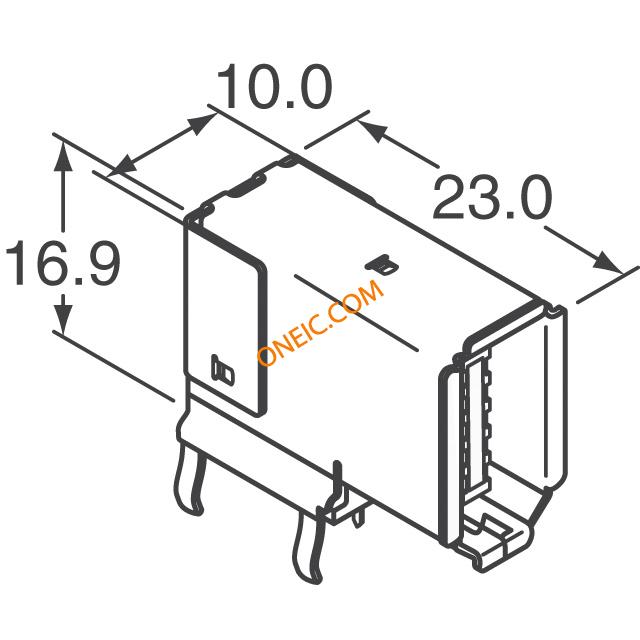

36110-2220PE
| Manufacturer | |
| Description | I/O Connectors SCR RT ANGLE PLUG THRU HOLE Boardmount Right Angle Plug CONN SCR PLUG 10POS R/A T-H GOLD |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 零件号别名 | 54745230530 JE150322574 JE150441044 | 产品类别 | I/O Connectors |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 150 VAC | 最大额定电流 | 1 A |
机械参数
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | SCR |
| 接触镀层 | Gold | 安装样式 | Through Hole |
| 连接器样式 | Plug | 触头材料 | Phosphor Bronze |
| 端接样式 | Solder Pin | 触点数 | 10 |
| 位数 | 10 | 接触镀层厚度 | 20µin (0.51µm) |
产品信息
| 连接器性别 | Male | 产品特性 | Board Guide, EMI Shielded |
环境参数
| 工作温度 | - 55 C to + 85 C | ||
