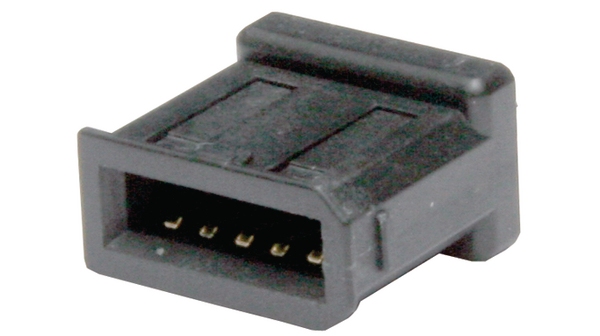

36210-0100FD
| Manufacturer | |
| Description | Conn Shielded Compact Ribbon F 10 POS 2mm Solder Lug ST Cable Mount 10 Terminal 1 Port Wiremount Receptacle CONN SCR RCPT 10POS WIREMNT GOLD I/O Connectors SCR RECEPTACLE WIREMOUNT SHIELDED Cable socket, solder SCR 10P, 36210-0100FD, 3M |
| Category |
商业参数
| 产品 | Micro Ribbon Connectors | 零件号别名 | 54745274783 JE150366894 |
| 产品类别 | I/O Connectors | 标准包装数量 | Bulk |
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 150 V | 极数 | 10 |
| 最大额定电流 | 1 A | ||
机械参数
| 间距 | 2 mm | 包装方式 | Tray |
| 端接方式 | Solder Lug | 安装类型 | Cable Mount |
| 连接器类型 | SCR | 接触镀层 | Gold |
| 安装样式 | Through Hole | 连接器样式 | Receptacle |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 绝缘颜色 | Black | 端接样式 | Solder Tail |
| 触点数 | 10 | 位数 | 10 |
| 接触镀层厚度 | 8µin (0.20µm) | ||
产品信息
| 类型 | Shielded Compact Ribbon | 设计类型 | Cable socket, solder |
| 连接器性别 | F | 系列 | SCR |
| 产品特性 | EMI Shielded | ||
环境参数
| 工作温度 | - 55 c to + 85 C | ||
相关型号

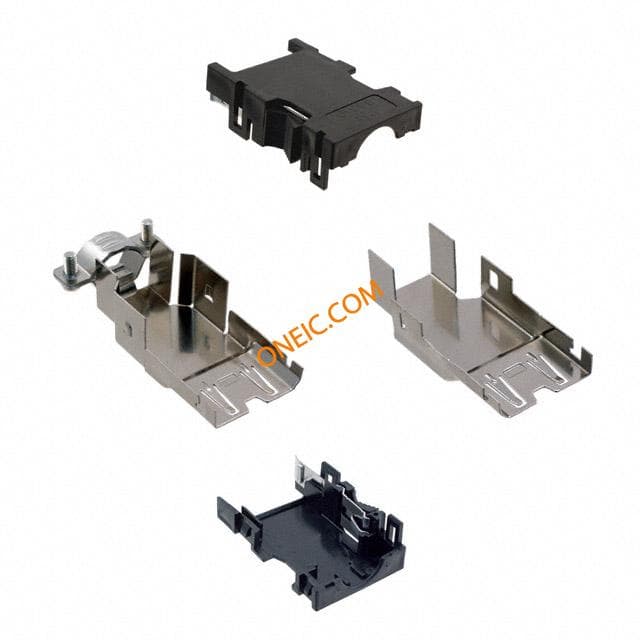

36310-3200-008
3m interconnect solutions
Connector Accessories Receptacle Compact Ribbon Connector Shell Kit Shell Kit for Wiremount Receptacle SCR BACKSHELL FOR WIRE MNT RCPT 3M 363 Series Straight PCB Socket Cable Mount I/O Connectors SHELL KIT FOR WIREMOUNT RECEPT SHELL KIT, RECEPTACLE SocketBackshellKitSCRSeries Hood for socket SCRP, 36310-3200-008, 3M 3M 363 系列 直 电缆安装 印刷电路板插座

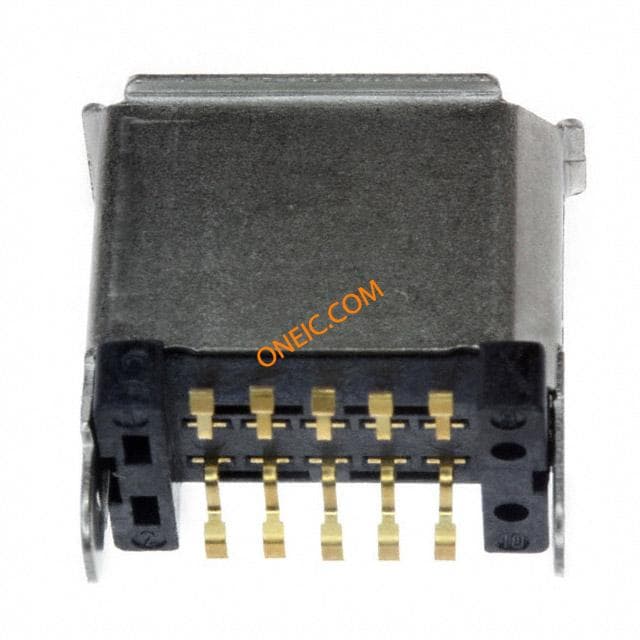

36110-1110PL
3m interconnect solutions
Conn Shielded Compact Ribbon M 10 POS 2mm Solder ST SMD 10 Terminal 1 Port Boardmount Straight Plug CONN SCR PLUG 10POS STR SMD GOLD I/O Connectors SCR VERT PLUG SURFACE MT Plug, SMD SCR 10P, 36110-1110PL, 3M

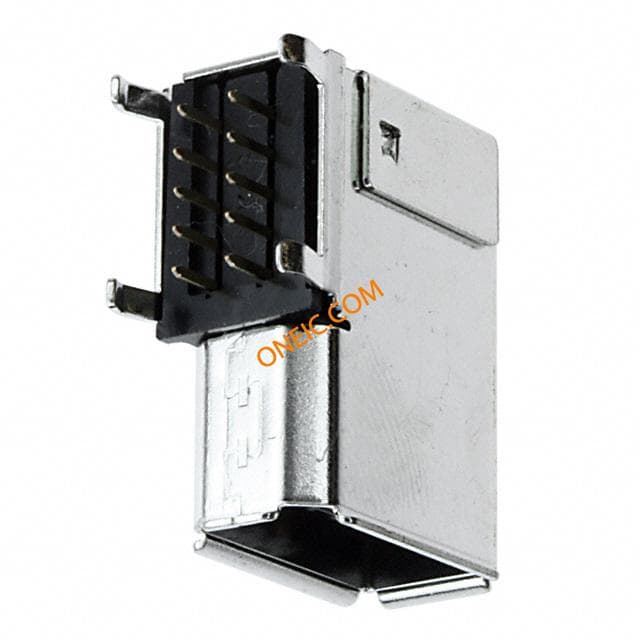

36110-2220PE
3M Electronic Solutions Division
I/O Connectors SCR RT ANGLE PLUG THRU HOLE Boardmount Right Angle Plug CONN SCR PLUG 10POS R/A T-H GOLD

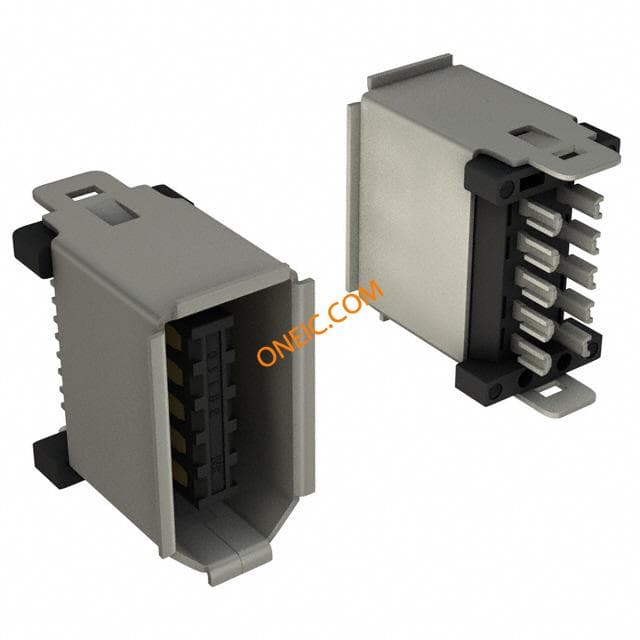

36110-3000FD
