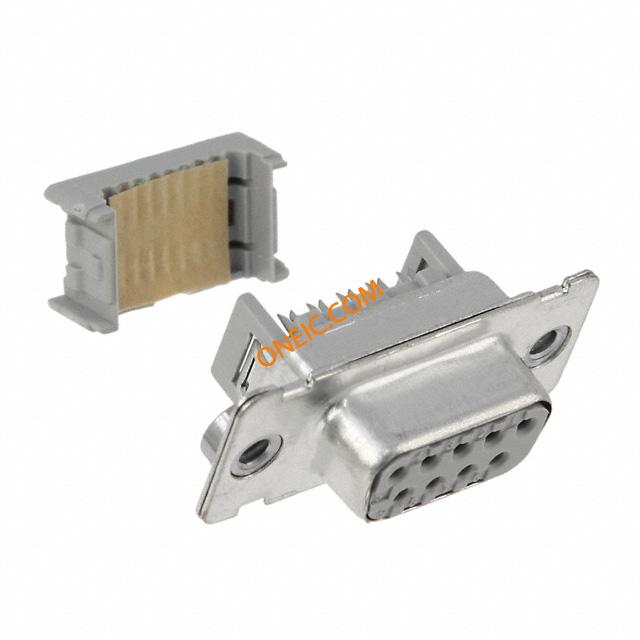

8309-7003
| Manufacturer | |
| Description | D-Sub Standard Connectors 9POS,CLOSED COVER D SUB SOCKET Socket Connector CONN D-SUB RCPT 9POS IDC GOLD |
| Category |
商业参数
| 零件号别名 | 05111165734 80610186126 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Gray | 包装方式 | Bulk |
| 绝缘类型 | Insulated | 端接方式 | IDC, Ribbon Cable |
| 触头类型 | Signal | 安装类型 | Panel Mount |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Nickel, Gold | 法兰特征 | Housing/Shell (4-40) |
| 安装样式 | Panel | 排数 | 2 |
| 外壳材料（壳体） | Stainless Steel | 连接器样式 | D-Sub |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester, Glass Filled |
| 端接样式 | IDC | 触点数 | 9 |
| 绝缘材料 - 类型 | Polybutylene Terephthalate, Glass Filled | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | 30µin (0.76µm) |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
