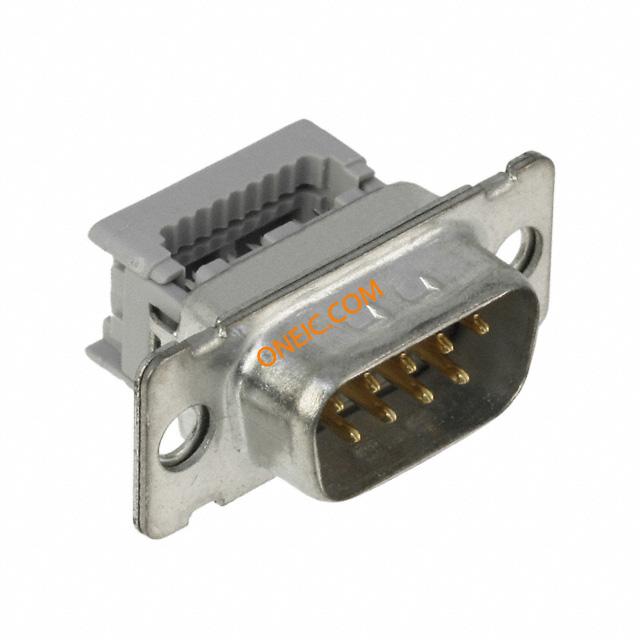

8209-8000
| Manufacturer | |
| Description | Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors 9P OPEN COVER PLUG LOW PROFILE CONN DSUB PLUG 9POS IDC GOLD 9/M/DSUB/PG/OP/PREAS/30AVG 3M 8200 系列 1.27mm 节距 9 路 IDC D-sub 连接器, 插头, 聚碳酸酯 (PBT)外壳 |
| Category |
商业参数
| 零件号别名 | 00189587068 DE610012267 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 200 |
合规参数
| RoHS | RoHS Compliant | 认证机构 | cUL,UL |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Gray | 深度 | 12.4mm |
| 间距 | 2.76 mm | 宽度 | 16.5mm |
| 长度 | 30.9mm | 重量 | 3 lbs |
| 包装方式 | Bulk | 导线线规 | 28-26 |
| 方向 | 直角 | 端接方式 | IDT |
| 触点形式 | Signal | 触头类型 | Signal |
| 安装类型 | Cable Mount | 外壳镀层 | Tin |
| 行程角度 | Straight | 连接器类型 | Plug, Male Pins |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 外壳涂层 | Tin | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester, Glass Filled | 主要材料 | D-Subminiature |
| 尺寸/外形 | 30.9 x 16.5 x 12.4mm | 触点数 | 9 |
| 介电材料 | Polyester | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | 30µin (0.76µm) |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | PIN |
| 系列 | 8200 | 产品特性 | Feed Through, Grounding Indents |
| 主要用途 | Feed Through, Grounding Indents | 制造商全称 | 8200 |
| 输出配置 | Panel Mount | ||
环境参数
| 工作温度 | -55°C ~ 105°C | ||
