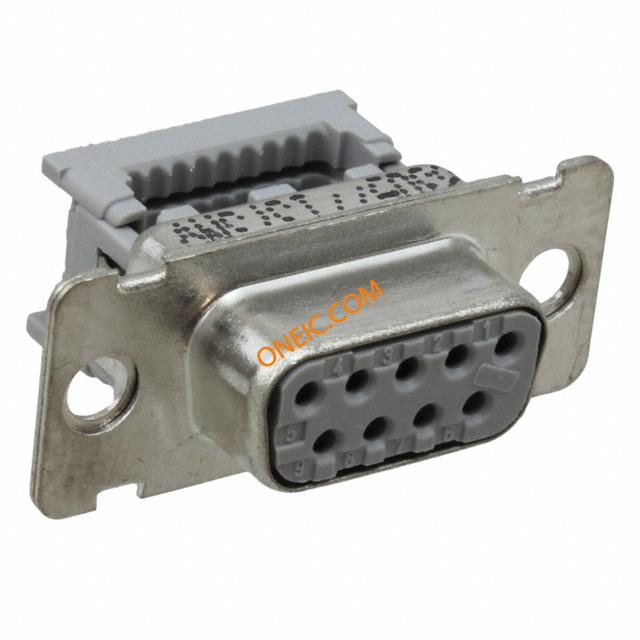

8309-8000
| Manufacturer | |
| Description | Conn D-Subminiature SKT 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors 9P OPEN COVER SOCKET UNTHREADED INSERT CONN D-SUB RCPT 9POS IDC GOLD Socket; 0.12 in. Socket;0.12in. 3M 8300 系列 1.27mm 节距 9 路 IDC D-sub 连接器, 插座, 聚碳酸酯 (PBT)外壳 |
| Category |
商业参数
| 零件号别名 | 04671903117 DE610012689 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 200 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 颜色 | Gray | 深度 | 12.4mm |
| 间距 | 2.76 mm | 宽度 | 16.6mm |
| 长度 | 31.2mm | 重量 | 3.300 lbs |
| 包装方式 | Bulk | 方向 | 直角 |
| 端接方式 | IDT | 触头类型 | Signal |
| 安装类型 | Cable Mount | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Wire |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 触头材料 | Copper Alloy |
| 壳体材料 | Polyester, Glass Filled | 尺寸/外形 | 31.2 x 16.6 x 12.4mm |
| 端接样式 | IDC | 触点数 | 9 |
| 位数 | 9 | 安装孔直径 | 0.12in. |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | 30µin (0.76µm) |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | 8300 | 产品特性 | Feed Through |
环境参数
| 工作温度 | -55°C ~ 105°C | ||
