8309-8009
| Manufacturer | |

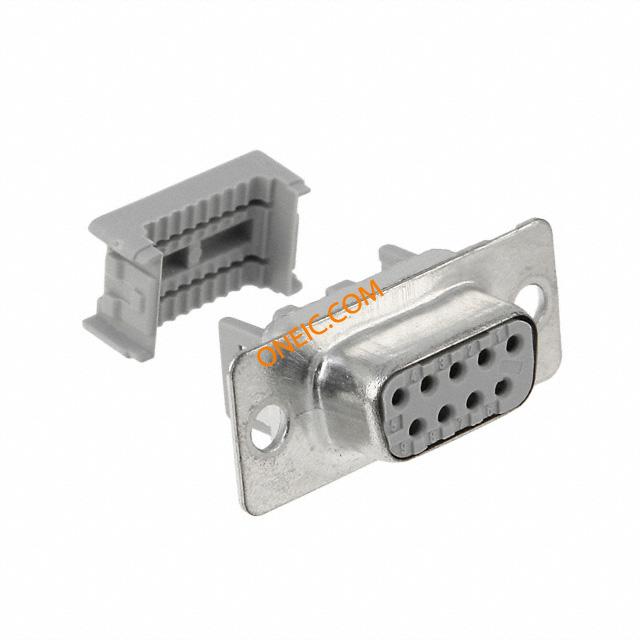

| Description | DELTA 9 F N D-Sub Standard Connectors 9P SOCKET CONN D-SUB RCPT 9POS IDC GOLD SOCKET, D, IDC, 9WAY |
| Category |
商业参数
| 零件号别名 | 04671903119 DE610012705 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 200 | ||
合规参数
| RoHS | No | 海关税号 | 85369010 |
| 认证机构 | :CSA, UL | 材料阻燃等级 | :UL94V-0 |
电气参数
| 量程（°/s） | :3M - D Tin And Dimple | 额定电压 | :350V |
| 接触电阻 | :20mohm | 最大额定电流 | 1 A |
| 触点额定电流 | :2A | ||
机械参数
| 颜色 | Gray | 间距 | 1.384 mm |
| 重量 | 0.006 | 材料（通用） | :Steel |
| 包装方式 | Bulk | 绝缘类型 | Insulated |
| 外壳尺寸 | :DE | 端接方式 | IDC, Ribbon Cable |
| 触头类型 | Signal | 安装类型 | Straight |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 安装样式 | Wire | 排数 | 2 |
| 封装形式 | :Steel, tin Plating over copper | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 本体材料 | :Metal |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester, Glass Filled |
| 端接样式 | IDC | 连接器颜色 | :Grey |
| 触点数 | 9 | 接触件端接 | :IDC / IDT |
| 绝缘材料 - 类型 | Polyester, Glass Filled | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | 30µin (0.76µm) |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 连接器性别 | Female | 系列 | 8300 |
| 产品特性 | Feed Through | ||
