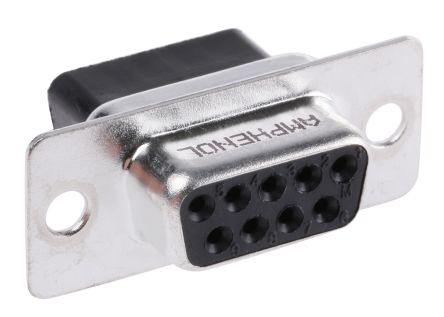

L177RRE09S
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 50 | Unit Pack | 50 |
| Part # Aliases | 01M0374 | Product Category | D-Sub Standard Connectors |
| Standard Package | Trays | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Leadfree Defin | RoHS-conform | Approval Agency | -55 TO 105 |
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 5 A |
| Voltage - Input (Min) | 500VAC | ||
Mechanical
| Depth | 16.68mm | Pitch | 2.77 mm |
| Width | 12.55mm | Height | 15.37 mm |
| Length | 30.81mm | Packaging | Bulk |
| Insulation | Insulated | Shell Size | E |
| Weight (g): | 4.80000 | Contact Type | FEMALE |
| Mounting Type | Straight | Shell Plating | Tin |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Housing Material | Steel |
| Length - Overall | 30.81 | Size / Dimension | 30.81 x 12.55 x 16.68mm |
| Termination Style | Crimp | Number of Contacts | 9 |
| Plating - Thickness | 5.0 | ||
Product Info
| Type | Housing | Gender | SKT |
| Series | RR-HR | Matchcode | L177RRE09S |
| Standard Leadtime | 7 weeks | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | - 55 C to + 105 C |
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- up_200661613243.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
