点击放大查看

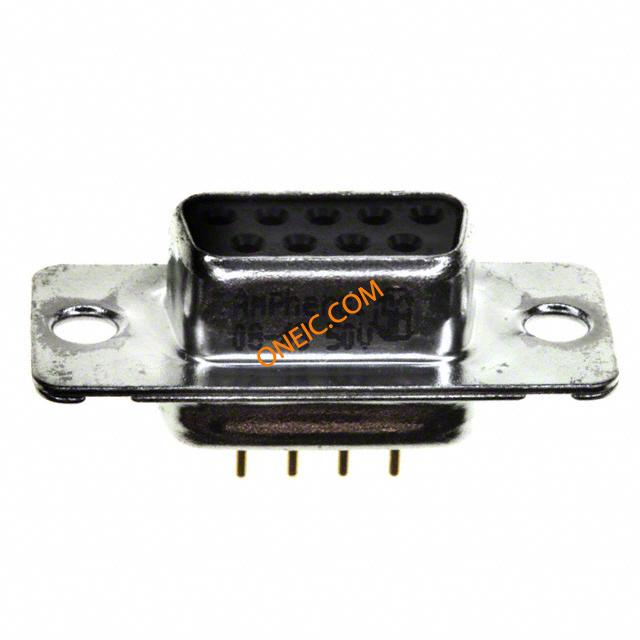

L77DE09SU
| Manufacturer | |
| Description | Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port CONN D-SUB RCPT 9POS GOLD PCB |
| Category |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 300V | 最大额定电流 | 7.5A |
机械参数
| 颜色 | Black | 间距 | 2.74 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Signal | 安装类型 | Through Hole |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 排数 | 2 |
| 连接器样式 | D-Sub | 壳体材料 | Thermoplastic, Glass Filled |
| 位数 | 9 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | 3.9µin (0.10µm) | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
环境参数
| 工作温度 | -55°C ~ 85°C | ||
