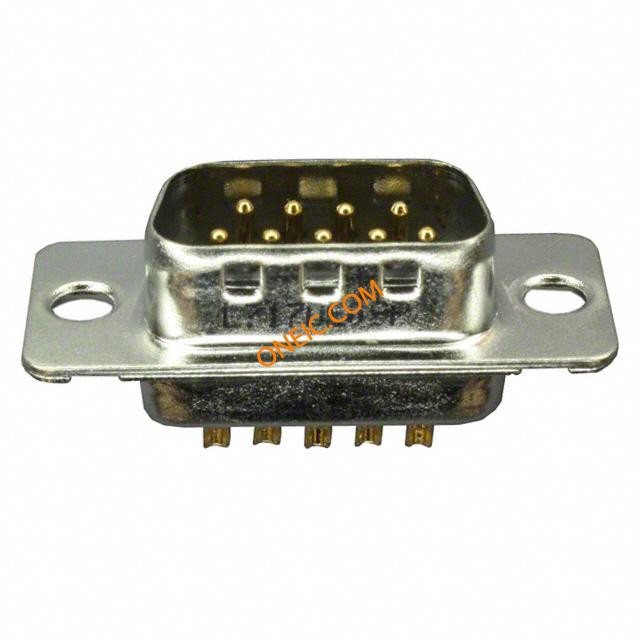

L717DE09P

Manufacturer	Amphenol Corporation
Description	Conn D-Subminiature PIN 9 POS Solder Cup ST Panel Mount 9 Terminal 1 Port CONN DSUB PLUG 9POS SLD CUP GOLD D-Sub male 9P, L717DE09P, Amphenol
Category	连接器解决方案D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bag

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
抗辐射加固	No

电气参数

额定电压	300V	极数	9
最大额定电流	7.5A	最小输入电压	300VAC
最小供电电压	300VAC

机械参数

颜色	Black	高度	12.93 mm
包装方式	Bulk	端接方式	Solder Cup
重量（g）	5.20000	触头类型	Signal
安装类型	Panel Mount	连接器类型	Plug, Male Pins
接触镀层	Gold Over Nickel	法兰特征	Housing/Shell (Unthreaded)
安装样式	Panel	排数	2
连接器样式	D-Sub	触头材料	Brass
壳体材料	Thermoplastic	总长度	31.19 mm
第一触头极性	PIN	触点数	9
位数	9	第一连接器极性	Male
外壳材料及表面处理	Steel, Tin Plated	接触镀层厚度	3.9µin (0.10µm)
外壳尺寸，连接器布局	1 (DE, E)

产品信息

类型	D-Subminiature	连接器性别	PIN
产品特性	Grounding Indents	描述	D-Sub male 9p
端口数	1

环境参数

工作温度

-55°C ~ 85°C

相关型号

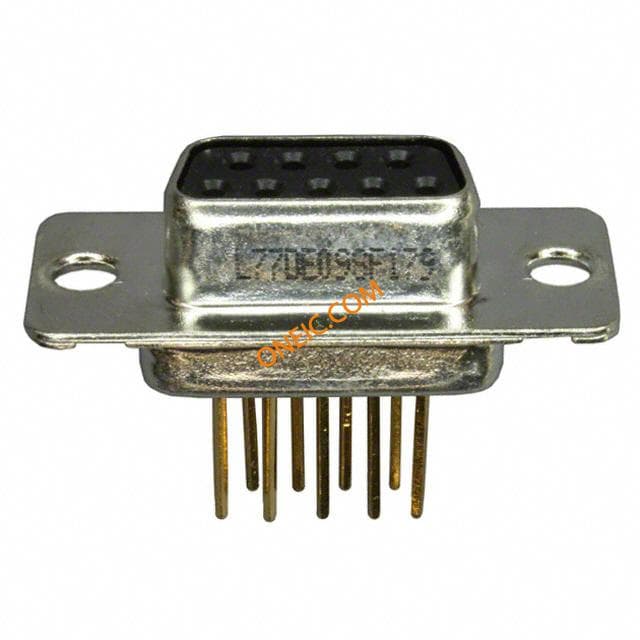

L77DE09SF179A

amphenol canada, corp.

Conn D-Subminiature F 9 POS ST Panel Mount 9 Terminal 1 Port D-Sub Standard Connectors D-SUB CONN D-SUB RCPT 9POS WW GOLD Conn; D-Sub; Socket; 9-Pin; L7 Series; Wire Wrap; Tinned Shell

¥43.1746

详情

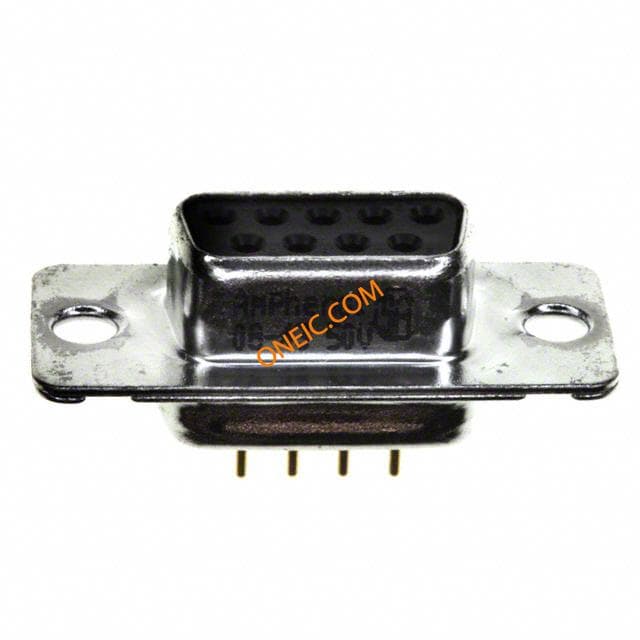

L77DE09SU
