L77SDA15S

Manufacturer	Amphenol Corporation
Description	Conn D-Subminiature SKT 15 POS Solder Cup ST Panel Mount 15 Terminal 1 Port D-Sub Standard Connectors 15P FEMALE CONN D-SUB RCPT 15POS GOLD FLASH D SUB CONNECTOR, STANDARD, 15POS, RCPT Plug; D-Sub; PIN:15; female; soldering; for cable; gold flash; 250V D-Sub female 15P, L77SDA15S, Amphenol
Category	连接器解决方案D-Sub连接器D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

产品类别	D-Sub Standard Connectors	标准包装数量	Trays
工厂包装数量	50

合规参数

RoHS	RoHS Compliant	欧盟RoHS	Compliant
海关税号	85366910	抗辐射加固	No

电气参数

量程（°/s）	:AMPHENOL - 17S Series	额定电压	250 V
接触电阻	20mΩ	最大额定电流	3 A

机械参数

颜色	Black	深度	15.65 mm
间距	2.77 mm	高度	12.55 mm
重量	0	包装方式	Bulk
外壳尺寸	A	端接方式	Solder Cup
触头类型	Signal	安装类型	Panel Mount
外壳镀层	Tin over Steel	连接器类型	Receptacle, Female Sockets
接触镀层	Gold	法兰特征	Housing/Shell (Unthreaded)
安装样式	Panel	排数	2
外壳材料（壳体）	Steel	连接器样式	D-Sub
本体材料	:Metal	触头材料	Brass
壳体材料	Thermoplastic	总长度	39.1 mm
包装数量	50	尺寸/外形	see
连接器 - 电缆	plug	端接样式	Solder
第一触头极性	SKT	触点数	15
接触件端接	:Solder	位数	15
绝缘材料 - 材质	thermoplastic	外壳材料及表面处理	Steel, Tin Plated
接触镀层厚度	Flash	触点材料 - 镀层	gold flash
第一连接器安装类型	:Cable	外壳尺寸，连接器布局	2 (DA, A)

产品信息

SPG	50	类型	D-Subminiature
连接器性别	SKT	系列	D-DF
端口数	1	单元数量	1

环境参数

工作温度

- 55 C to + 125 C

Documents & Media

PDF Document

Amphenol_Distr_Cat_2009.pdf

Online Document

Amphenol Catalog 2009

Online Document

Amphenol_Distr_Cat_2009.pdf#page=7

相关型号

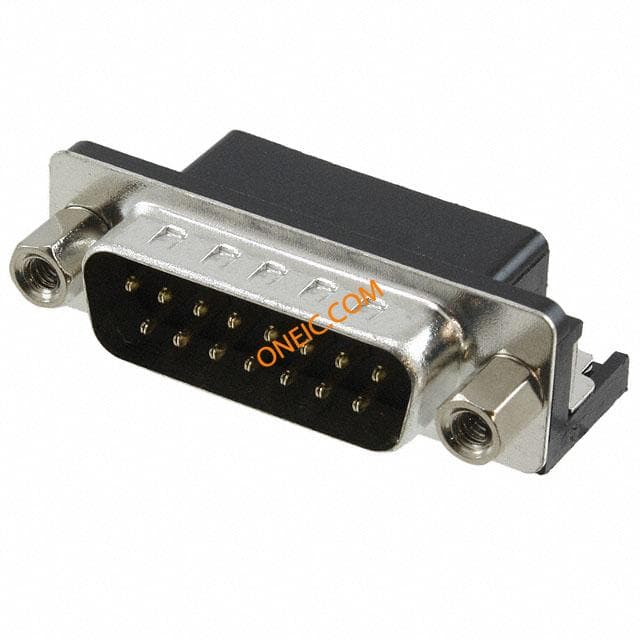

L717SDA15PA4CH4F
