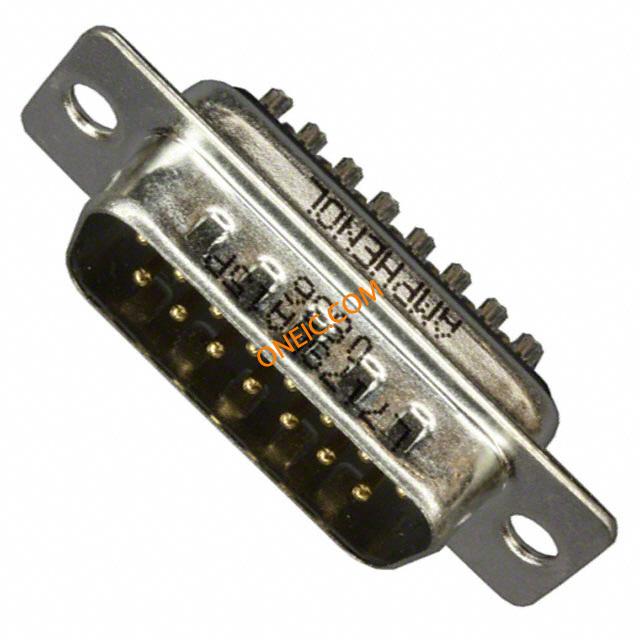

L717SDA15P
| Manufacturer | |
| Description | D-Sub Standard Connectors A15P S/CUP CONN D-SUB PLUG 15POS GOLD FLASH Conn D-Subminiature PIN 15 POS Solder Cup ST Panel Mount 15 Terminal 1 Port D SUB, PLUG, SIZE A, 15WAY SOLDERCUPD-SUB15WPLUG Plug; D-Sub; PIN:15; male; soldering; for cable; gold flash; 250V D-Sub male 15P, L717SDA15P, Amphenol Amphenol 面板安装 DB15 15 路 焊接 D-sub 连接器 插头 , 5A |
| Category |
商业参数
| 产品类别 | D-Sub Standard Connectors | 标准包装数量 | 50 |
| 工厂包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
| 抗辐射加固 | No | ||
电气参数
| 量程（°/s） | :AMPHENOL - SD Series | 额定电压 | 250V |
| 接触电阻 | 20mΩ | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 2.77 mm |
| 宽度 | 12.55mm | 高度 | 12.55 mm |

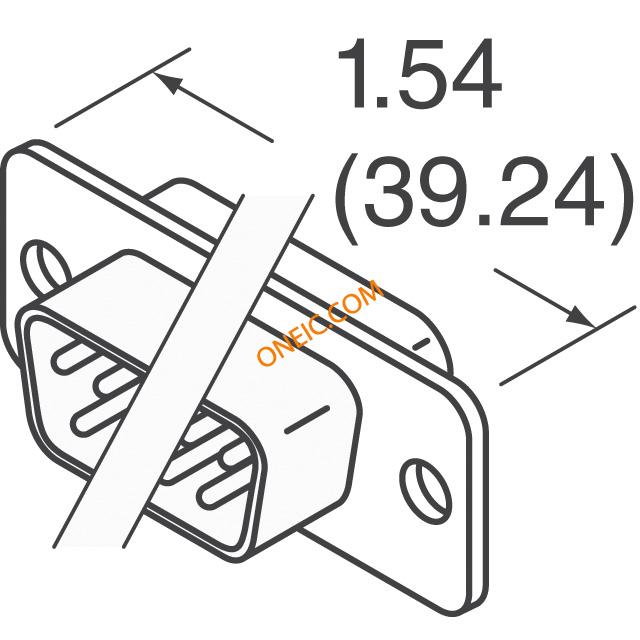

| 长度 | 39.24mm | 重量 | 0.014 |
| 包装方式 | Tray | 外壳尺寸 | A |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Tin over Steel |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Panel |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 触头材料 | Brass |
| 壳体材料 | Thermoplastic, Glass Filled | 总长度 | 39.24 mm |
| 包装数量 | 50 | 尺寸/外形 | see |
| 连接器 - 电缆 | plug | 端接样式 | Solder |
| 触点数 | 15 | 接触件端接 | :Solder |
| 位数 | 15 | 绝缘材料 - 材质 | thermoplastic |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | Flash |
| 触点材料 - 镀层 | gold flash | 外壳尺寸，连接器布局 | 2 (DA, A) |
产品信息
| SPG | 50 | 类型 | D-Subminiature |
| 连接器性别 | Male | 系列 | D-DF |
| 产品特性 | Grounding Indents | 端口数 | 1 Port |
| 单元数量 | 1 | ||
环境参数
| 工作温度 | - 55 C to + 125 C | ||
