点击放大查看

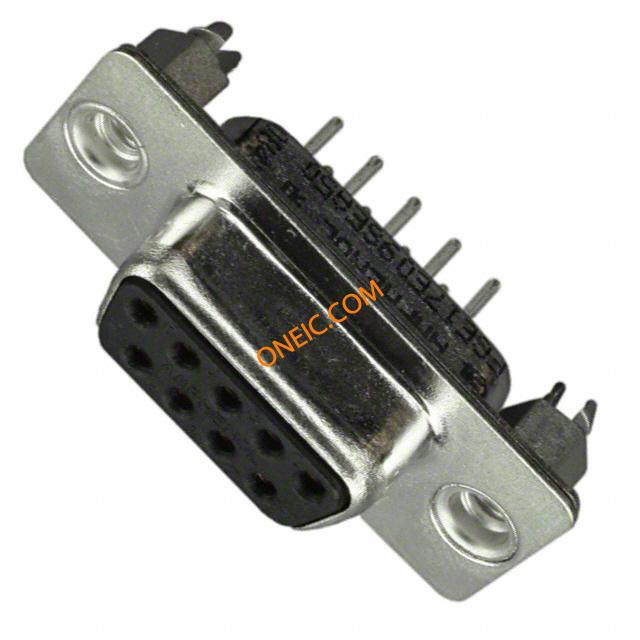

FCE17-E09SE-A50
| Manufacturer | |
| Description | D-Sub Standard Connectors 9P Vert Mt PCB Skt 4-40 Threaded Lock FILTER D-SUB 9POS SCKT VERT Female D-Sub connector 9P, FCE17-E09SE-A50, Amphenol |
| Category |
商业参数
| 其他名称 | FCE17E09SEA50 | 标准包装数量 | 60 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 200 | 极数 | 9 |
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Black | 包装方式 | Tray |
| 绝缘类型 | Insulated | 端接方式 | Solder |
| 触头类型 | Signal | 安装类型 | Right |
| 外壳镀层 | Tin | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Board Side (4-40) |
| 安装样式 | Through Hole | 排数 | 2 |
| 外壳材料（壳体） | Steel | 连接器样式 | D-Sub |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic, Glass Filled |
| 端接样式 | Through Hole | 触点数 | 9 |
| 绝缘材料 - 类型 | Thermoplastic | 位数 | 9 |
| 第一连接器极性 | Female | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | 15µin, 30µin (0.38µm, 0.76µm) | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 连接器性别 | Female | 系列 | FCE17 |
| 产品特性 | Board Lock, Filter | ||
环境参数
| 机械寿命 | New At Mouser | 工作温度 | -40°C ~ 85°C |
Documents & Media
相关型号
FCE17-E09PM-250
Amphenol Commercial Products
D-Sub Standard Connectors D-SUB S/CUP 1000PF FILTER D-SUB 9POS PIN SLD CUP 9w Filter D Solder cup, pins, 1000 pF PLUG, DSUB, 1000PF, STRT, 9WAY Male D-Sub connector 9P, FCE17-E09PM-250, Amphenol Amphenol FCE17 系列 面板安装 DB9 9 路 滤波焊接 D-Sub 连接器 插头 , 5A
FCE17-E09PM-450
amphenol canada, corp.
Conn D-Subminiature PIN 9 POS Solder Cup ST Panel Mount 9 Terminal 1 Port FILTER D-SUB 9POS PIN SLD CUP

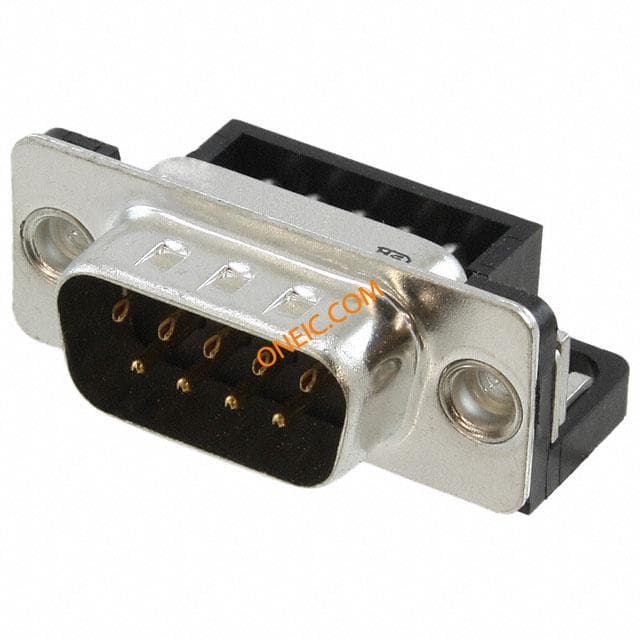

FCE17E09PA440
Amphenol
Conn Filtered D-Sub PIN 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port CONN D-SUB PLUG 9POS R/A GOLD

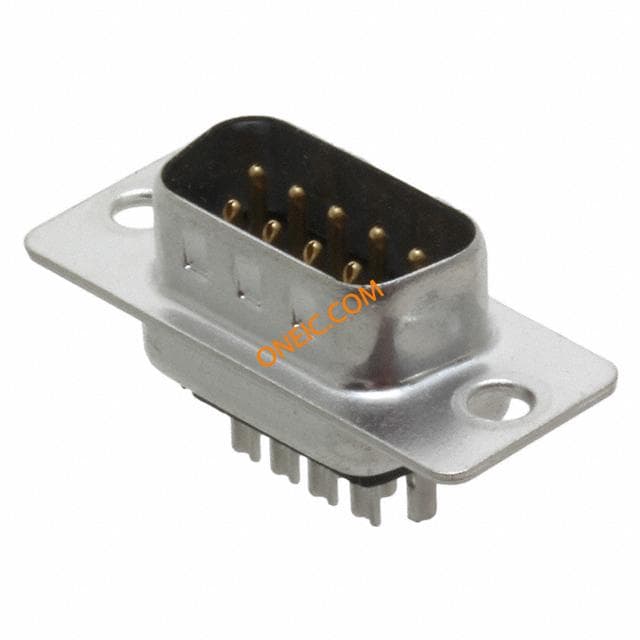

FCE17E09PM210
Amphenol
Conn Filtered D-Sub PIN 9 POS 2.74mm Solder Cup ST Panel Mount 9 Terminal 1 Port CONN D-SUB PLUG 9POS SLD CUP

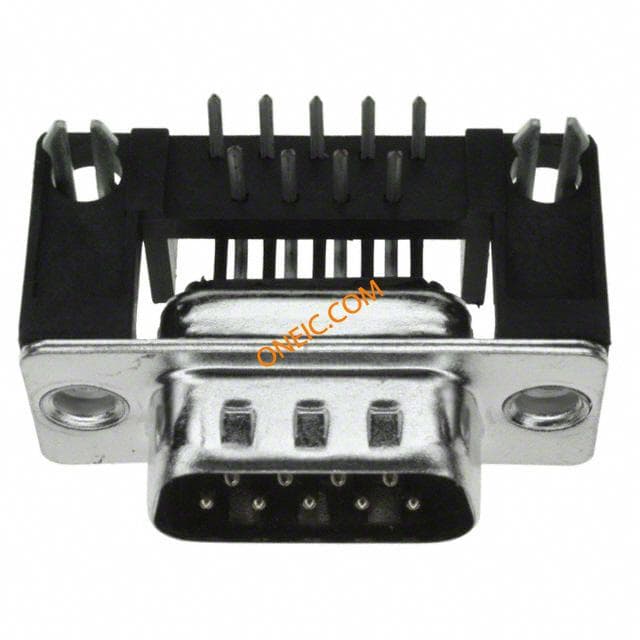

FCE17E09PB440
Amphenol Commercial Products
FILTER D-SUB 9POS PIN .405" R/A

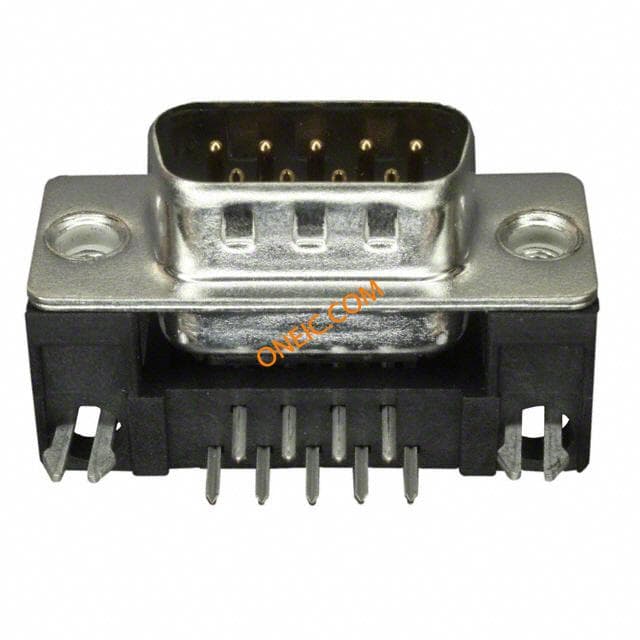

FCE17-E09PA-450
Amphenol Commercial Products
FILTER D-SUB 9POS PIN .318" R/A

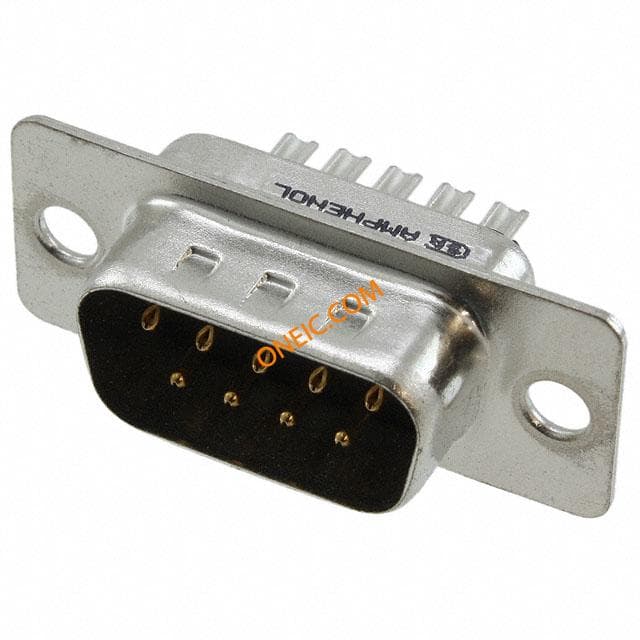

FCE17E09PM240
Amphenol Commercial Products
CONN D-SUB PLUG 9POS SLD CUP

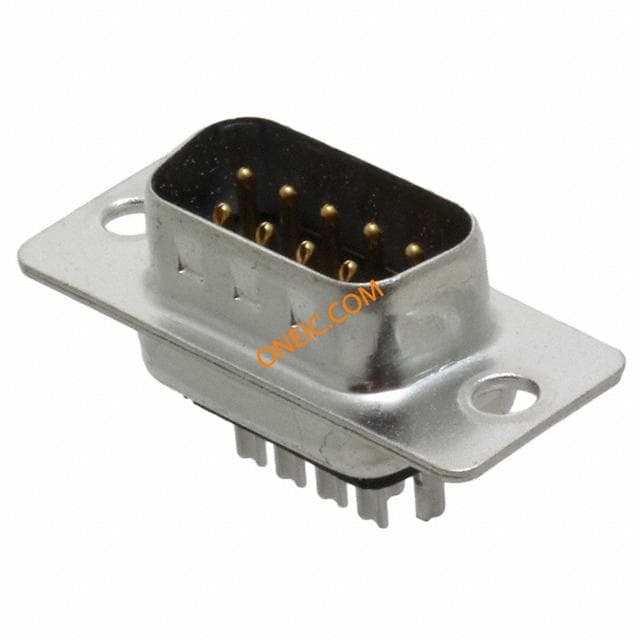

FCE17E09PM290
