点击放大查看

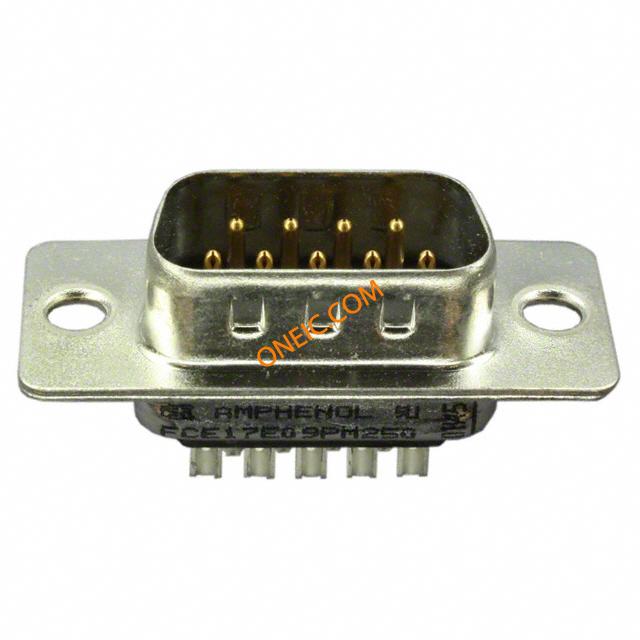

FCE17-E09PM-250
| Manufacturer | |
| Description | D-Sub Standard Connectors D-SUB S/CUP 1000PF FILTER D-SUB 9POS PIN SLD CUP 9w Filter D Solder cup, pins, 1000 pF PLUG, DSUB, 1000PF, STRT, 9WAY Male D-Sub connector 9P, FCE17-E09PM-250, Amphenol Amphenol FCE17 系列 面板安装 DB9 9 路 滤波焊接 D-Sub 连接器 插头 , 5A |
| Category |
商业参数
| 其他名称 | FCE17E09PM250 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 60 | 工厂包装数量 | 60 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
电气参数
| 电容 | :1000pF | 最大额定电流 | 5A |
机械参数
| 颜色 | Black | 深度 | 16.48mm |
| 宽度 | 12.55mm | 长度 | 30.81mm |
| 重量 | 0.006 | 包装方式 | Tray |
| 外壳尺寸 | E | 端接方式 | Solder Cup |
| 触头类型 | Signal | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Panel |
| 排数 | 2 | 连接器样式 | D-Sub |
| 本体材料 | :Metal | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic, Glass Filled | 尺寸/外形 | 30.81 x 12.55 x 16.48mm |
| 端接样式 | Solder Cup | 触点数 | 9 |
| 接触件端接 | :Solder | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | 15µin (0.38µm) |
| 外壳尺寸，连接器布局 | 1 (DE, E) | ||
产品信息
| 连接器性别 | Male | 系列 | :- |
| 产品特性 | Filter, Grounding Indents | ||
环境参数
| 工作温度 | -40°C ~ 85°C | ||
