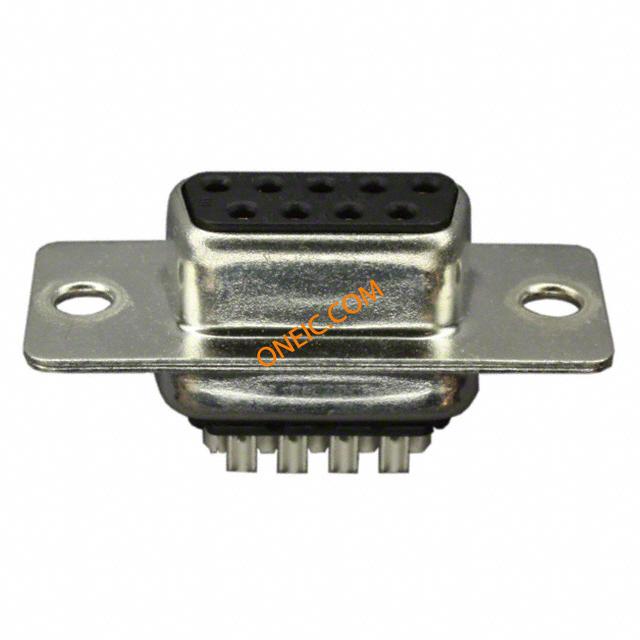

FCE17-E09SM-250
| Manufacturer | |
| Description | D-Sub Standard Connectors .120 9P SOLDER CUP SOCKET 1000 PF FILTER D-SUB 9POS SCKT SLD CUP 9w Filter D, Solder cup,skt 1000pF SOCKET, DSUB, 1000PF, STRT, 9WAY Female D-Sub connector 9P, FCE17-E09SM-250, Amphenol Amphenol FCE17 系列 面板安装 DB9 9 路 滤波焊接 D-Sub 连接器 插座 , 5A |
| Category |
商业参数
| 其他名称 | FCE17E09SM250 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 60 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366990 |
电气参数
| 电容 | :1000pF | 最大额定电流 | 5 A |
机械参数
| 颜色 | Black | 深度 | 16.73mm |
| 间距 | 2.74 mm | 宽度 | 12.55mm |
| 长度 | 30.81mm | 重量 | 0.006 |
| 包装方式 | Tray | 外壳尺寸 | E |
| 端接方式 | Solder Cup | 触头类型 | Signal |
| 安装类型 | Straight | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Panel |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 本体材料 | :Metal |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic, Glass Filled |
| 尺寸/外形 | 30.81 x 12.55 x 16.73mm | 端接样式 | Solder |
| 触点数 | 9 | 接触件端接 | :Solder |
| 位数 | 9 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | 15µin (0.38µm) | 外壳尺寸，连接器布局 | 1 (DE, E) |
产品信息
| 连接器性别 | Female | 系列 | :- |
| 产品特性 | Filter | ||
环境参数
| 工作温度 | - 40 C to + 85 C | ||
