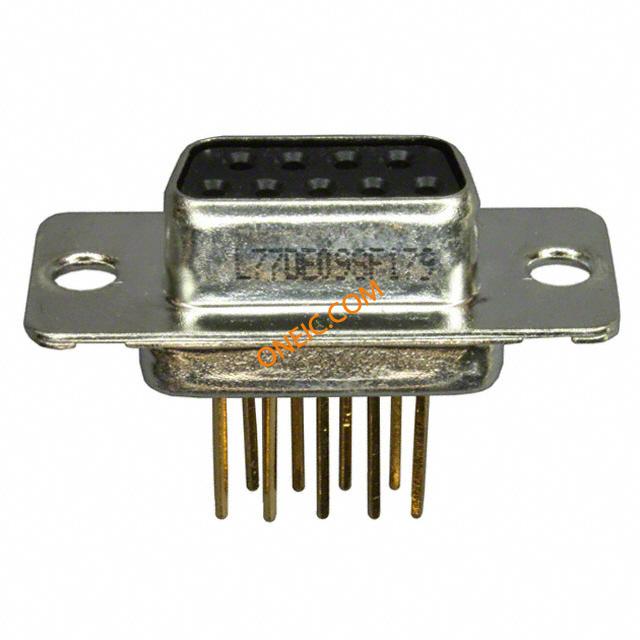

L77DE09SF179
| Manufacturer | |
| Description | CONN D-SUB RCPT 9POS WW GOLD Conn; D-Sub; Socket; 9-Pin; L7 Series; Wire Wrap; Tinned Shell |
| Category |
商业参数
| 标准包装数量 | 50 | ||
合规参数
| RoHS | RoHS Compliant Part | ||
电气参数
| 额定电压 | 300V | 最大额定电流 | 7.5A |
机械参数
| 颜色 | Black | 包装方式 | Tray |
| 端接方式 | Wire Wrap | 触头类型 | Signal |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 排数 | 2 | 连接器样式 | D-Sub |
| 壳体材料 | Thermoplastic, Glass Filled | 位数 | 9 |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 1 (DE, E) |
环境参数
| 工作温度 | -55°C ~ 85°C | ||
Documents & Media
相关型号
L717DE09PU
amphenol canada, corp.
Conn D-Subminiature PIN 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port CONN D-SUB PLUG 9POS GOLD PCB D SUB CONNECTOR, STANDARD, 9POS, PLUG Conn; D-Sub; Plug; 9-Pin; L7 Series; Solder; Tinned Shell
L17DEFRA09P
Amphenol Commercial Products
D-Sub Standard Connectors 9 pin gold flash; male 09P D-SUB MALE FLAT RIBBON D-SUB 9POS PLUG IDC GOLD Flat ribbon IDC D-Sub 9way plug Conn D-Subminiature PIN 9 POS 2.74mm IDT RA Cable Mount 9 Terminal 1 Port Plug; D-Sub; DFR; PIN:9; male; IDC; for ribbon cable; gold flash D-Sub male 9P, L17DEFRA09P, Amphenol Amphenol DFR 系列 2.74mm 节距 9 路 IDC D-Sub 带状电缆连接器, 插头, 钢外壳
L717DE09P
amphenol canada, corp.
Conn D-Subminiature PIN 9 POS Solder Cup ST Panel Mount 9 Terminal 1 Port CONN DSUB PLUG 9POS SLD CUP GOLD D-Sub male 9P, L717DE09P, Amphenol

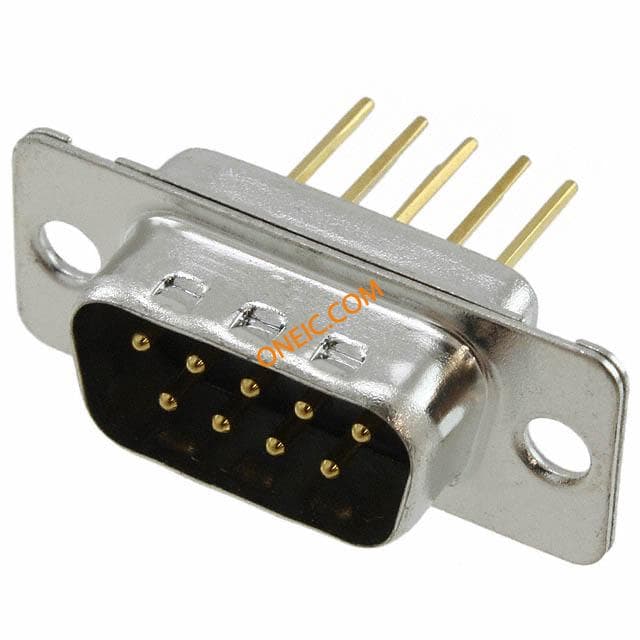

L717DE09PF179
