Business
| Other Names | ACX1835 | Part # Aliases | 319-0296 99H4391 |
| Product Category | RF Adapters - In Series | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Frequency | 0 to 4G | Impedance | 50 Ohm |
| Voltage Rating | 500 V | Conversion Type | Same Series |
| Frequency - Max | 4GHz | Frequency Range | DC to 4 GHz |
Mechanical
| Weight | 0.749924 oz | Diameter | 17.5 |
| Packaging | Bulk | Body Finish | Nickel |
| Orientation | Straight | Weight (g): | 22.00000 |
| Body Material | Brass | Mounting Type | Panel Mount |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Connector Type | :Intra Series Coaxial | Contact Finish | Gold |
| Housing Finish | Nickel | Plating - Body | Nickel |
| Connector Usage | Bayonet | Contact Material | Phosphor Bronze |
| Housing Material | Brass | Length - Overall | 39.6 |
| Primary Material | Adapter | Dielectric Material | Polyoxymethylene (POM) Acetal |
| Insulation Material | Delrin | 1st Connector Gender | Jack (Female) |
| 2nd Connector Gender | Jack (Female) | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Supplier Device Package | Bulkhead |
| 1st Connector Mounting Type | Normal | 1st Connector Mounting Feature | :Jack |
| 2nd Connector Mounting Feature | Normal | ||
Product Info
| Type | BNC Adapter | Style | Straight |
| Gender | RCP/RCP | Adapter Type | Jack to Jack |
| Center Gender | Female to Female | Adapter Series | BNC to BNC |
| RF Family/Standard | BNC | Application Specifics | True MIL |
| Convert To (Adapter End) | BNC Jack, Female Socket | Convert From (Adapter End) | BNC Jack, Female Socket |
Documents & Media
Similar Parts

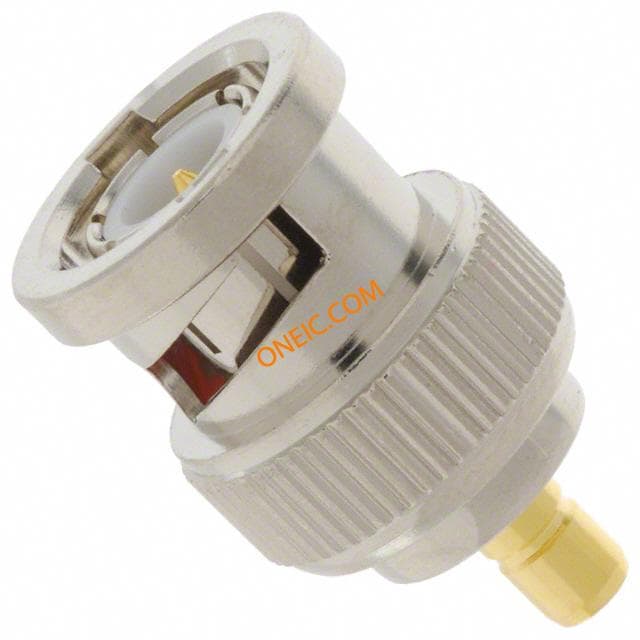

242184
amphenol connex
$164.2276
Details

31-220H
Amphenol RF
$65.6785
Details

31-315
Amphenol RF
$36.9235
Details

112433
Amphenol Connex
$25.2960
Details

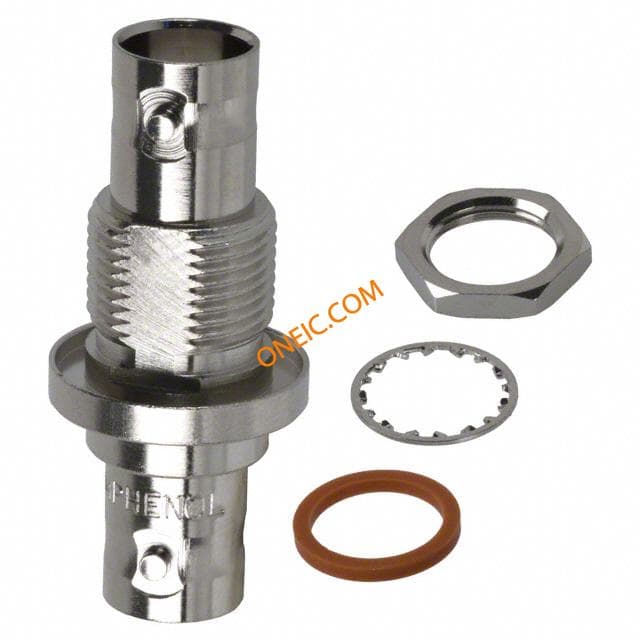

31-220G-RFX
Amphenol RF
$25.3140
Details

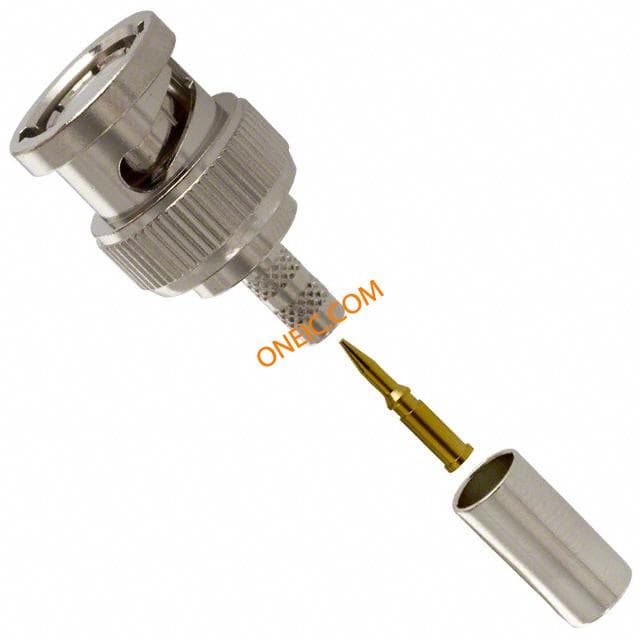

31-320-RFX
Amphenol RF
$13.1580
Details

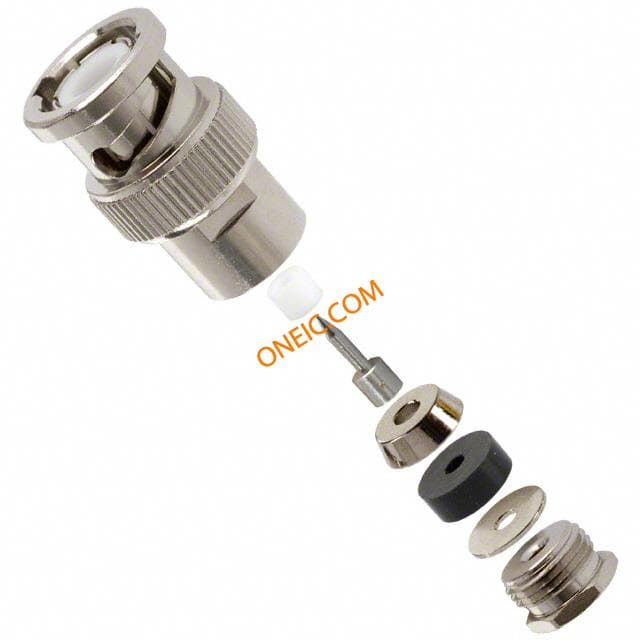

15875
Amphenol RF
$37.3320
Details

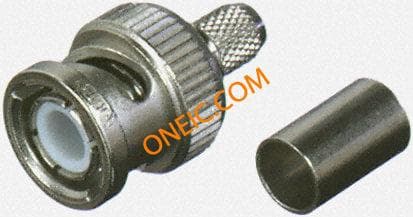

B1121E1-ND3G-5-50
Amphenol
$19.1352
Details

B1141C1-NT3G-5-50
Amphenol
$29.8928
Details

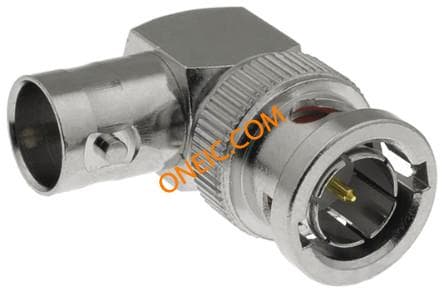

B5072A1-ND3G-50
