57102-F08-02LF
| Manufacturer | |
| Description | 4 Positions Header, Unshrouded Connector 0.079" (2.00mm) Through Hole Gold |
对参数有疑问？问 AI 助手
Specifications
| Mfr | Amphenol ICC (FCI) | Style | Board to Board |
| Series | Minitek® 2.00mm | Features | - |
| Packaging | Box | Shrouding | Unshrouded |
| Part Status | Active | Termination | Solder |
| Applications | - | Contact Type | Male Pin |
| Contact Shape | Square | Mounting Type | Through Hole |
| Connector Type | Header | Fastening Type | Push-Pull |
| Number of Rows | 2 | Pitch - Mating | 0.079" (2.00mm) |
| Voltage Rating | 200V (AC/DC) | Contact Material | Copper Alloy |
| Insulation Color | Black | Insulation Height | 0.059" (1.50mm) |
| Ingress Protection | - | Base Product Number | 57102 |
| Insulation Material | Thermoplastic | Number of Positions | 4 |
| Row Spacing - Mating | 0.079" (2.00mm) | Contact Finish - Post | Tin |
| Contact Length - Post | 0.118" (3.00mm) | Current Rating (Amps) | 2A (AC/DC) |
| Operating Temperature | - | Mated Stacking Heights | - |
| Overall Contact Length | 0.335" (8.51mm) | Contact Finish - Mating | Gold |
| Contact Length - Mating | 0.157" (4.00mm) | Number of Positions Loaded | All |
| Material Flammability Rating | UL94 V-0 | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | Flash | ||
Documents & Media
Similar Parts

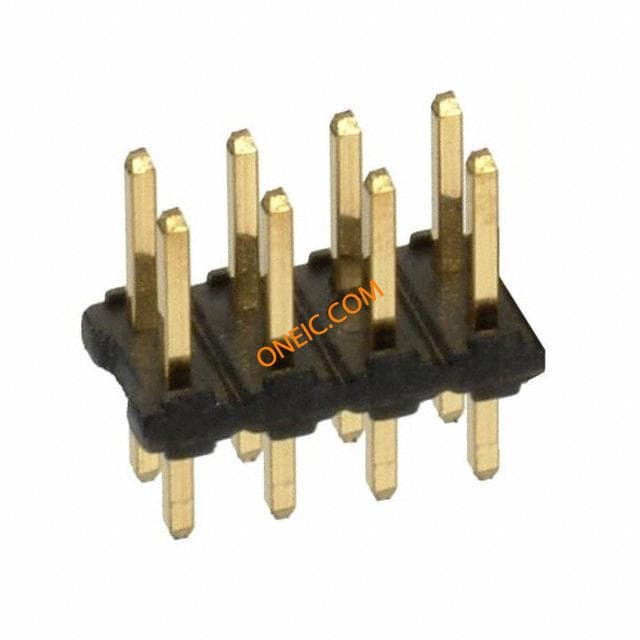

M22-2020405
