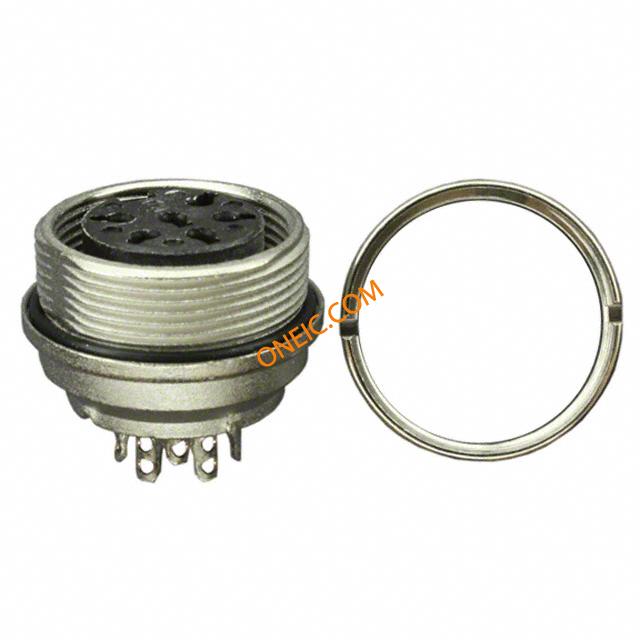

C091 31G006 100 2
| Manufacturer | |
| Description | Circular DIN Connectors Female recpt Rear MT CONN FEMALE RCPT 6POS REAR MT C091D Rear Panel Mount 6 way skt Solder connector, circ din, femal panel recept, rear mt, 6din silver pltd socket cont, ip67 Amphenol C 091 D 系列 6路 面板安装 直向 连接器 插座 , 母触点, 螺钉固定接合 |
| Category |
商业参数
| 零件号别名 | 100 2 31G006 C091 U | 产品类别 | Circular DIN Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Compliant | 认证机构标志 | UL Recognized |
| 材料阻燃等级 | UL94-V0 | ||
电气参数
| 额定电压 | 300V | 供电电压 | DIN |
| 最大额定电流 | 5A | ||
机械参数
| 外形尺寸(长x宽) | 20mm | 包装方式 | Bulk |
| 出线方向 | Yes | 外壳尺寸 | 20mm |
| 导线线规 | 20 AWG | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder Cup |
| 触头类型 | Socket | 安装类型 | Panel Mount |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Silver |
| 紧固类型 | Threaded | 外壳涂层 | Nickel |
| 封装形式 | Metal | 连接器用途 | Screw On |
| 壳体材料 | Metal | 主要材料 | DIN |
| 端接排数 | 焊接 | 端接样式 | Solder |
| 第一触头极性 | Female | 触点数 | 6 |
| 介电材料 | Thermoplastic | 位数 | 6 |
| 外壳尺寸-插件 | DIN (240 Degree) | 外壳材料及表面处理 | Die Cast, Nickel Plated |
| 静电放电屏蔽 | 是 | ||
产品信息
| 类型 | Panel Socket | 连接器性别 | Female |
| 系列 | C 091 D | 产品特性 | Shielded |
| 制造商全称 | C091-D Series | 产品子类型 | Connectors |
| 射频系列/标准 | C091D | ||
环境参数
| 密封等级 | IP67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| 工作温度 | -40°C ~ 100°C | ||
