97-3102A-18-16P
| Manufacturer | |
| Description | Conn MIL-C-5015 Circular PIN 1 POS Solder ST Box Mount 1 Terminal 1 Port CONN RECEPT BOX MNT 1POS W/PINS connector;metal circ;box recept;size 18;1 #12 solder pin contact;olive drab Circular MIL Spec Connector 1P Sz 18 Box Mount Pin Recept Solder connector, metal circ, box recept, size 18, 1 #12 solder pin contact, olive drab |
| Category |
Business
| Other Names | 10-820050-16P | Product Category | Circular MIL Spec Connector |
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL Type | MIL-DTL-5015 |
| Approval Agency Marking | UL/CSA | ||
Electrical
| Voltage Rating | 3000VAC, 4200VDC | Current Rating (Max) | 23A |
Mechanical
| Packaging | Bulk | Cable Exit | Solid |
| Shell Size | 18 | Wire Gauge | 12-14 |
| Orientation | N (Normal) | Shell Style | Box Mount |
| Termination | Solder | Contact Type | Pin |
| Mounting Type | Box Mount | Shell Plating | Olive Drab Chromate over Cadmium |
| Angle of Throw | Straight | Connector Type | Receptacle, Male Pins |
| Contact Finish | Silver | Fastening Type | Threaded |
| Housing Finish | Olive Drab Cadmium | Mounting Style | Panel |
| Package / Case | Metal | Shell Material | Aluminum Alloy |
| Connector Usage | Threaded | Insertion Angle | 18-1 |
| Housing Material | Aluminum Alloy | Primary Material | 5015 Commercial |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 10 | Dielectric Material | Diallyl-Phthalate |
| Number of Positions | 1 | Shell Size - Insert | 18-16 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Olive Drab Cadmium Plated |
| Contact Layout, Typical | 1#12 | ||
Product Info
| Type | MIL-C-5015 Circular | Class | A |
| Gender | RCP | Series | 97 |
| Manufacturer | 97 Series | Product Type | Receptacles |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
97-3106A-18-16S
amphenol
Conn MIL-C-5015 Circular SKT 1 POS Solder ST Cable Mount 1 Terminal 1 Port CONN PLUG 1POS W/SOCKETS connector;metal circ;straight plug;size 18;1 #12 solder socket cont;olive drab CIRCULAR CONNECTOR ((NW)) connector, metal circ, straight plug, size18, 1 #12 solder socket cont, olive drab

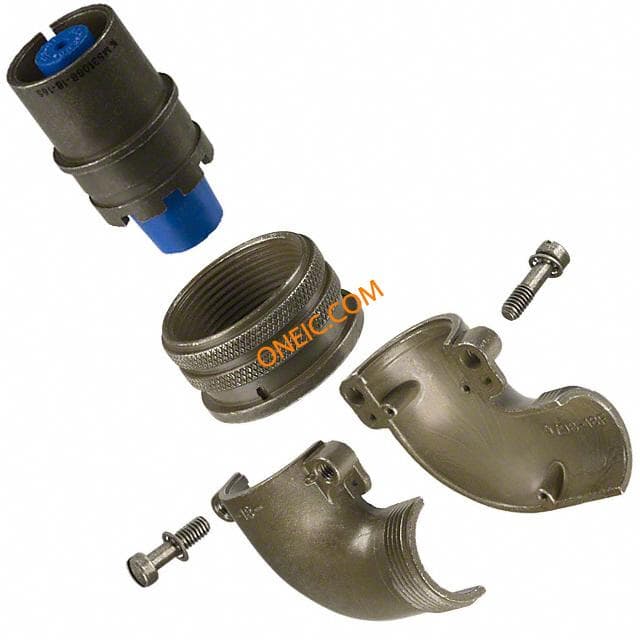

97-3108B-18-16S
amphenol
Conn MIL-C-5015 Circular SKT 1 POS Solder RA Cable Mount 1 Terminal 1 Port CONN PLUG RT ANG 1POS W/SOCKETS connector;metal circ;rt angle plug;size 18;1 #12 solder socket cont;olive drab Circular MIL Spec Connector 1P Size 18 Solder R/A Socket Plug connector, metal circ, rt angle plug, size18, 1 #12 solder socket cont, olive drab
97-60-18
amphenol
Connector Accessories Metal Protection Cap Bead Chain For Receptacle CONN CAP FOR SIZE 18 RCPT Chassis mount plug&skt dust cap,Size 18 Circular MIL Spec Tools, Hardware & Accessories RECPT. CAP 18 connector accessory, metal prot cap w/bead chain, for size 18 recept, olive drab Amphenol 97 系列 MIL-DTL-5015 插头 IP66 防尘盖, 尺寸18, 橄榄镉表面
